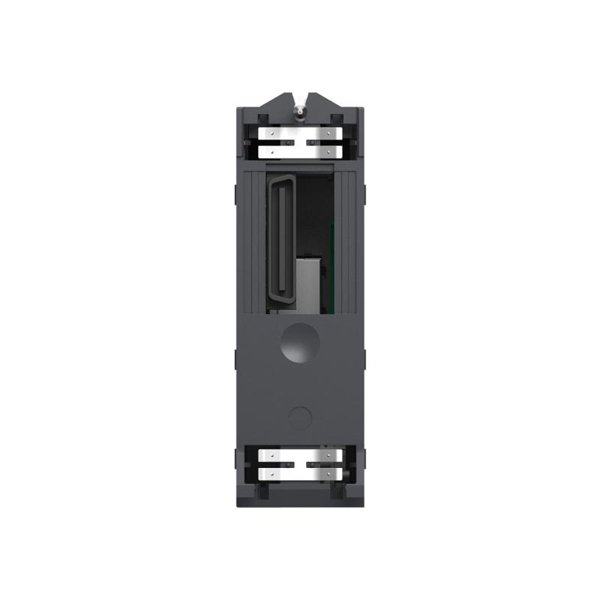

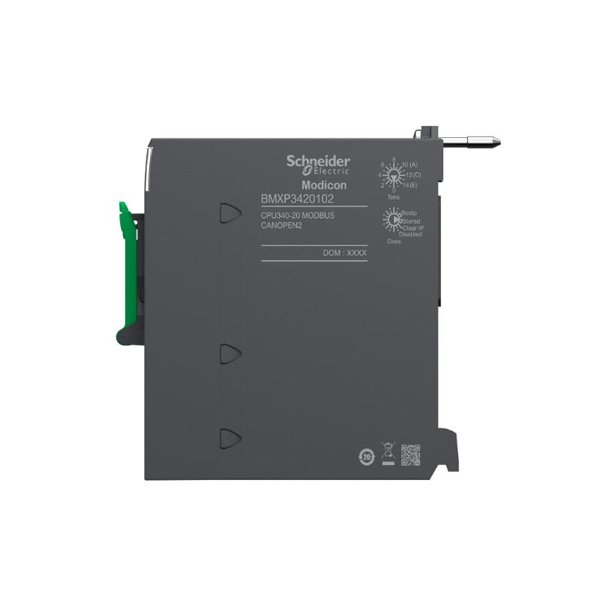

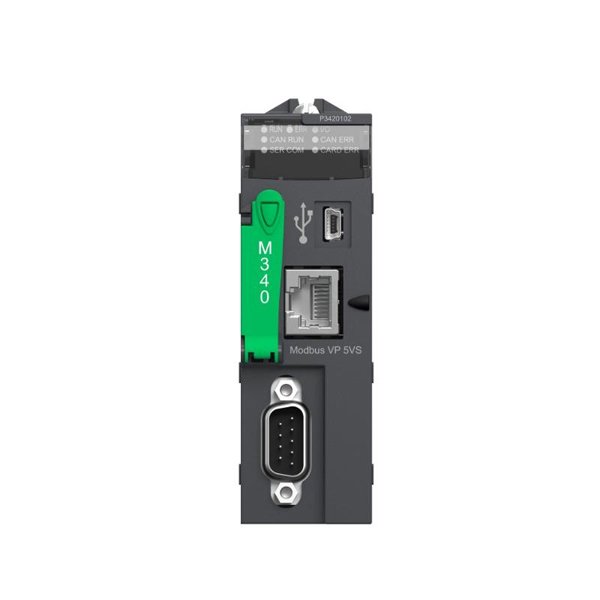

The Schneider BMXP342010 is a high-performance processor module from Schneider Electric’s Modicon M340 PLC family, designed to provide robust automation solutions in a wide range of industrial applications. With its compact form factor and powerful processing capabilities, the BMXP342010 supports multiple communication protocols and offers excellent integration capabilities for modern control systems.

This processor is ideal for applications requiring high reliability, modular flexibility, and tight control over distributed systems. Built with industrial-grade resilience and equipped with a suite of diagnostics and programmability tools, the BMXP342010 serves as a reliable brain for mid-sized automation tasks. The module seamlessly integrates with various Schneider I/O units and supports Unity Pro software for programming and configuration.

Product Specifications

Product Applications

The Schneider BMXP342010 processor module is designed for medium-sized automation systems across a range of industries. Typical applications include:

• Manufacturing Automation: Packaging lines, assembly automation, process interlocks.

• Water and Wastewater Management: Pump station control, water treatment monitoring.

• Energy Management: Substation automation, energy metering integration.

• Building Management Systems: HVAC control, lighting automation.

• Infrastructure and Transport: Intelligent traffic control systems, tunnel automation.

• Food and Beverage Industry: Batch processing, mixing control, bottling lines.

Its ability to interface with numerous field devices via various communication protocols makes it a preferred choice in integrated, distributed control systems.

Product Advantages

• High-Speed Processing: The 66 MHz CPU and multi-tasking capabilities ensure real-time response.

• Modular Architecture: Flexible hardware configuration allows customization according to project size and complexity.

• Compact Design: Space-saving installation in tight control cabinets.

• Robust Communication: Supports Ethernet, Modbus, and USB out of the box for seamless network integration.

• User-Friendly Programming: Compatible with Unity Pro and EcoStruxure Control Expert software.

• Diagnostic Tools: Built-in LED indicators and diagnostics simplify troubleshooting and maintenance.

• Scalability: Supports multiple expansion racks and modules to grow with your system.

• High Reliability: Industrial-grade design ensures stable operation in harsh environments.

Frequently Asked Questions (FAQ)

1. What programming software is compatible with BMXP342010?

   It is compatible with Unity Pro and EcoStruxure Control Expert.

2. Can BMXP342010 be used in redundant systems?

   Yes, it can be integrated into redundancy solutions depending on system design and architecture.

3. Is the BMXP342010 hot-swappable?

   The processor itself is not hot-swappable, but it supports hot-swappable I/O with proper modules.

4. Does it support Ethernet communication natively?

   Yes, it includes an embedded Ethernet port (RJ45) for Ethernet/IP and Modbus TCP/IP.

5. How many I/O points can it control?

   It supports up to 1024 I/O points depending on the configuration.

6. Can I use BMXP342010 with SCADA systems?

   Yes, through supported OPC servers and standard protocols like Modbus TCP/IP.

7. What is the power supply requirement?

   It operates with a 24 VDC power supply.

8. Is this CPU module compatible with older Modicon systems?

   Compatibility depends on the I/O and backplane used; integration with legacy systems may require adapters or firmware updates.

9. What are the installation options for BMXP342010?

   It can be installed on a DIN rail or directly on a panel.

10. What diagnostic features does it have?

    It provides LED status indicators, onboard diagnostics, and software monitoring tools for troubleshooting.
