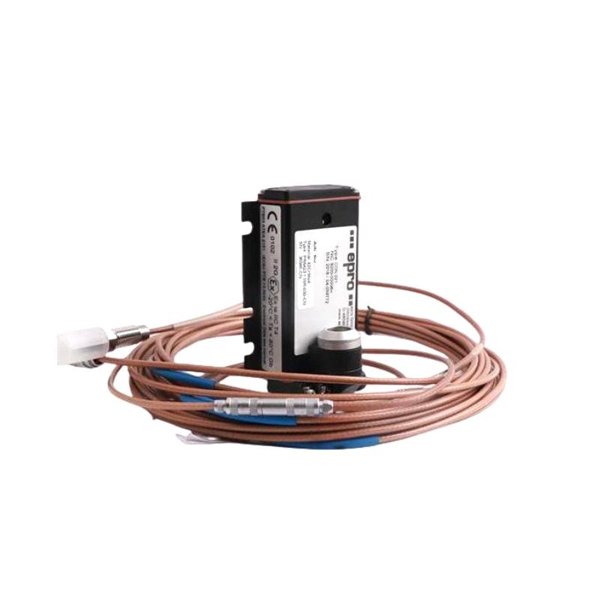

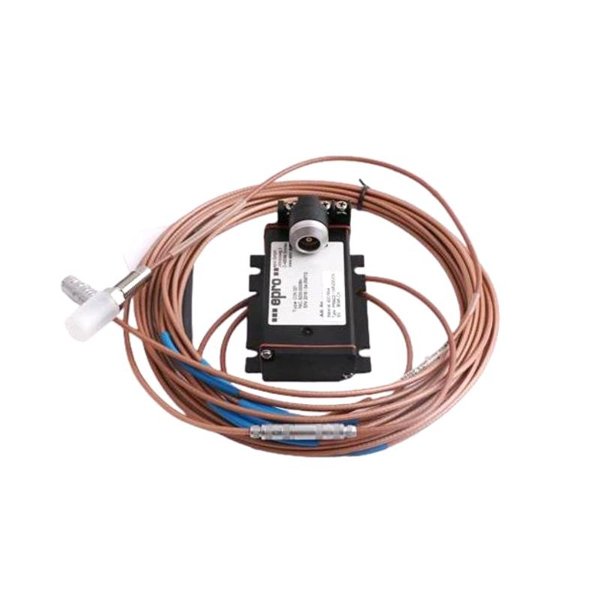

The Epro PR6423/10R-030-CN+CON021 8mm Eddy Current Sensor is an advanced, non-contact measuring instrument designed for high-precision displacement, position, and distance measurement. Based on the eddy current principle, it provides reliable and accurate measurements in demanding environments where mechanical contact-based measurement systems would wear out or fail.

This particular model, with its 8mm measurement range, is suited for applications requiring fine measurement resolution, such as in industrial machinery monitoring, vibration analysis, and aerospace testing. The PR6423/10R-030-CN+CON021 is also equipped with an additional CON021 interface, which offers increased versatility and enhanced connectivity, allowing it to seamlessly integrate into various monitoring and automation systems.

The sensor’s robust construction and the combination of high accuracy with durable materials make it ideal for a wide range of industries, including automotive manufacturing, aerospace, power generation, and heavy machinery. This model provides the precision needed to monitor the conditions of critical components in real-time and ensure the efficient operation of machinery and systems.

Product Specifications

The following table outlines the key specifications of the Epro PR6423/10R-030-CN+CON021 8mm Eddy Current Sensor:

Applications

The Epro PR6423/10R-030-CN+CON021 8mm Eddy Current Sensor finds applications in several demanding industries where high precision and non-contact measurements are required:

1. Machinery Vibration Monitoring: Commonly used to monitor vibrations in rotating machinery, such as motors, turbines, and pumps, helping to detect early signs of wear or imbalance.

2. Position and Displacement Measurement: Ideal for measuring the position of moving parts in automation systems, robotic arms, and other precision equipment.

3. Condition Monitoring: Used in predictive maintenance systems to monitor the health of mechanical systems and prevent costly downtime.

4. Automotive Testing: Ensures precise measurements of critical components in automotive manufacturing, such as engine parts, suspension components, and other precision elements.

5. Aerospace Applications: Used to measure the displacement of components in aerospace systems where high precision and reliability are paramount.

6. Power Generation Systems: The sensor helps monitor turbine shafts and other critical components in power plants, ensuring their safe and efficient operation.

With its compact size and robust design, the sensor excels in tight spaces and harsh environments, delivering high-precision data that is critical for machinery health and safety.

Advantages

The Epro PR6423/10R-030-CN+CON021 8mm Eddy Current Sensor offers numerous advantages for industrial applications:

1. Non-contact Measurement: The sensor operates without physical contact, which eliminates wear and tear and ensures longevity in industrial environments.

2. Highly Accurate: Provides accurate readings with an accuracy of ±0.2mm, making it ideal for high-precision tasks such as vibration monitoring and position sensing.

3. Durable and Robust: Designed with a stainless steel housing and an IP67 protection class, the sensor is highly resistant to dust, moisture, and harsh industrial conditions.

4. Versatile Output Options: The sensor can output analog signals (0-10V or 4-20mA), making it easily integratable with various monitoring systems.

5. Compact and Lightweight: weight of 0.22 kg, it is well-suited for applications with limited space and for installations in tight areas.

6. Fast Response Time: The sensor operates with high-frequency responses, up to 1 kHz, which makes it suitable for real-time monitoring of dynamic movements.

7. Easy Integration with CON021 Interface: The included CON021 interface enhances its integration capability, making it compatible with modern automation and monitoring systems.

8. Temperature Resistant: It operates efficiently within a wide temperature range of -20°C to +85°C, making it suitable for various environments.

9. Long-Term Reliability: With high protection and accuracy, this sensor provides long-term, stable performance in critical systems.

These benefits make the Epro PR6423/10R-030-CN+CON021 sensor a perfect solution for industries demanding high accuracy, durability, and real-time performance.

Frequently Asked Questions (FAQ)

1. What is the measurement range of the Epro PR6423/10R-030-CN+CON021?

   • The sensor has an 8mm measurement range.

2. What types of outputs does the sensor provide?

   • It provides analog outputs including 0-10V and 4-20mA.

3. Can the sensor be used in harsh industrial environments?

   • Yes, it has an IP67 protection class, making it dust-tight and water-resistant, ideal for harsh environments.

4. What is the accuracy of this sensor?

   • The accuracy is ±0.2mm.

5. What is the operating temperature range of this sensor?

   • It operates in temperatures ranging from -20°C to +85°C.

6. What industries can benefit from using this sensor?

   • This sensor is suitable for industries such as automotive manufacturing, aerospace, power generation, and machinery monitoring.

7. How is this sensor mounted?

   • The sensor features a threaded mounting design for easy installation.

8. Does the sensor support real-time monitoring?

   • Yes, with a frequency response of up to 1 kHz, the sensor is ideal for real-time applications.

9. What is the power supply required for the sensor?

   • The sensor requires a 24V DC power supply.

10. Can this sensor be used for vibration monitoring?

• Yes, it is commonly used for monitoring vibrations in industrial machinery to prevent failures.
