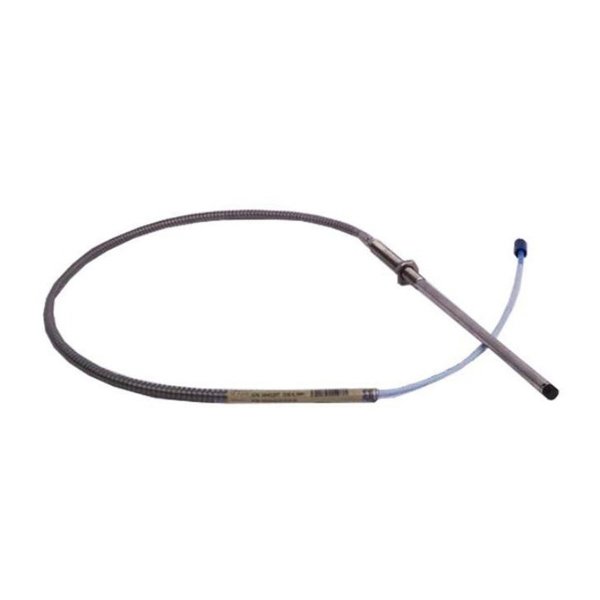

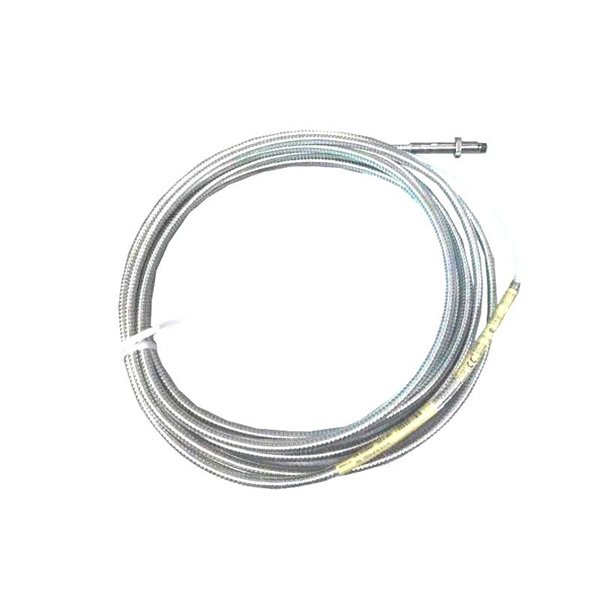

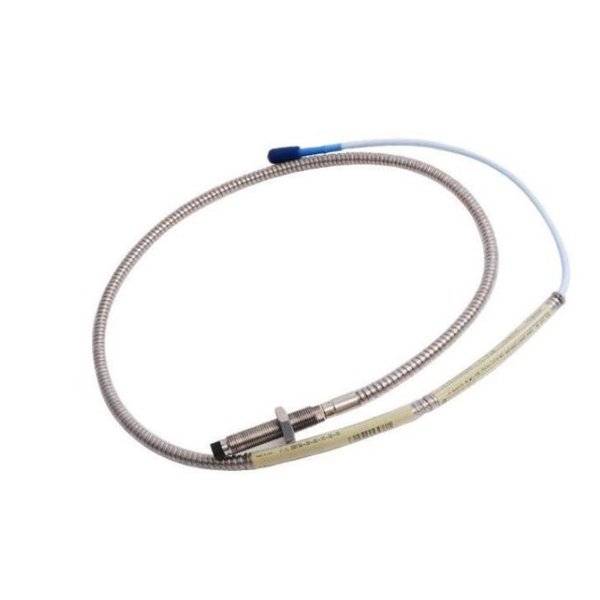

The Bently Nevada 330104-00-07-90-02-05 is a high-performance 3300 XL 8 mm Proximity Probe with a robust M10x1 thread and armored cable. It measures the distance between the probe tip and a conductive surface, providing accurate static (position) and dynamic (vibration) measurements. This probe is part of the 3300 XL 8 mm Proximity Transducer System, designed for fluid-film bearing machinery, keyphasor reference, and speed monitoring, offering excellent linearity, reliability, and compliance with API 670 standards.

Technical Specifications

Applications

• Vibration and position monitoring on rotating equipment.

• Keyphasor signal and speed measurement.

• Use in harsh environments with high temperatures or oil ingress risk.

• Suitable for installations requiring API 670 compliance.

Advantages

• Full compliance with API 670 for linearity and accuracy.

• Backward compatible with non-XL 3300 8 mm systems.

• Highly resistant to RFI/EMI, ideal for fiberglass enclosures.

• Patented TipLoc and CableLoc for enhanced durability.

• Armor and FluidLoc options prevent oil leakage and mechanical damage.

• SpringLoc terminals for quick and reliable wiring.

FAQ

Q1: What is the main function of the 330104 probe?

A1: It measures both position and vibration of rotating machinery with high precision.

Q2: Is this probe compatible with older Bently Nevada systems?

A2: Yes, it is backward compatible with non-XL 3300 8 mm systems.

Q3: What is the recommended gap setting?

A3: Approximately 1.27 mm (50 mils) at -9 VDC.

Q4: Does it comply with API 670 standards?

A4: Yes, it fully complies with API 670 mechanical and performance requirements.

Q5: What is the operating temperature range of the probe?

A5: Standard: -52°C to +177°C, Extended: up to +218°C for the probe tip.

Q6: What material is used for the probe tip?

A6: The probe tip is molded from PPS for durability.

Q7: Is the cable armored?

A7: Yes, this model includes an armored cable for additional mechanical protection.

Q8: How is the connection secured?

A8: With ClickLoc connectors that are finger-tight with a locking mechanism.

Q9: Does it support extended lengths?

A9: Yes, this model is a 9-meter probe designed for 9-meter Proximitor systems.

Q10: What is the weight of the complete probe?

A10: Approximately 2.907 kg.
