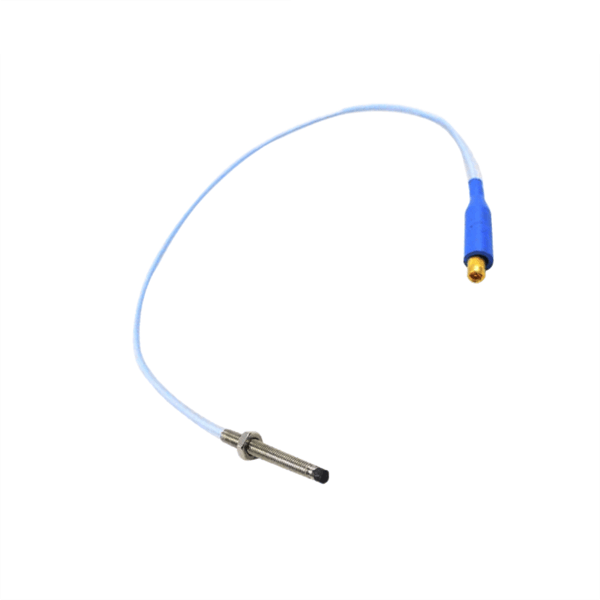

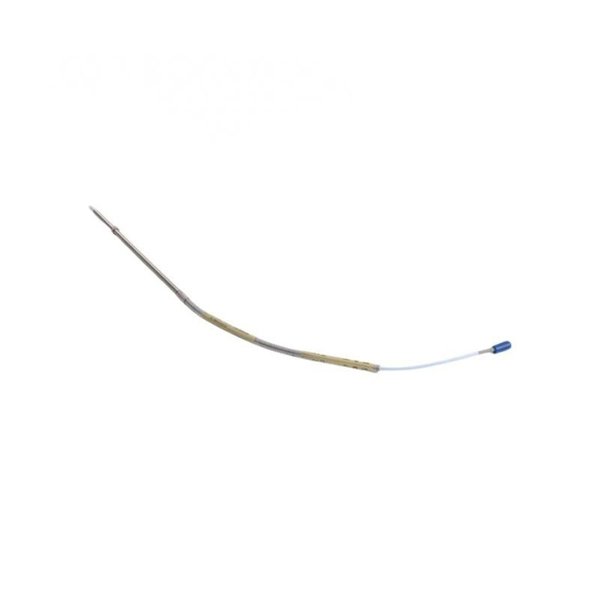

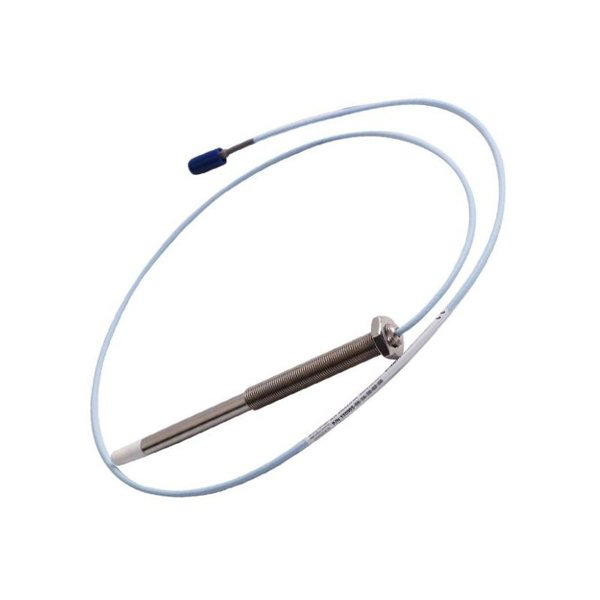

Bently Nevada 330906-02-12-10-02-00 3300 NSv Reverse-Mount Proximity Probe

The Bently Nevada 330906-02-12-10-02-00 is a high-performance 3300 NSv reverse-mount proximity probe designed for shaft vibration and position monitoring in installations with space constraints requiring backward-facing sensor placement. With a total length of 1 meter and robust construction, this probe is engineered to provide precise, reliable measurements of shaft displacement in demanding industrial environments. Its reverse-mount design allows it to fit into tight or complex machinery configurations where conventional forward-mount probes cannot be installed.

This probe utilizes eddy current sensing technology to deliver accurate, non-contact measurements critical for machinery protection systems. With a shipping weight of 1.5 kg, the probe reflects a sturdy build designed to withstand harsh operating conditions, including high temperatures, vibration, and exposure to contaminants. It is widely used in power generation, oil and gas, petrochemical, and heavy industries where machine uptime and condition monitoring are vital.

Product Parameters

Product Applications

The 330906 reverse-mount probe is optimized for real-time monitoring of shaft displacement and vibration in equipment where installation space is limited or probe orientation needs to be reversed. Key applications include:

• Gas and Steam Turbines: Monitoring shaft position in turbines with complex housing or restricted axial space.

• Compressors: Installed in compact or confined areas requiring reverse-facing sensor placement.

• Gearboxes: Allows vibration measurement in tightly packed gear assemblies with limited probe clearance.

• Turboexpanders: Suitable for high-speed rotating equipment with unique geometric constraints.

• Pumps and Motors: Enables precise condition monitoring where conventional probe installation is impractical.

• OEM Machinery: Supports original equipment manufacturers in integrating sensors into custom or space-limited designs.

Product Advantages

• Reverse-Mount Design: Enables measurement in difficult-to-access or space-constrained locations, expanding application versatility.

• High Accuracy: Provides precise displacement measurement within a ±0.127 mm linear range.

• Rugged Construction: Stainless steel housing and hermetic sealing ensure durability in harsh, industrial environments.

• Industry Compliance: Fully meets API 670 and IEC standards for vibration monitoring and machine protection.

• Wide Temperature Range: Operates reliably from –35°C up to +175°C without degradation in performance.

• Flexible Installation: Integral cable with connector options supports a variety of field wiring scenarios.

• Robust Build: Weighing 1.5 kg, the probe is designed for long service life and stable performance.

• Seamless Compatibility: Easily integrates with Bently Nevada 3300 NSv monitoring systems for consistent diagnostics.

• Low Maintenance: Hermetic sealing protects internal components, reducing service needs.

• Trusted Brand: Bently Nevada’s extensive experience ensures proven reliability and global support.

Frequently Asked Questions (FAQ)

Q1: What is the key feature of the 330906-02-12-10-02-00 probe?

A1: It is a reverse-mount proximity probe designed for installations where the sensor tip faces backward, allowing use in tight or unconventional spaces.

Q2: What is the total length and shipping weight of the probe?

A2: The total length is 1.0 meter and the shipping weight is 1.5 kg.

Q3: What diameter and thread size does the probe have?

A3: The probe tip diameter is 12 mm and the thread size is M12 x 1.5.

Q4: What is the measurement range and sensitivity?

A4: It offers a ±0.127 mm linear range with a sensitivity of approximately 7.87 mV/μm.

Q5: Can this probe operate in high temperature environments?

A5: Yes, it is rated for temperatures from –35°C up to +175°C.

Q6: Is it compatible with existing Bently Nevada 3300 NSv systems?

A6: Yes, it integrates seamlessly with 3300 NSv drivers and extension cables.

Q7: What environments is this probe suited for?

A7: It is designed for harsh industrial environments including oil & gas, power plants, and petrochemical facilities.

Q8: Does the reverse mount affect measurement accuracy?

A8: No, the reverse mount is purely a physical configuration; accuracy remains unaffected.

Q9: How is the probe connected in the field?

A9: It features an integral cable with various connector and extension options for flexible installation.

Q10: What standards does the probe meet?

A10: It complies with API 670 and IEC vibration monitoring standards.
