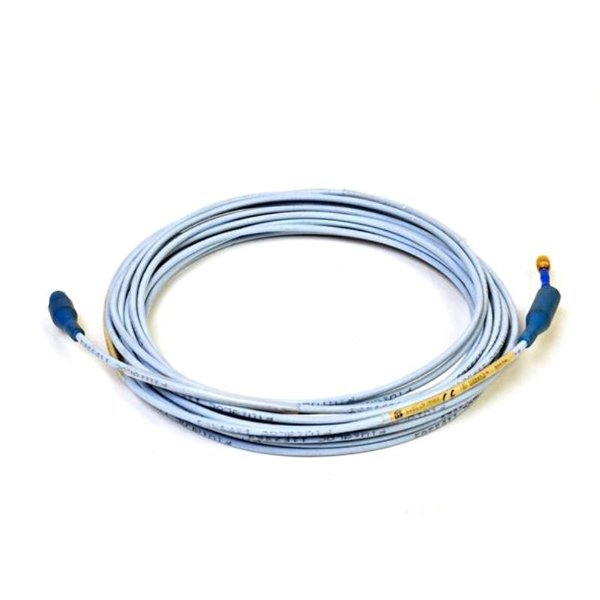

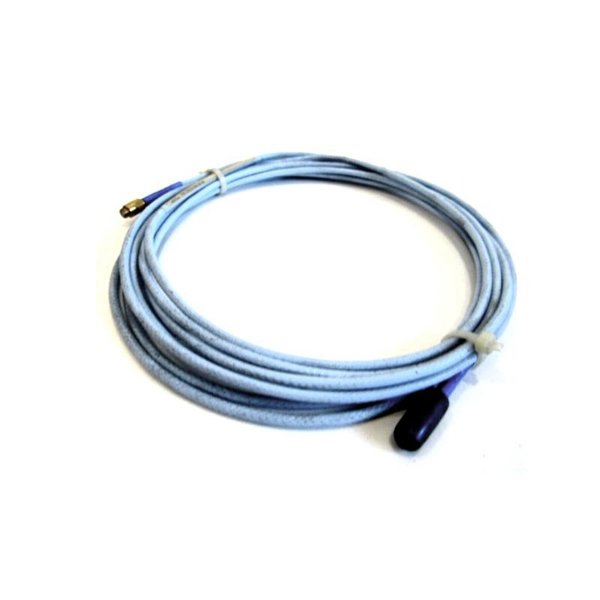

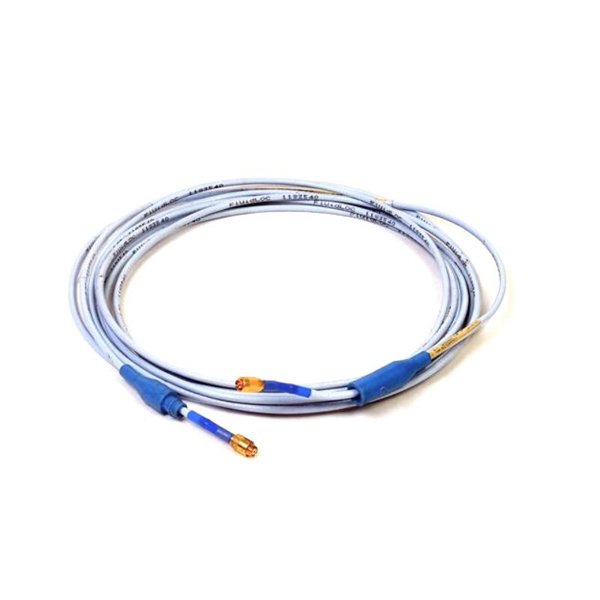

Bently Nevada 330130-080-02-05 3300 XL Standard Extension Cable

The Bently Nevada 330130-080-02-05 3300 XL Standard Extension Cable is a crucial accessory designed for extending the reach of 3300 XL proximity probes used in rotating machinery condition monitoring. This high-quality extension cable enables flexibility in installation by allowing proximity probes to be placed further from the monitoring system without compromising the integrity or reliability of the transmitted signals.

The 3300 XL series is renowned for its precision and durability in industrial environments, particularly in monitoring vibration and shaft displacement in machinery such as turbines, compressors, and pumps. The extension cable ensures that the probes can be positioned at optimal locations for accurate measurements, even when the equipment needs to be placed in hard-to-reach or confined spaces.

Designed for high performance, the 330130-080-02-05 extension cable maintains signal strength and data accuracy over long distances, making it an essential component for continuous monitoring in predictive maintenance systems. It is particularly valuable in industries that rely on machinery uptime, such as power generation, oil and gas, mining, and manufacturing.

Product Specifications

Product Applications

The Bently Nevada 330130-080-02-05 3300 XL Standard Extension Cable is designed for use in a variety of industrial applications where proximity probes need to be placed away from the monitoring system. Here are some of its key applications:

• Proximity Probe Extension: The cable allows the proximity probes to be extended to difficult-to-reach machinery or to cover larger distances without losing signal integrity.

• Condition Monitoring: It enables condition monitoring by extending the range of the probes, allowing them to monitor vibration and displacement in remote machinery locations.

• Predictive Maintenance: Helps integrate proximity probes into predictive maintenance systems by ensuring consistent data transfer over longer cable lengths.

• Rotating Machinery Monitoring: Commonly used to monitor rotating machinery such as motors, turbines, and compressors to detect signs of wear, imbalance, and misalignment.

• Power Generation: In power plants, the extension cable is used to position probes in areas such as turbines and generators, ensuring reliable condition monitoring of vital equipment.

• Oil & Gas: The cable is used in oil rigs, compressors, and pumps to ensure the integrity of equipment, preventing costly breakdowns and downtime.

• Water Treatment Plants: Used to extend probes to key equipment like motors and pumps, enabling continuous monitoring and efficient plant operations.

• Manufacturing: Ensures effective monitoring of rotating machines in factories to help maintain efficient production processes and avoid unexpected downtimes.

Product Advantages

• Extended Reach: The 3300 XL extension cable allows for flexible installation by extending the range of the probes, enabling them to be placed further from the monitoring equipment without signal degradation.

• Signal Integrity: The cable maintains high-quality, reliable signal transmission over longer distances, ensuring accurate monitoring and measurement of machinery.

• Durability: Constructed with thermoplastic elastomer insulation, the cable is highly durable and can withstand harsh industrial conditions such as temperature fluctuations, moisture, and dust.

• Wide Temperature Range: The cable operates efficiently within a wide temperature range of -40°C to +120°C, making it suitable for use in both hot and cold industrial environments.

• Compatibility: Fully compatible with 3300 XL proximity probes, the cable can be easily integrated into existing monitoring systems, ensuring seamless operation and installation.

• Compact Design: The cable has a compact 10mm diameter, making it easy to install in tight spaces without compromising performance.

• Environmental Protection: Rated IP65, the extension cable is water-resistant and dustproof, making it suitable for outdoor and industrial applications.

• Cost-Effective: By providing the flexibility to place proximity probes in optimal positions, the extension cable reduces the need for additional equipment, offering a cost-effective solution for machinery monitoring.

• Long Lifespan: Designed for long-term use, the cable is resistant to wear and tear, reducing the frequency of replacements and maintenance costs.

• High Voltage Rating: With a 500 V DC voltage rating, the cable is safe for use in high-voltage applications, providing protection and reliability in demanding environments.

Frequently Asked Questions (FAQ)

1. Q: What is the length of the Bently Nevada 330130-080-02-05 extension cable?

   A: The extension cable is 8 meters in length.

2. Q: What is the temperature range for the 3300 XL extension cable?

   A: The cable operates in a temperature range from -40°C to +120°C.

3. Q: What type of insulation does the 3300 XL extension cable have?

   A: The extension cable is insulated with thermoplastic elastomer, providing durability and flexibility.

4. Q: How many conductors are in the 3300 XL extension cable?

   A: The cable has 2 conductors suitable for 2-wire proximity probe connections.

5. Q: Is the 3300 XL extension cable compatible with all Bently Nevada proximity probes?

   A: Yes, the cable is fully compatible with all 3300 XL proximity probes from Bently Nevada.

6. Q: What is the outer diameter of the extension cable?

   A: The outer diameter of the extension cable is approximately 10 mm.

7. Q: What is the weight of the 3300 XL extension cable?

   A: The extension cable weighs 0.272 kg.

8. Q: Is the 3300 XL extension cable suitable for high-voltage applications?

   A: Yes, the cable is rated for 500 V DC, making it suitable for high-voltage applications.

9. Q: What is the environmental protection rating of the 3300 XL extension cable?

   A: The extension cable is rated IP65, meaning it is protected from dust and water ingress.

10. Q: Can the 3300 XL extension cable be used in harsh industrial environments?

    A: Yes, the cable is designed to perform reliably in harsh environments, including those with high moisture, dust, or temperature fluctuations.
