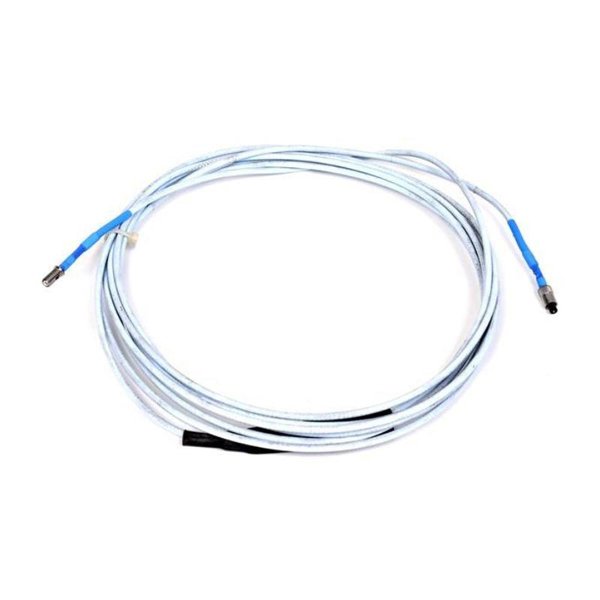

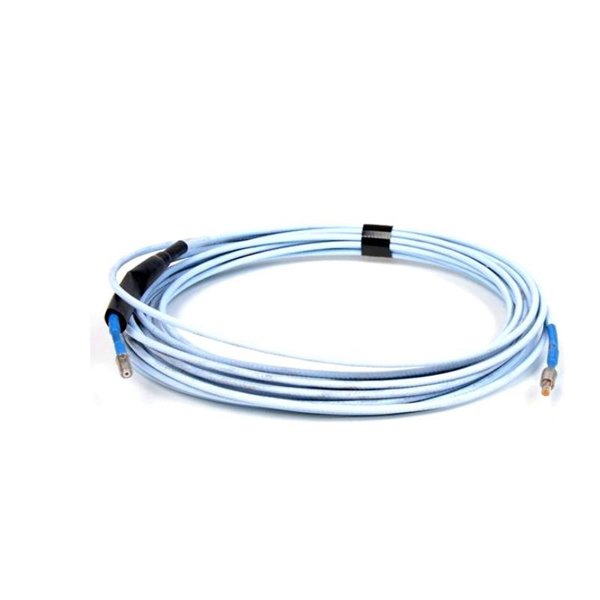

Bently Nevada 330130-080-12-00 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-080-12-00
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:8.0 meters
Weight:0.272 kg
Views:45
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330130-080-12-00 is a part of the 3300 XL 8 mm Proximity Transducer System. This 8.0-meter standard extension cable connects a proximity probe to a Proximitor sensor. It is designed for reliable transmission of static and dynamic vibration signals in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330130-080-12-00 |
| Cable Length | 8.0 meters |
| Weight | 0.272 kg |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Capacitance | 69.9 pF/m |
| DC Resistance (RCORE) | 1.76 ± 0.26 Ω |
| DC Resistance (RJACKET) | 0.53 ± 0.11 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Miniature ClickLoc coaxial connectors |
| Connector Torque (max) | 0.565 N·m (5 in·lbf) |
| Operating Temp (Standard) | -52°C to +177°C (-62°F to +350°F) |
| Operating Temp (ETR Option) | -52°C to +260°C (-62°F to +500°F) |
| Shielding | Gold-plated brass or beryllium copper connectors |
| Armor Option | Optional stainless steel armor available |
Product Applications
-
Fluid-film bearing vibration and position monitoring
-
Keyphasor reference signal transmission
-
Overspeed protection and shaft displacement detection
-
Integration in high-density industrial sensor networks
Product Advantages
High durability: 330 N pull strength with patented CableLoc™ design
Easy installation: ClickLoc™ connectors require no tools and prevent loosening
Oil sealing available: Optional FluidLoc cable prevents fluid leakage
Wide compatibility: Interchangeable with 3300 and 3300 XL series
High-temperature readiness: ETR variant withstands up to +260°C
FAQ
Q1: What systems is this extension cable compatible with?
A1: It works with the 3300 XL 8 mm Proximity Transducer System and is interchangeable with older 3300 5 mm and 8 mm systems.
Q2: What is the significance of the “080” in the part number?
A2: “080” indicates the cable length is 8.0 meters.
Q3: Can the cable be used in high-temperature environments?
A3: Yes, the ETR version can operate up to 260°C.
Q4: Is this cable armored?
A4: The -12-00 version is standard (non-armored) with connector protector. Armored versions are available.
Q5: What is the pull strength of the cable connection?
A5: The CableLoc design provides 330 N (75 lbf) pull strength.
Q6: Does it require calibration when replaced?
A6: No, the system is designed for full interchangeability without recalibration.
Q7: Can it be installed in areas with electromagnetic interference?
A7: Yes, the system has enhanced RFI/EMI immunity.
Q8: What is the recommended bend radius for this cable?
A8: Minimum bend radius is 25.4 mm (1.0 inch).
Q9: Is this cable suitable for hazardous areas?
A9: Yes, it supports ATEX, IECEx, and other certifications depending on installation.
Q10: Are special tools required for connector installation?
A10: No, ClickLoc connectors are finger-tight and tool-free.
