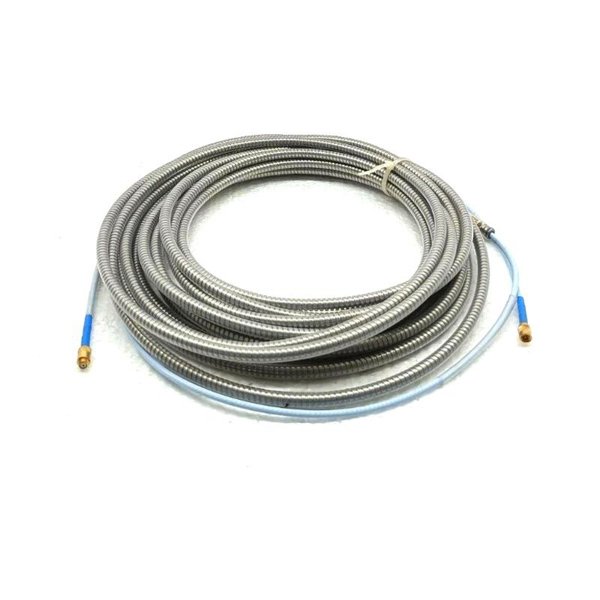

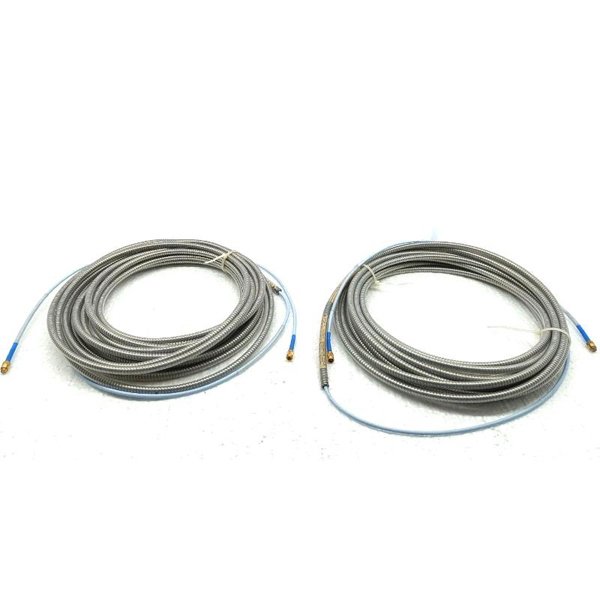

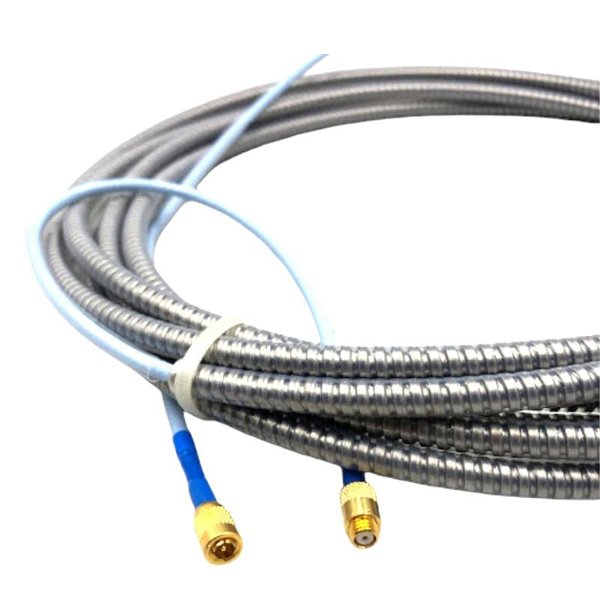

Bently Nevada 330130-040-03-05 3300 XL Standard Extension Cable

The Bently Nevada 330130-040-03-05 is a 4.0-meter 3300 XL Standard Extension Cable designed to connect 3300 XL proximity probes to Proximitor® Sensors. This extension cable is a critical component in the 3300 XL 8 mm Proximity Transducer System, used for accurate measurement of shaft position and vibration in fluid-film bearing machines.

Product Features and Benefits

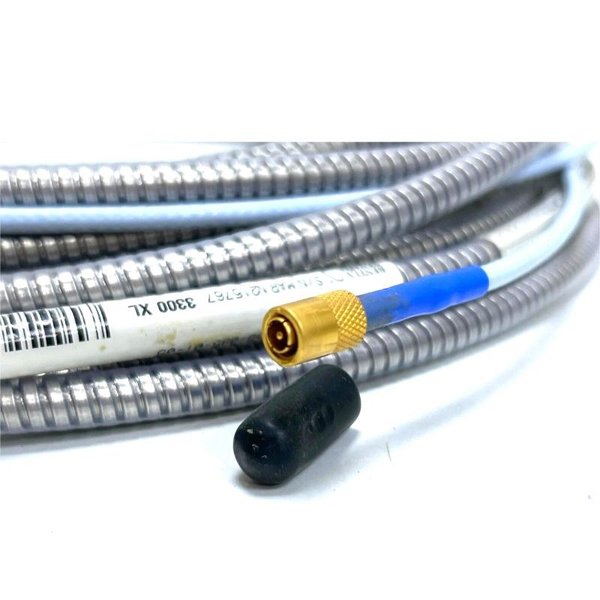

• ClickLoc Connectors: Gold-plated, corrosion-resistant connectors with positive lock “click” feedback, ensuring secure and tool-free installation.

• CableLoc Design: Provides high tensile strength (up to 330 N) to resist pullout.

• Flexible Construction: Available with optional armor and connector protector for harsh industrial environments.

• Interchangeability: Fully compatible with both XL and non-XL 3300 series systems, maintaining system performance.

• FluidLoc Option: Prevents oil migration through the cable in demanding turbine applications.

Applications

• Vibration Monitoring: For large rotating equipment in power plants and refineries.

• Position Measurement: Accurate shaft position detection in turbines, compressors, and motors.

• Keyphasor® Signals: Transmission of timing signals for rotational analysis.

• Speed and Overspeed Detection: Suitable for integration with Bently Nevada monitoring systems.

Technical Specifications

Product Advantages

• High Signal Integrity: Maintains accuracy over long cable runs with minimal signal loss.

• Mechanical Durability: Withstands tough industrial conditions with optional armored variants.

• Certified for Safety: Approved for use in hazardous environments (Zone 0/Zone 2).

• Modular and Easy Installation: Reduces downtime and simplifies maintenance with interchangeable parts.

• Extended Temperature Options Available: Compatible with ETR probes and cables for high-temperature applications.

Frequently Asked Questions (FAQ)

Q1: What is the purpose of the 330130-040-03-05 extension cable?

A1: It extends the signal from a proximity probe to the Proximitor Sensor in vibration and position monitoring systems.

Q2: Is the cable compatible with ETR probes?

A2: Yes, it can be used with extended temperature range (ETR) probes, though accuracy is limited to ETR system specifications.

Q3: What is the significance of the ClickLoc connector?

A3: ClickLoc connectors ensure a secure, tool-free connection with a tactile “click” for confirmation.

Q4: What environments is this cable rated for?

A4: It is certified for hazardous areas including Zone 0 and Zone 2, and can operate in temperatures from -52°C to +177°C.

Q5: Can this cable be used in applications with high vibration?

A5: Yes, especially when ordered with armor and connector protectors for enhanced mechanical protection.

Q6: What material is used for insulation?

A6: The standard version uses FEP insulation, while the ETR version uses PFA insulation for higher temperature resistance.

Q7: Is calibration required for this cable?

A7: No individual calibration is necessary; it is fully interchangeable with other 3300 XL components.

Q8: What is the typical weight of the 4.0-meter cable?

A8: Approximately 0.412 kg.

Q9: Can the cable be installed in restricted conduits?

A9: Yes, connector protectors or silicone tape options support such installations.

Q10: What is the bend radius requirement?

A10: Minimum cable bend radius is 25.4 mm (1 inch).
