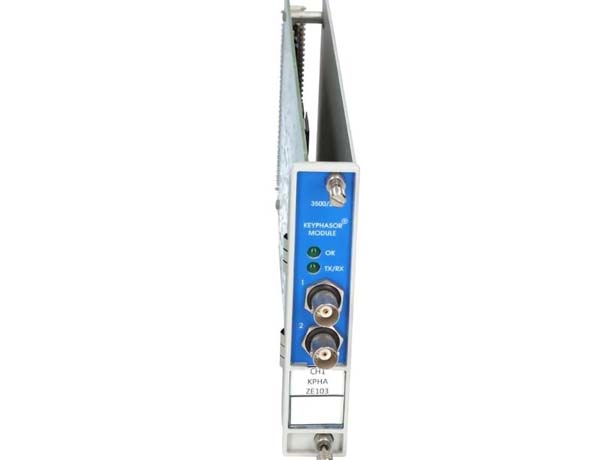

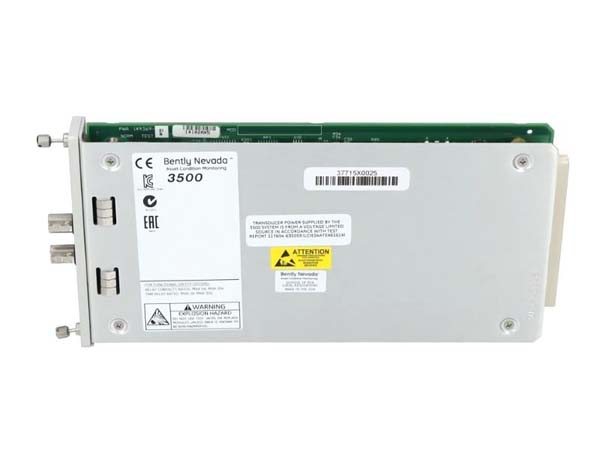

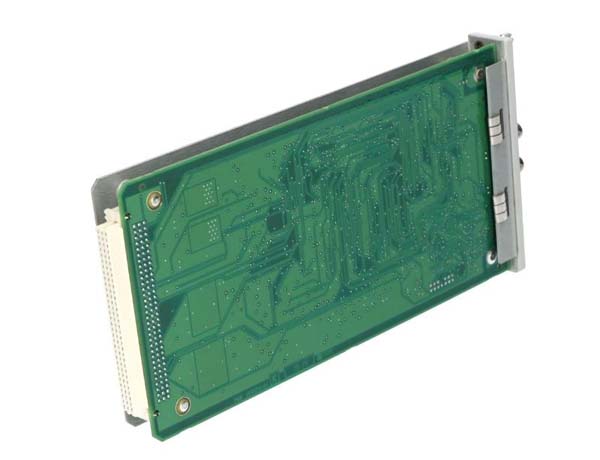

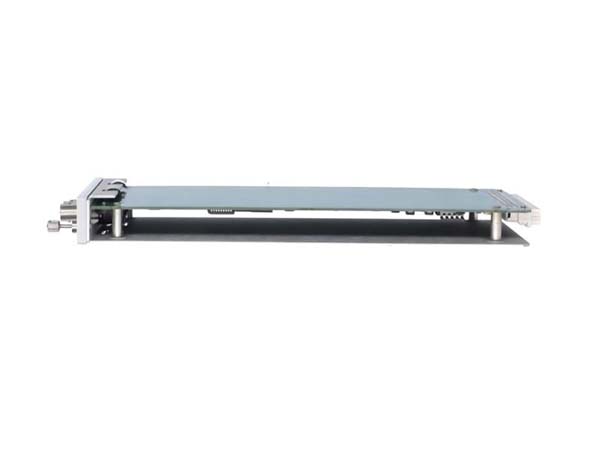

Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module

The Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module is an advanced phase reference component within the Bently Nevada 3500 Series Machinery Protection System. This module plays a critical role in determining the precise angular position of a rotating shaft by generating a Keyphasor signal—a TTL pulse used for synchronous signal processing in vibration diagnostics.

What sets the 149369-01 version apart is that it acts as the Isolated I/O Module for the 3500/25 Enhanced Keyphasor system. Its purpose is to deliver clean, isolated Keyphasor signals from proximity probes or magnetic pickups to the front-end 3500/25 module. By providing electrical isolation, it reduces the effects of ground loops and electromagnetic interference (EMI), improving reliability in electrically noisy industrial environments.

The 3500/25 149369-01 module is ideal for use in turbines, compressors, motors, and other high-speed machinery where precise phase reference data is required for diagnostics such as Bode plots, orbit plots, and balancing analysis.

Technical Specifications

Applications

The 3500/25 149369-01 Keyphasor I/O Module is purpose-built for mission-critical machinery in industries where shaft phase reference is essential for equipment safety and diagnostics:

• Gas and Steam Turbines

  Enables accurate phase-based diagnostics, including rotor dynamic analysis and vibration trending.

• Compressors

  Facilitates detection of unbalance, misalignment, and surge conditions in centrifugal and axial compressors.

• Electric Generators & Motors

  Assists in synchronous speed detection and phasing during high-speed operation.

• Oil & Gas Production

  Reliable in harsh upstream and downstream processing environments where EMI is common.

• Marine Engines and Propulsion Systems

  Provides precise signal conditioning in high-vibration, EMI-exposed areas.

• Petrochemical Plants and Refineries

  Integrates into complex monitoring networks, supporting predictive maintenance strategies.

Product Advantages

• Electrical Isolation for Signal Integrity

  Protects the monitoring system from ground loops and voltage surges caused by EMI or field wiring issues.

• Dual-Channel Flexibility

  Supports one or two Keyphasor signals, independently or in redundant configurations.

• Clean TTL Output

  Provides well-conditioned TTL signals for precise timing analysis and signal synchronization.

• Modular Architecture

  Seamlessly installs into the rear slot of the 3500 rack system, simplifying maintenance and integration.

• High-Speed Capability

  Capable of handling pulse frequencies up to 20 kHz—ideal for turbines and high-RPM rotating assets.

• Minimal Maintenance

  Passive design and industrial-grade construction ensure long-term reliability without service downtime.

• Robust Environmental Design

  Wide temperature tolerance and high humidity resistance make it suitable for demanding industrial settings.

• Fully Certified

  Approved for use in hazardous areas, meeting ATEX, UL, CE, and other key compliance standards.

Frequently Asked Questions (FAQ)

1. What is the function of the 149369-01 module in the 3500 system?

It serves as the rear I/O interface for the Enhanced Keyphasor Module, conditioning and isolating input signals.

2. Is this module compatible with all 3500/25 front modules?

Yes, it is specifically designed to be used with any Bently Nevada 3500/25 Enhanced Keyphasor Module.

3. What types of input sensors does it support?

It supports magnetic pickups and proximity probes, such as the Bently 3300 XL series.

4. Does it provide electrical isolation?

Yes, this model includes built-in signal isolation to protect the system from electrical noise and interference.

5. Can I use two channels simultaneously?

Yes, it supports dual-channel configuration for independent or redundant Keyphasor signal processing.

6. Where is the module installed?

It is mounted in the rear of the 3500 rack, directly behind the corresponding front 3500/25 module.

7. Does it require an external power source?

No, it draws power from the rack’s backplane, requiring no additional external power.

8. Is the 149369-01 module hot-swappable?

It is not recommended to hot-swap this module. Power down the system before installation or removal.

9. What is the operating temperature range for this module?

The module operates safely between -30°C and +65°C.

10. Can it be used in offshore or hazardous environments?

Yes, the module meets ATEX and IECEx certifications, making it suitable for use in explosive atmospheres.
