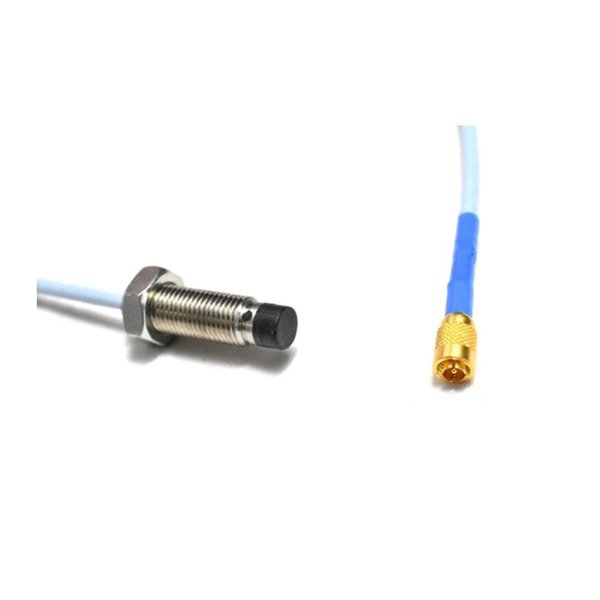

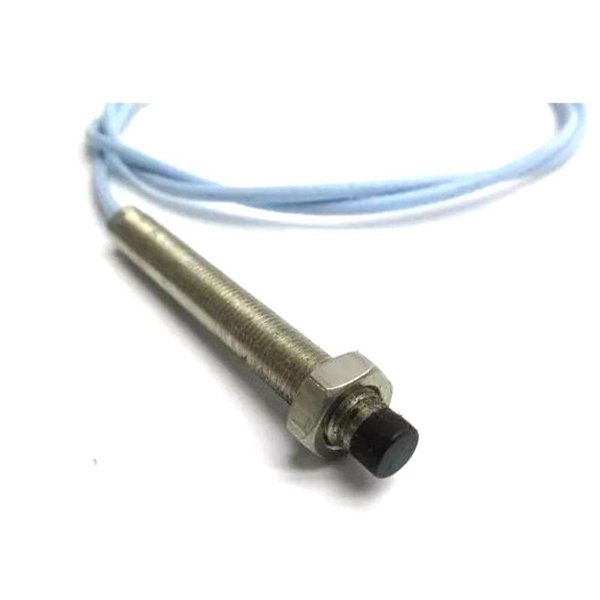

Bently Nevada 330101-55-75-10-02-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-55-75-10-02-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-55-75-10-02-00 is a 3300 XL 8 mm Proximity Probe, designed for precise monitoring of shaft vibration and position in critical rotating machinery. It outputs a voltage proportional to the gap between the probe tip and the target surface, meeting API 670 standards. It ensures interchangeability of components for easy installation and maintenance.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Operating Temperature | -52°C to +177°C (standard) |
| Tip Material | PPS (Polyphenylene sulfide) |
| Cable Material | FEP insulated, triaxial |
| Connector Type | Miniature coaxial ClickLoc |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
Applications
-
Vibration and position monitoring of fluid-film bearing machinery
-
Keyphasor reference and speed detection
-
Overspeed and tachometer monitoring
Advantages
-
Fully compliant with API 670
-
High accuracy and stable linear output
-
Durable construction with high tensile strength
-
Tool-free, secure ClickLoc connections
-
Interchangeable with older 3300 series components
-
Optional FluidLoc cable for oil resistance
FAQs
Q1: What is the main application of this probe?
A1: It measures vibration and position in rotating machines.
Q2: Does it comply with API 670?
A2: Yes, it fully meets API 670 standards.
Q3: What is the recommended gap?
A3: The recommended gap is about 1.27 mm (50 mils).
Q4: Is it compatible with older 3300 series systems?
A4: Yes, it is fully backward and forward compatible.
Q5: What is the maximum temperature it can handle?
A5: The standard probe operates up to +177°C.
Q6: Are special tools required for installation?
A6: No, the ClickLoc connectors eliminate the need for special tools.
Q7: What is the linear measurement range?
A7: From 0.25 mm to 2.3 mm.
Q8: Is it certified for hazardous areas?
A8: Yes, it has CSA, ATEX, and IECEx approvals.
Q9: Can I use it with a 5-meter extension?
A9: No, this model is designed for a total length of 1.0 meter.
Q10: What is the cable’s tensile strength?
A10: 330 N (75 lbf) at the probe end.
