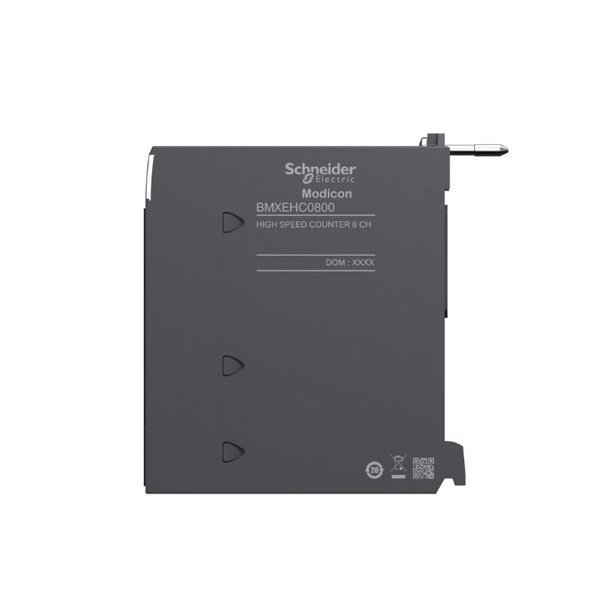

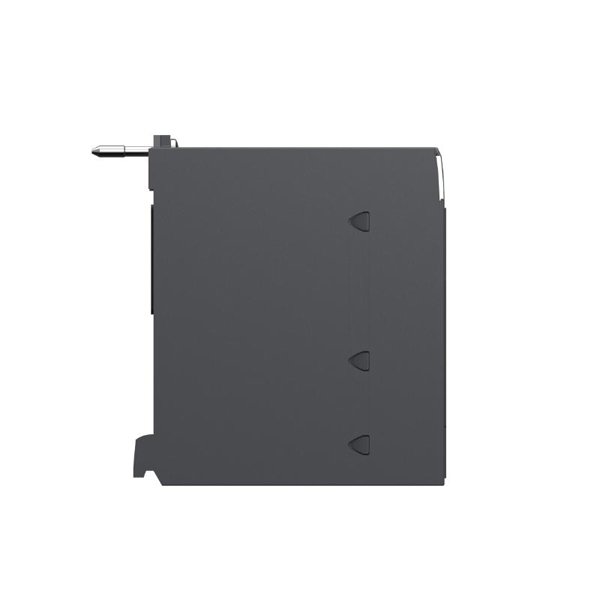

Schneider BMXEHC0800 High Speed Counter Module

The Schneider BMXEHC0800 is an advanced high-speed counter module designed for the Modicon X80 I/O platform. This module is ideal for applications requiring precise counting, frequency measurement, and pulse train analysis, making it a critical component in automation and motion control systems.

With support for up to 8 independent channels, the BMXEHC0800 provides high-speed pulse counting, quadrature decoding, and frequency measurement capabilities. It is suitable for use with incremental encoders, proximity sensors, and mechanical switches, allowing it to handle a wide range of industrial applications, including manufacturing, material handling, packaging, and motion synchronization.

Built to withstand demanding industrial environments, the BMXEHC0800 is a robust and reliable solution that integrates seamlessly with Modicon M340 and M580 PLCs. With real-time processing capabilities, this module ensures fast and accurate pulse data acquisition, essential for high-performance automation systems.

Technical Specifications

Applications

The Schneider BMXEHC0800 module is used in high-speed counting, positioning, and motion control applications, including:

• Manufacturing Automation – Real-time counting for production lines and assembly systems.

• Motion Control Systems – High-speed pulse counting for servo and stepper motors.

• Material Handling – Tracking conveyor belt movement and object positioning.

• Robotic Systems – Provides real-time pulse counting for precision robotics applications.

• Packaging and Labeling Machines – Ensures precise positioning and synchronization of packaging components.

• Industrial Weighing Systems – Works with load cells and pulse-based sensors for accurate weight measurement.

• CNC Machines – Used for position feedback and motion synchronization.

• Process Control Systems – Measures rotational speed, frequency, and event-based counting.

Advantages

• High-Speed Processing – Supports pulse counting up to 100 kHz, ensuring fast and accurate data acquisition.

• Multiple Input Modes – Handles pulse, quadrature decoding, and frequency measurement, making it highly versatile.

• Independent Channels – Supports 8 separate counting channels, each operating independently.

• Quadrature Support – Decodes 1x, 2x, and 4x encoder signals for motion control applications.

• Fast Response Time – With a <1 ms response time, it provides real-time processing for time-sensitive operations.

• Built-in LED Indicators – Allows quick visual diagnostics of channel activity.

• Robust Electrical Isolation – Ensures safe and interference-free operation with 1500V isolation.

• Seamless PLC Integration – Works effortlessly with Modicon M340 and M580 PLCs, simplifying system design.

Frequently Asked Questions (FAQ)

1. What is the maximum counting frequency supported by the BMXEHC0800?

   • The module supports counting speeds of up to 100 kHz per channel.

2. Can this module decode quadrature signals?

   • Yes, it supports 1x, 2x, and 4x quadrature decoding for incremental encoders.

3. What types of input signals can the BMXEHC0800 process?

   • It processes pulse, frequency measurement, and quadrature signals.

4. What PLCs is this module compatible with?

   • It is fully compatible with Modicon M340 and M580 PLC systems.

5. Does the BMXEHC0800 provide electrical isolation?

   • Yes, it offers 1500V isolation between channels and logic ground.

6. What is the response time of the module?

   • The module has a response time of less than 1 ms, making it ideal for real-time applications.

7. How many independent channels does the module support?

   • The BMXEHC0800 supports 8 independent high-speed counting channels.

8. Is this module suitable for industrial motion control applications?

   • Yes, it is widely used in servo motor control, CNC systems, and robotic automation.

9. What is the operating temperature range?

   • The module operates in temperatures ranging from 0°C to 60°C (32°F to 140°F).

10. What type of wiring connection does this module use?

    • It features a removable screw terminal block for secure and easy wiring.
