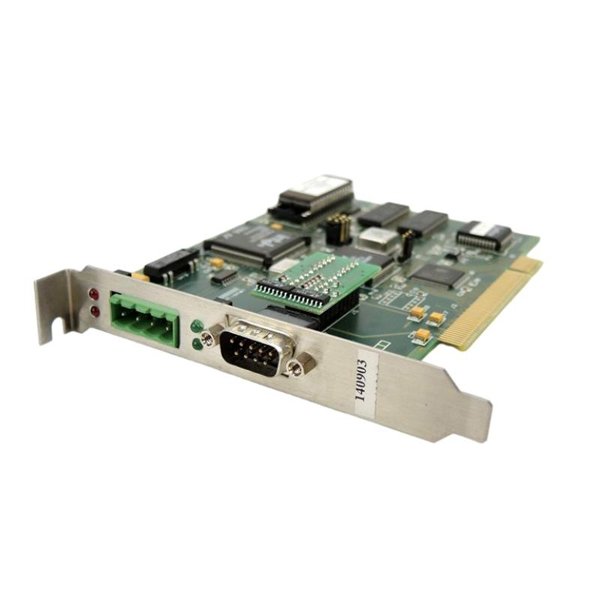

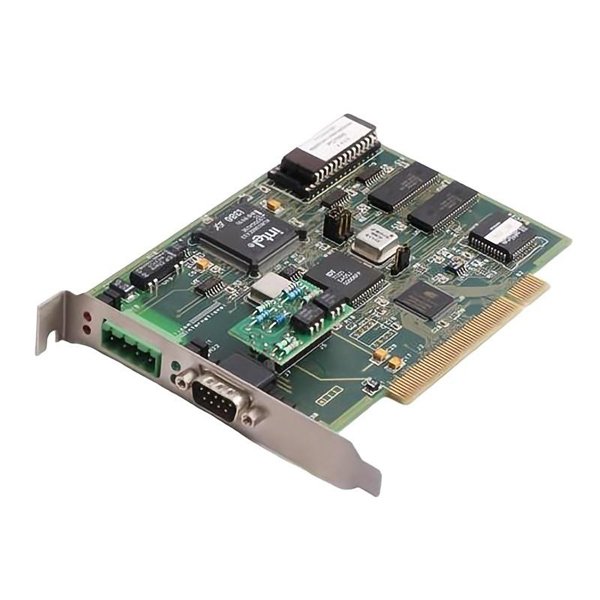

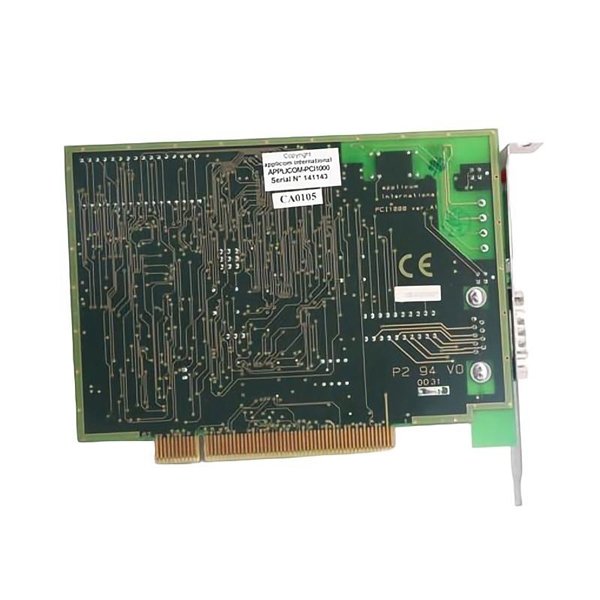

Woodward APPLICOM-PCI1000 Network Interface Card

The Woodward APPLICOM-PCI1000 Network Interface Card is an advanced industrial communication module designed to integrate automation controllers, field devices, and supervisory systems through reliable and efficient network connections. Installed directly into a standard PCI slot, this card provides deterministic communication for industrial protocols, ensuring seamless data exchange between automation equipment and host PCs.

The APPLICOM-PCI1000 is engineered for rugged industrial environments, providing robust communication capabilities across a wide range of fieldbus and industrial Ethernet protocols. It is widely adopted in industries such as power generation, oil and gas, marine, chemical processing, and heavy machinery control, where uninterrupted data communication is critical for operational reliability.

Product Specifications

Product Applications

The APPLICOM-PCI1000 is a versatile communication interface card with broad industrial applications:

• Power Generation Plants – Integration of turbine control systems with supervisory monitoring platforms

• Industrial Automation – Data communication between PLCs, SCADA systems, and distributed I/O devices

• Oil and Gas Facilities – Real-time monitoring of pumps, compressors, and pipeline control systems

• Process Control Industries – Linking of chemical and petrochemical process controllers with central systems

• Marine Applications – Communication backbone for propulsion, navigation, and energy management systems

• Factory Automation – High-speed communication for robotic cells, conveyor systems, and production lines

Product Advantages

The Woodward APPLICOM-PCI1000 Network Interface Card delivers numerous advantages that enhance its usability in industrial applications:

• Multi-Protocol Support: Capable of handling a wide range of industrial protocols, making it highly adaptable.

• Reliable Communication: Provides deterministic and robust data transfer, critical for mission-critical operations.

• Industrial-Grade Durability: Designed for long-term operation in harsh industrial conditions.

• Ease of Integration: Seamlessly installs into standard PCI slots without additional hardware modifications.

• Advanced Diagnostics: Built-in LEDs and software tools simplify troubleshooting and maintenance.

• Isolation Protection: Galvanic isolation enhances safety and prevents electrical noise interference.

• Scalability: Supports multiple communication channels, enabling system expansion when required.

Frequently Asked Questions (FAQ)

1. Which industrial communication protocols does the APPLICOM-PCI1000 support?

   It supports Modbus, Profibus, CANopen, and DeviceNet, depending on the specific card variant.

2. Does the card provide galvanic isolation for fieldbus signals?

   Yes, it includes galvanic isolation to protect both the card and connected devices from electrical disturbances.

3. How does the APPLICOM-PCI1000 integrate with SCADA systems?

   It provides drivers and APIs that allow SCADA software to directly communicate with field devices.

4. Can this card handle multiple protocols simultaneously?

   No, each card variant is configured for a specific protocol, though multiple cards can be installed in one system.

5. What diagnostic features are available on this card?

   It has onboard LEDs for link and activity monitoring, along with software-based diagnostic tools.

6. Is real-time data communication supported by this interface card?

   Yes, it supports deterministic communication suitable for real-time control applications.

7. What type of PCI slot is required for installation?

   It is designed for a standard 32-bit PCI slot running at 33 MHz.

8. Does the card require external power supply?

   No, it is powered directly from the 5 VDC supplied by the PCI bus.

9. Is the card compatible with both legacy and modern systems?

   Yes, it is designed to integrate with legacy controllers as well as modern automation platforms.

10. How many APPLICOM-PCI1000 cards can be installed in one system?

    Multiple cards can be installed in a single PC, provided sufficient PCI slots are available.
