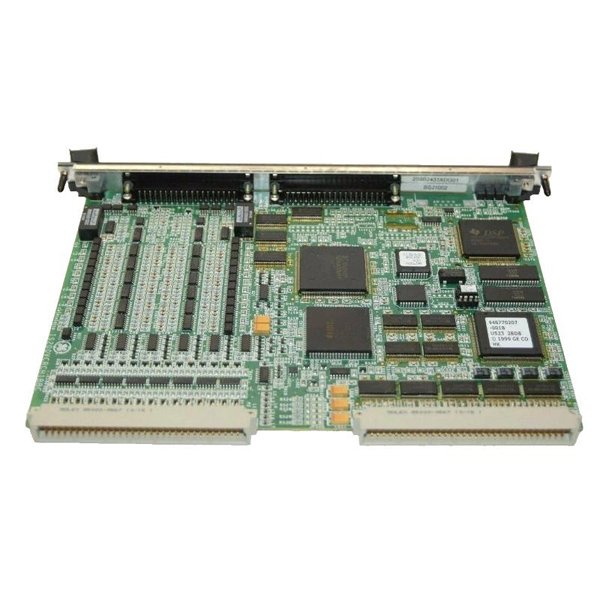

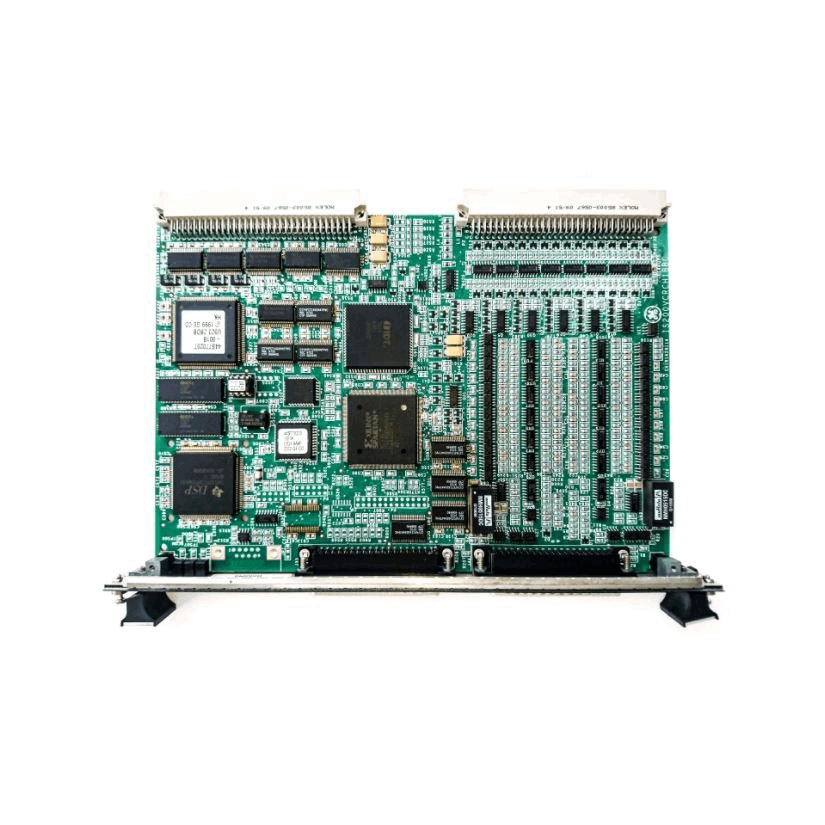

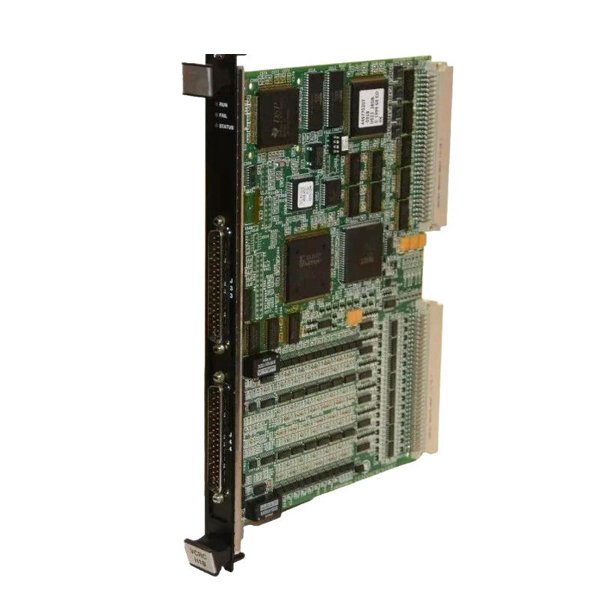

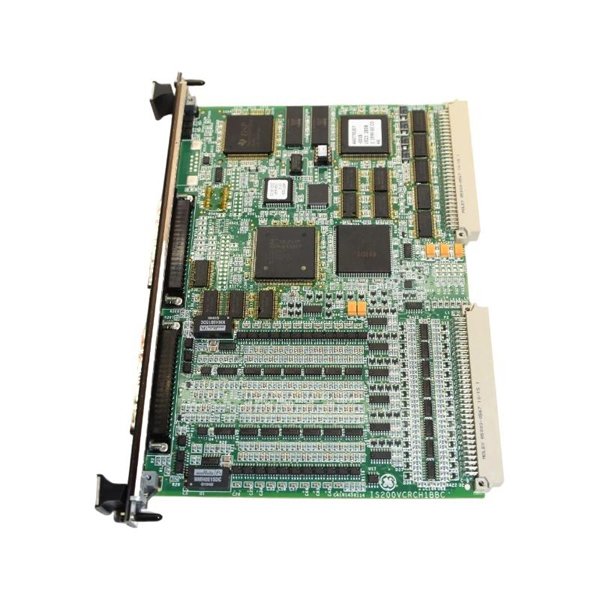

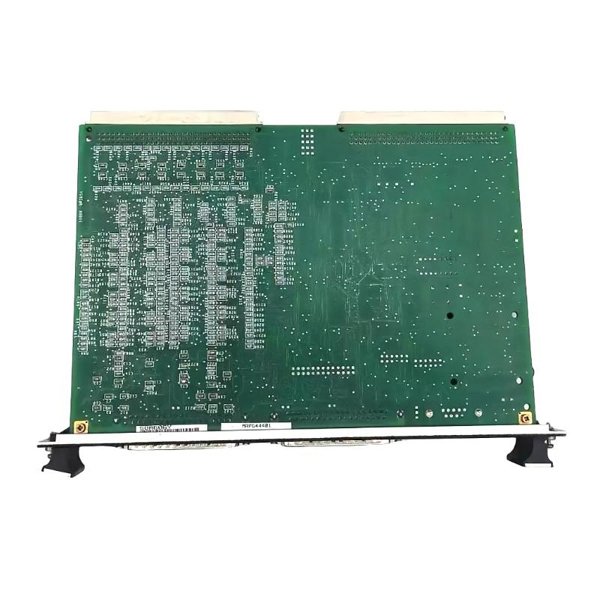

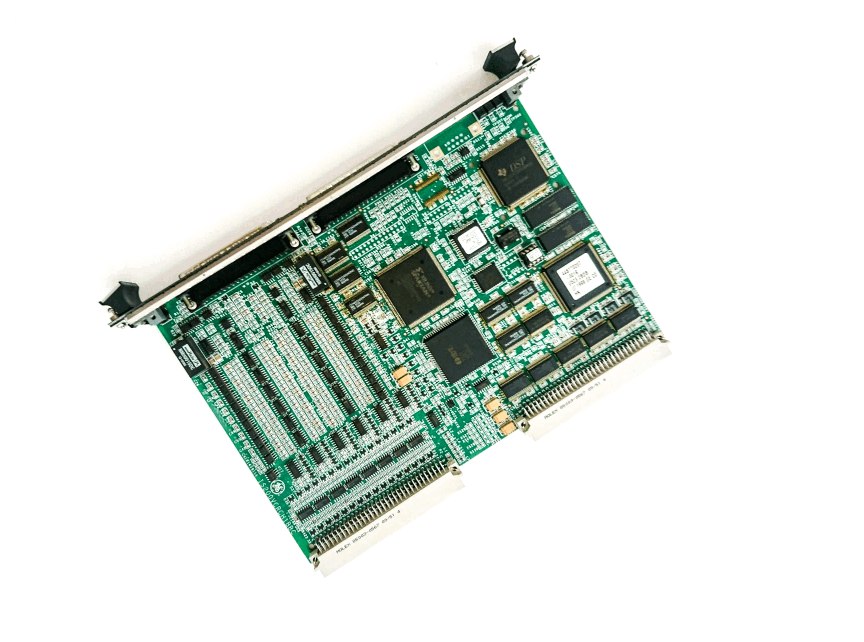

General Electric IS200VCRCH1B Contact Input/Relay Output Board
Item Number:IS200VCRCH1B
Brand: GE
Lead Time: In stock
Description: Contact Input/Relay Output Board
Payment: T/T
Product Description
IS200VCRCH1B is a contact input/relay output board in the GEMark VI series control system, mainly used to process discrete signal input and relay output control. The board supports 48 discrete inputs and 24 relay outputs, and is connected to four terminal boards through the matching daughter board, which can replace the wider VCCC module.
Function & Features
- 48 discrete inputs: The first 24 are connected via a TBCI terminal board (dry contact inputs), and the second 24 require a second terminal board for expansion. The input signals are powered by a DC power supply and connected to the VME rack via a cable with a molded plug.
- Sequence of Events Recording (SOE): The IS200VCRCH1B can capture contact chatter and pulses as low as 6 milliseconds with a time resolution of 1 millisecond.
- 24 relay outputs: The first 6 can be configured via jumpers to drive external solenoid valves or dry contact (Form-C) outputs, supporting 125V DC or 115V AC power supply options.
Specifications
|
Category |
Details |
|
Model |
IS200VCRCH1B |
|
Input Channels |
48 discrete inputs (dry contact) |
|
Input Scanning |
High-speed scanning: 1ms per sample (critical signals) |
|
SOE Resolution |
1ms (can detect contact chatter ≥6ms) |
|
Relay Outputs |
24 channels |
|
Output Types |
- Channels 1-6: Configurable as solenoid drive (125V DC/115V AC/24V DC) or dry contact (Form-C) - Channels 7-11: Unpowered Form-C contacts - Channel 12: Isolated Form-C contact (special applications) |
|
TRLYH1B daughterboard (12 plug-in magnetic relays) |
|
|
Output Protection |
Individual fuses, onboard surge suppression |
|
Connectors |
2 sets of J3/J4 interfaces (for TBCI/TRLY terminal boards) |
|
SOE Function |
Records all contact actions with 1ms resolution |
|
Configuration |
Jumpers select power type (DC/AC) for first 6 relays |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: Contact Input/Relay Output Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
