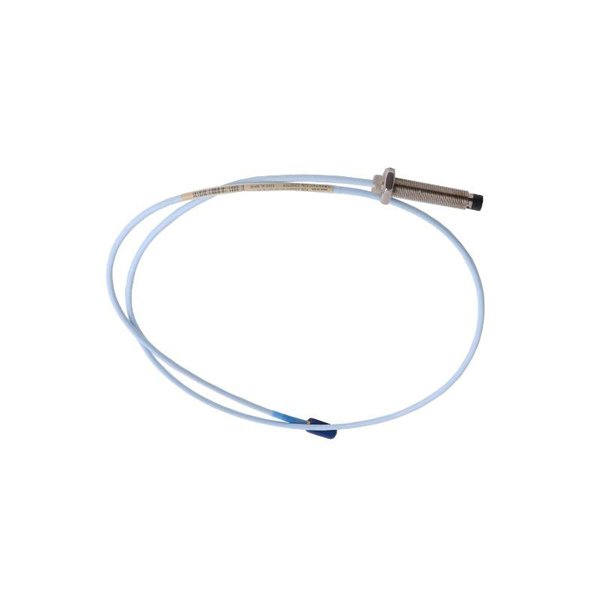

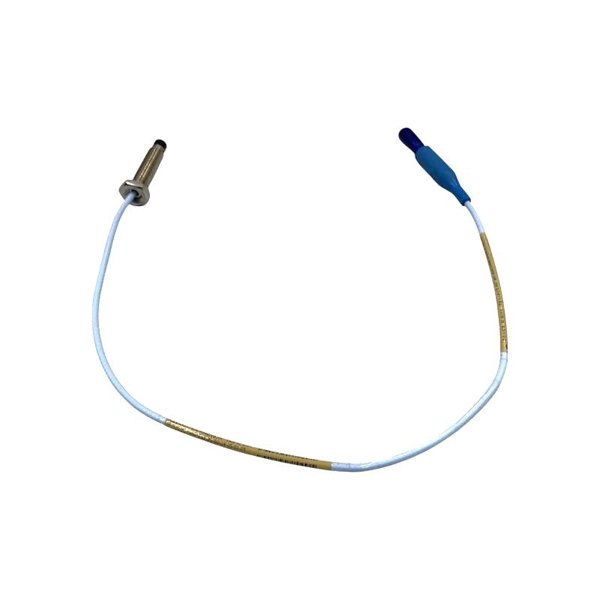

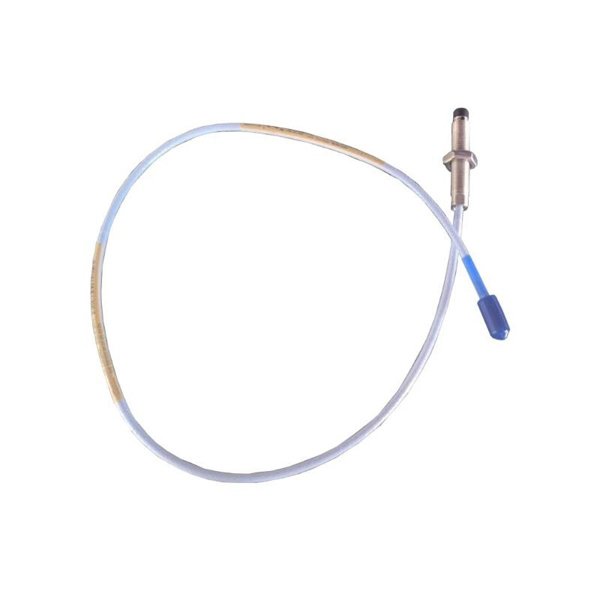

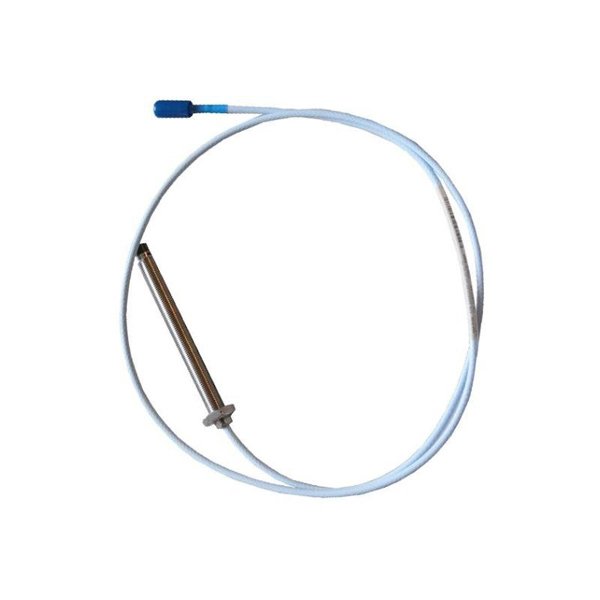

Bently Nevada 330103-00-05-10-01-00 3300 XL 8mm Proximity Probes

The Bently Nevada 330103-00-05-10-01-00 is a precision-engineered 3300 XL 8mm Proximity Probe, designed specifically for high-reliability machinery condition monitoring in industrial environments. As part of the 3300 XL series, this probe provides accurate, non-contact displacement and vibration measurements, essential for the health assessment of rotating equipment such as turbines, compressors, and generators.

Featuring a robust design, the 8mm sensing tip allows for precise measurement in tight or challenging spaces, ensuring reliable data capture under harsh operating conditions. The probe’s compatibility with the Bently Nevada 3300 XL monitoring system makes it an ideal choice for users seeking to optimize predictive maintenance and reduce unexpected downtime. Its rugged construction and proven reliability in the field have made it a preferred choice among power generation, oil and gas, and heavy industry operators worldwide.

Product Specifications

Applications

The 3300 XL 8mm Proximity Probe is engineered to perform critical machinery health monitoring functions in various industrial sectors:

• Power Generation: Monitoring turbine shaft position, vibration, and rotor dynamics to prevent catastrophic failures.

• Oil and Gas: Measuring critical rotating equipment such as compressors and pumps in upstream and downstream facilities.

• Petrochemical Industry: Ensuring safe and efficient operation of large rotating machinery within refineries.

• Aerospace & Defense: Precision monitoring of engines and high-speed rotating components.

• Metallurgy: Assessing the condition of large rolling mills, fans, and blowers.

• Water & Wastewater Treatment: Monitoring pumps and motors for operational reliability.

Product Advantages

• High Precision and Reliability: Provides highly accurate, stable proximity measurements crucial for predictive maintenance.

• Robust Design for Harsh Environments: Built to withstand extreme temperatures, vibration, and contaminants, ensuring longevity and reduced maintenance.

• Compact Sensing Tip: 8mm diameter allows for installation in tight spaces without sacrificing performance.

• Standardized Mounting and Connection: Compatible with common industrial mounting threads and Bendix connectors, simplifying installation and replacement.

• Long Cable Options: Standard 1.0 meter cable with flexibility to customize length to suit installation needs.

• Industry Proven: Trusted worldwide for decades in critical machinery monitoring applications.

• Shock Resistant: Designed to tolerate high vibration and shock levels without degradation of signal quality.

• Easy Integration: Seamlessly integrates with Bently Nevada 3300 XL monitoring systems and other condition monitoring platforms.

• Comprehensive Calibration: Factory calibrated with traceability ensuring accuracy and consistency.

• IP65 Protection: Resistant to dust and water ingress, suitable for industrial outdoor and indoor environments.

Frequently Asked Questions (FAQ)

1. What is the sensing tip diameter of the Bently Nevada 330103 probe?

   The probe features an 8mm sensing tip designed for precision measurements.

2. What is the typical cable length supplied with this probe?

   The standard cable length is 1.0 meter, but custom lengths can be ordered.

3. Can the probe operate in extreme temperatures?

   Yes, it is rated to operate reliably from -40°C up to +120°C.

4. What type of connector does this probe use?

   It uses the Bendix PT02E-10-6P connector, a standard in industrial proximity probes.

5. Is the probe compatible with the Bently Nevada 3300 XL system?

   Absolutely, it is designed specifically for compatibility with the 3300 XL monitoring system.

6. What mounting thread does this probe use?

   The probe uses a standard 1/2-20 UNF mounting thread for secure installation.

7. How does the probe output its measurement signal?

   It produces an AC variable frequency signal proportional to the distance between the probe tip and the target.

8. Is this probe resistant to vibration and shock?

   Yes, it can handle vibration up to 100 g, making it suitable for harsh industrial environments.

9. What is the environmental protection rating of the probe?

   The probe has an IP65 rating, protecting it against dust and water jets.

10. How is the probe calibrated?

    The probe is factory calibrated with traceable standards for consistent accuracy.
