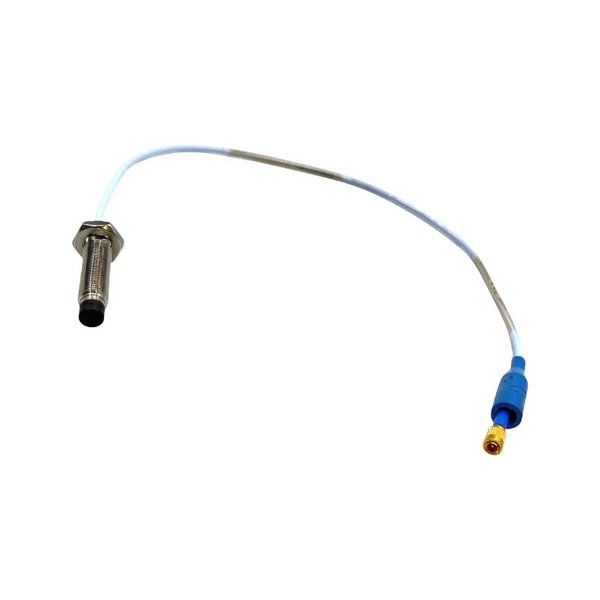

Bently Nevada 330103-05-16-10-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-05-16-10-02-00 3300 XL 8 mm Proximity Probe is a high-performance vibration and position sensing probe designed for industrial rotating machinery. As part of the 3300 XL 8 mm transducer system, it ensures reliable monitoring of shaft vibration, axial position, and rotor dynamics. The probe is fully compliant with API 670 standards and offers superior thermal stability, interchangeability, and long-term accuracy.

Technical Specifications

Applications

The 330103-05-16-10-02-00 probe is used extensively in critical rotating machinery where precise vibration and position monitoring are required. Typical applications include:

• Steam turbines, gas turbines, and hydro turbines

• Large compressors and centrifugal pumps

• Electric motors and generators

• Gearboxes and industrial fans

• API 670 compliant machinery protection systems

Product Advantages

• API 670 Compliant: Meets international standards for vibration monitoring.

• High Accuracy: Delivers stable linear response across the entire measurement range.

• Interchangeability: Probe, extension cable, and proximitor sensor are fully interchangeable.

• Thermal Stability: Maintains accuracy over wide temperature variations.

• Durable Design: Stainless steel probe body and PPS tip ensure long service life.

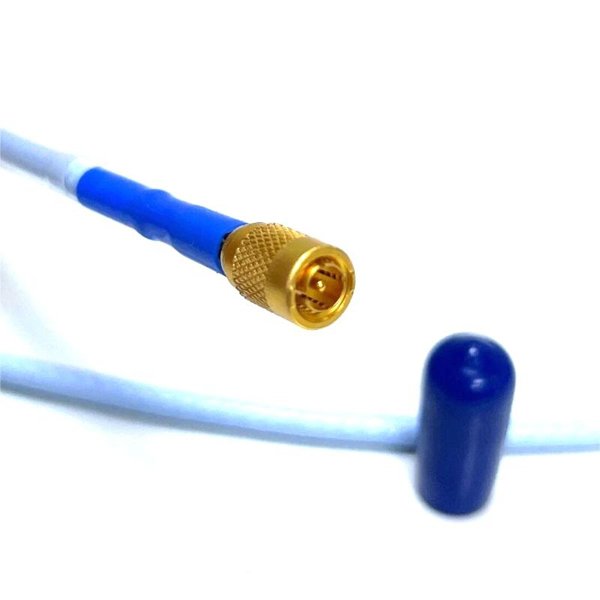

• Ease of Installation: Metric threaded design with ClickLoc connector.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 330103-05-16-10-02-00 probe?

A1: It measures shaft vibration and axial position in rotating machinery using eddy-current displacement technology.

Q2: Is this probe compliant with API 670 standards?

A2: Yes, the 3300 XL 8 mm system fully complies with API 670 requirements for mechanical configuration, linear range, and accuracy.

Q3: What is the linear measurement range of this probe?

A3: It provides a nominal linear range of 2.0 mm (80 mils).

Q4: Can the probe operate in high-temperature environments?

A4: Yes, it operates reliably from -35 °C up to +177 °C.

Q5: What materials are used for durability?

A5: The probe body is made of stainless steel, the tip is PPS, and sealing is achieved with a Viton O-ring.

Q6: Is the probe interchangeable with other 3300 XL components?

A6: Yes, probes, extension cables, and Proximitor sensors in the 3300 XL series are fully interchangeable.

Q7: What type of thread does this probe use?

A7: It uses an M10 x 1 metric thread.

Q8: What is the typical sensitivity of this probe?

A8: The sensitivity is 7.87 V/mm (200 mV/mil).

Q9: Does this model include an armored cable?

A9: No, the 330103-05-16-10-02-00 is supplied without an armored cable.

Q10: What are the main industrial sectors using this probe?

A10: Power generation, petrochemical, oil & gas, and heavy industrial sectors widely apply this probe.
