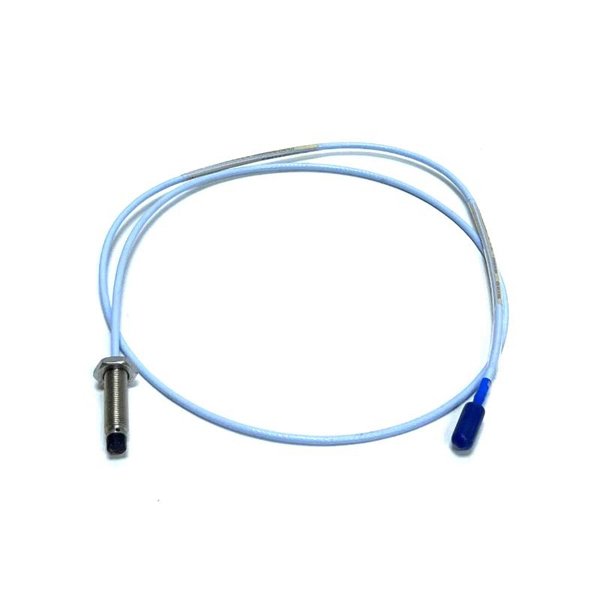

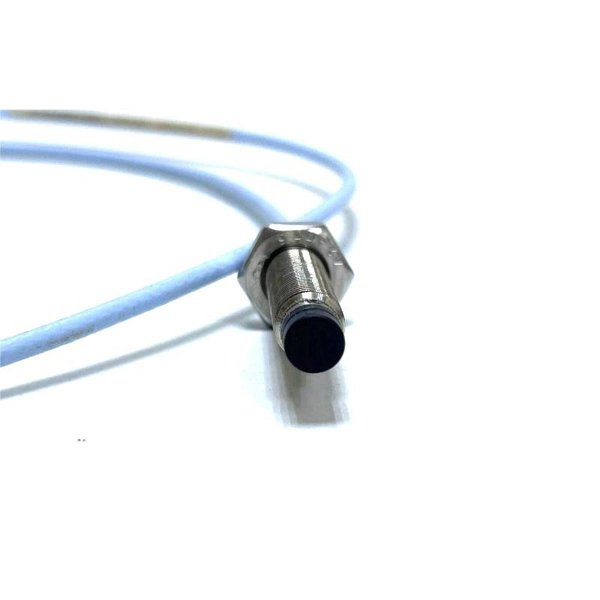

Bently Nevada 330103-00-18-10-12-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330103-00-18-10-12-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:44
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330103-00-18-10-12-00 is part of the 3300 XL 8 mm Proximity Transducer System. It includes a proximity probe, extension cable, and Proximitor sensor. This system provides accurate non-contact vibration and position measurements. It meets API 670 standards and is widely used in critical rotating machinery.
Product Features
-
Non-contact measurement of vibration and position
-
Compatible with all 3300 XL 8 mm systems
-
API 670 compliant for mechanical configuration and accuracy
-
Improved EMI/RFI immunity
-

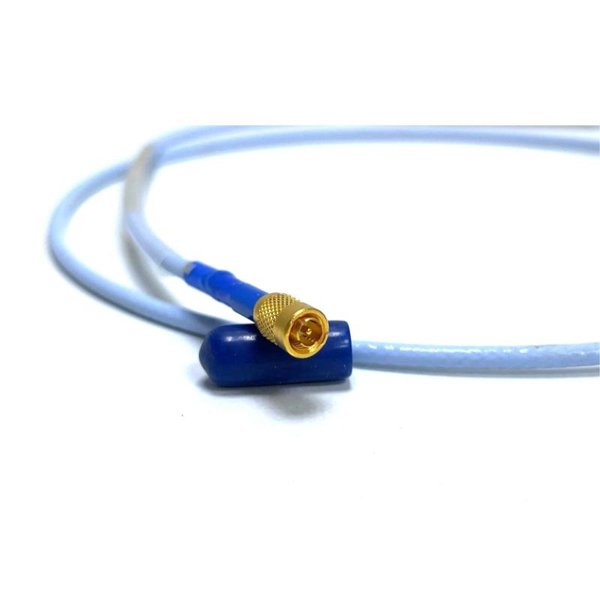

ClickLoc™ gold-plated connectors for secure, tool-free connection
-
Robust construction with TipLoc™ and CableLoc™ designs
-
Optional FluidLoc™ cable prevents oil leakage
-
Extended temperature versions available
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330103-00-18-10-12-00 |
| Probe Thread Type | M10 x 1 |
| Probe Total Length | 1.0 meter |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature (Probe) | –52°C to +177°C (Standard) / up to +218°C (ETR) |
| Pressure Seal | Viton® O-ring (not pressure-tested by default) |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75 Ω triaxial FEP insulated (standard) or PFA (ETR) |
| Connector Type | Miniature coaxial ClickLoc™ |
| Mounting Torque (standard) | 11.2 N·m recommended (max. 33.9 N·m) |
| Certification | CSA, ATEX, IECEx, CE, RoHS, SIL 2/3 |
Applications
-
Radial vibration monitoring
-
Axial (thrust) position measurements
-
Keyphasor reference signal detection
-
Speed and overspeed protection
-
Rotating machinery with fluid-film bearings
-
High-density installations (panel or DIN mount)
Product Advantages
-
Fully interchangeable system components
-
High accuracy without recalibration
-
Reduced installation time with SpringLoc™ terminal strips
-
Wide environmental tolerance and robust mechanical design
-
Excellent EMI/RFI immunity
-
Backward-compatible with legacy 3300 series systems
FAQ (Frequently Asked Questions)
Q1: What is the main function of this proximity probe?
A1: It measures the distance between the probe tip and a conductive surface to monitor vibration and position.
Q2: Is this probe API 670 compliant?
A2: Yes, the standard system meets API 670 for linear range, mechanical configuration, and accuracy.
Q3: Can it be used in high-temperature environments?
A3: Yes, the ETR version supports temperatures up to 218°C (probe) and 260°C (cable).
Q4: Is calibration required for each component?
A4: No, components are fully interchangeable and factory-calibrated to AISI 4140 steel.
Q5: How does the ClickLoc™ connector help?
A5: It ensures a secure, finger-tight connection with a “click,” eliminating the need for tools.
Q6: What is the recommended gap setting?
A6: Approximately 1.27 mm (50 mils), corresponding to –9 Vdc.
Q7: Is this model compatible with older 3300 series components?
A7: Yes, it is backward compatible with 3300 5 mm and 8 mm systems.
Q8: How is EMI/RFI immunity handled?
A8: The Proximitor Sensor is shielded and certified for CE without needing metal conduit.
Q9: What is the linear measurement range?
A9: The system provides a linear range of 2 mm (80 mils) from 0.25 mm to 2.3 mm.
Q10: What kind of material is used for the probe tip?
A10: Polyphenylene Sulfide (PPS), offering high chemical and thermal resistance.
