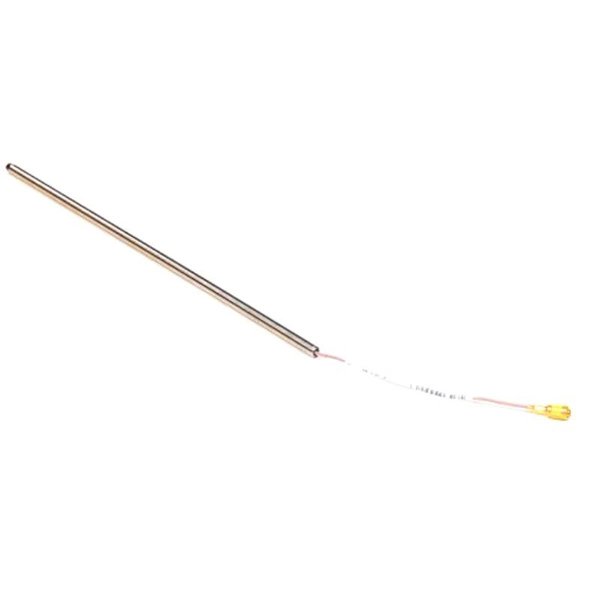

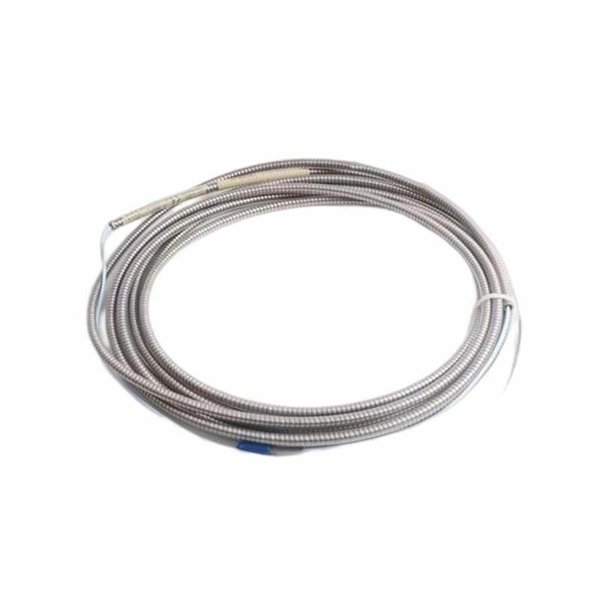

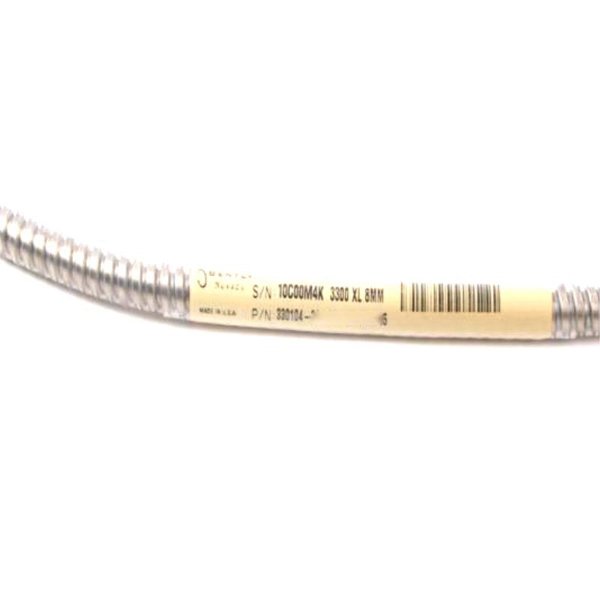

Bently Nevada 330104-08-15-10-02-CN 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330104-08-15-10-02-CN
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:36
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330104-08-15-10-02-CN is part of the 3300 XL 8 mm Proximity Transducer System, featuring a probe with M10 x 1 thread and armored cable. It measures the distance between the probe tip and a conductive surface, delivering voltage output proportional to static (position) or dynamic (vibration) displacement. This system supports complete interchangeability and complies with API 670 standards.
Applications
-
Vibration monitoring in rotating machinery
-
Shaft position and displacement detection
-
Keyphasor speed reference signals
-
Use in steam turbines, compressors, and motors
-
Suitable for both standard and extended temperature applications
Product Advantages
-
Full compliance with API 670
-
Backward and cross-series compatibility
-
Robust armor and connector design with high pull strength
-
High immunity to RFI/EMI
-
Optional FluidLoc cable to prevent oil migration
-
Quick installation with SpringLoc terminals and ClickLoc connectors
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330104-08-15-10-02-CN |
| Probe Type | 3300 XL 8 mm, M10 x 1 armored |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Tip Diameter | 8.0 mm |
| Case Material | AISI 303 or 304 stainless steel |
| Operating Temp (Probe) | -52°C to +177°C (Standard), up to +218°C (ETR) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended ≥76.2 mm (3 in) |
| Humidity Resistance | <3% change in scale factor @ 93% RH (IEC 68 2 3, 56 days) |
| Pressure Seal | Viton O-ring (not pre-tested; user responsibility for containment) |
| Connector Type | Miniature coaxial ClickLoc with protector |
| Certifications | ATEX, IECEx, CSA, CE, FCC, RoHS, SIL2/SIL3 |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of this probe?
A1: It detects shaft vibration and position using eddy current technology.
Q2: Can it be used in high-temperature environments?
A2: Yes, extended temperature versions support up to 218°C for the probe tip.
Q3: Does it meet API 670 standards?
A3: Yes, it fully complies with mechanical and performance aspects of API 670.
Q4: What kind of machinery is it typically used on?
A4: It’s ideal for fluid-film bearing machines, including turbines and compressors.
Q5: Is it compatible with previous Bently Nevada 3300 systems?
A5: Yes, it is both electrically and mechanically compatible with non-XL 3300 series.
Q6: What does the armored cable do?
A6: It provides added mechanical protection and environmental shielding.
Q7: Is calibration required before installation?
A7: No, factory calibration is standard for AISI 4140 steel targets.
Q8: Can the connectors be installed without tools?
A8: Yes, the ClickLoc connectors are finger-tightened and tool-free.
Q9: What is the standard gap setting for radial vibration?
A9: The recommended gap is approximately 1.27 mm (50 mils).
Q10: How long is the expected cable bend radius?
A10: The minimum bend radius is 25.4 mm (1.0 inch).
