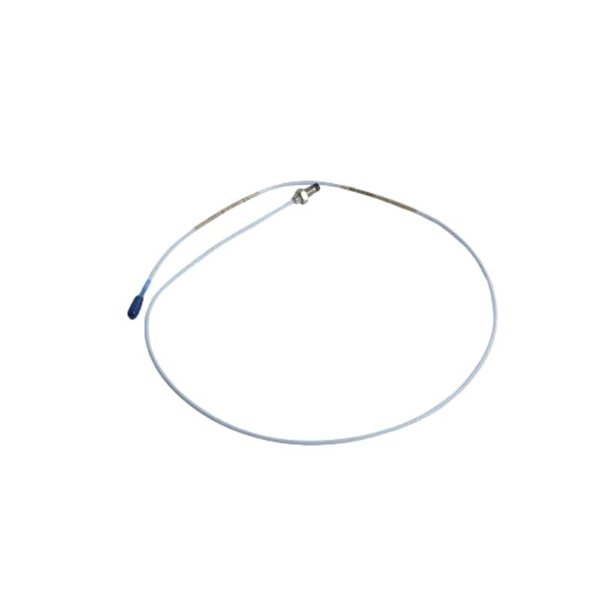

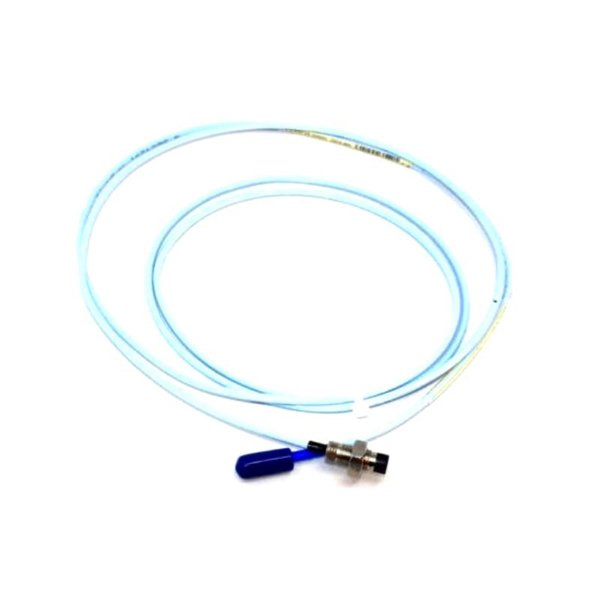

Bently Nevada 330730-080-02-05 3300 XL 11mm Extension Cable

The Bently Nevada 330730-080-02-05 is part of the 3300 XL series of proximity transducer systems developed by Bently Nevada, a globally respected name in condition monitoring and machinery protection systems. Specifically, this model is an extension cable, designed to work in conjunction with the 3300 XL 11 mm Proximity Transducer System, which includes the probe, extension cable, and proximitor sensor.

This 8-meter (approx. 26.2 feet) extension cable serves as a critical component in transmitting signals from the proximity probe to the proximitor sensor, ensuring signal integrity over extended distances in demanding industrial environments. It is engineered for reliability in harsh environments, offering secure mechanical connections, high EMI/RFI immunity, and long-term stability. The cable is also fitted with environmentally sealed connectors, making it suitable for field installations where exposure to oil, vibration, or contaminants is common.

Product Specifications

Applications

The 330730-080-02-05 extension cable plays a pivotal role in various machinery monitoring systems, particularly in applications that require robust and long-distance signal transmission from proximity probes to proximitor sensors. Typical applications include:

• Turbomachinery Monitoring: Installed in systems monitoring critical rotating machinery such as steam turbines, gas turbines, compressors, and pumps.

• Condition Monitoring Systems: Provides clean, uninterrupted signal pathways in vibration monitoring setups used for predictive maintenance.

• Industrial Rotating Equipment: Suitable for monitoring shaft vibration and position in motors, generators, and gearboxes.

• Hazardous Environments: Rugged design makes it ideal for refineries, chemical plants, and offshore platforms.

• OEM Equipment Integration: Commonly integrated into OEM monitoring and protection systems by major equipment manufacturers.

• Retrofitting Legacy Systems: Used when upgrading or extending legacy proximity probe systems with modern monitoring capabilities.

Advantages

1. Exceptional Signal Integrity

   The 330730-080-02-05 is designed with coaxial double shielding to minimize signal loss and ensure high-quality, noise-free signal transmission over long distances.

2. Environmental Resilience

   Its robust construction, sealed connectors, and fluoropolymer jacket enable it to function reliably in high-temperature, oily, or dirty industrial environments.

3. API 670 Compliance

   This cable meets the requirements of API 670, ensuring it can be confidently deployed in high-end turbomachinery monitoring and protection systems.

4. Interchangeable Compatibility

   Fully compatible with 3300 XL 11 mm proximity probes and proximitors, offering system flexibility and reducing downtime during maintenance or expansion.

5. Wide Operating Temperature Range

   With a range from -51°C to +177°C, this cable is suitable for applications in extreme industrial environments, both hot and cold.

6. Secure Mechanical Connection

   The miniature coaxial connectors are molded and sealed, providing strong, vibration-resistant connections that reduce failure points in high-vibration environments.

7. Ease of Installation and Replacement

   The flexible design and consistent connector sizing simplify installation, maintenance, and replacement, minimizing installation error.

8. Field-Proven Reliability

   Used in thousands of industrial facilities worldwide, the 330730-080-02-05 is trusted for its long operational life and consistent performance.

FAQ(Frequently Asked Questions)

1. What system is the 330730-080-02-05 extension cable designed for?

   It is specifically designed for use with the Bently Nevada 3300 XL 11 mm Proximity Transducer System.

2. What is the length of this cable?

   The 330730-080-02-05 is 8 meters (26.2 feet) long.

3. Can I use this extension cable with other probe sizes like 5 mm?

   No, it is optimized for the 11 mm probe system. Mixing components from different sizes can result in incorrect readings.

4. What are the environmental protections of this cable?

   It has environmentally sealed connectors and a durable fluoropolymer jacket, ideal for harsh industrial conditions.

5. What is the maximum temperature rating for this cable?

   It supports temperatures up to +177°C (+350°F).

6. Is this cable compliant with industry standards?

   Yes, it is compliant with CE, RoHS, and meets API 670 specifications.

7. Can I cut or shorten the cable for custom installation?

   No, factory-length cables are calibrated to specific lengths; cutting may compromise signal accuracy and system compliance.

8. What is the connector type used on this cable?

   It uses a miniature coaxial connector with a molded boot for secure fit and protection.

9. Is the cable shielded against EMI?

   Yes, it features high EMI/RFI immunity due to its coaxial double shielding.

10. How much does the 330730-080-02-05 cable weigh?

    0.36 kg, depending on jacket thickness and exact configuration.
