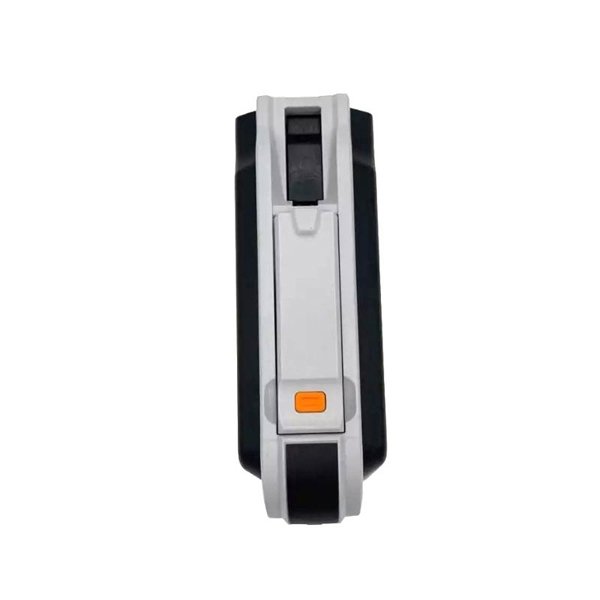

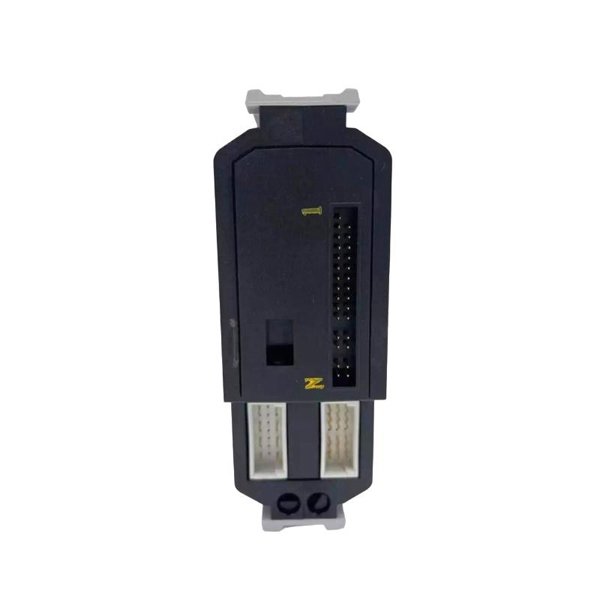

Emerson KJ3212X1-BK1 S-Series Pulse Count Input Card

The Emerson KJ3212X1-BK1 S-Series Pulse Count Input Card is an advanced input module designed for DeltaV distributed control systems (DCS). It specializes in capturing, conditioning, and processing high-frequency pulse signals from field devices such as flow meters, speed sensors, and counters.

This module ensures accurate pulse counting and conversion into process variables, which are then transmitted to the DeltaV controller for process monitoring and control. Its design provides robust signal integrity, noise immunity, and reliable operation in demanding industrial environments.

With advanced self-diagnostics, hot-swap capability, and seamless integration into the DeltaV system, the KJ3212X1-BK1 is a preferred solution for industries requiring precise pulse measurement and reliable data acquisition.

Product Specifications

Product Applications

The KJ3212X1-BK1 is widely deployed across process industries that require accurate pulse counting and frequency signal measurement. Key applications include:

• Flow Measurement: Interfaces with turbine, positive displacement, and magnetic pulse-type flow meters.

• Speed Monitoring: Captures signals from tachometers, encoders, and rotational speed sensors.

• Batch Control: Provides accurate pulse-based counting for batch processes in chemical and pharmaceutical industries.

• Energy Monitoring: Monitors pulse outputs from utility meters and energy consumption devices.

• Industrial Automation: Supports pulse-based input signals from counters, relays, and frequency transmitters.

• Process Optimization: Converts real-time pulse data into process variables for precise control strategies.

Product Advantages

The Emerson KJ3212X1-BK1 S-Series Pulse Count Input Card provides significant advantages in control and automation:

• High Accuracy: Captures high-frequency pulse signals with minimal error.

• Signal Integrity: Strong isolation reduces noise interference and prevents ground loop issues.

• Flexibility: Supports multiple pulse sources such as flow, speed, and energy monitoring devices.

• Hot-Swappable Design: Enables module replacement without shutting down the DeltaV system.

• Diagnostics and Monitoring: Built-in self-tests and status indicators enhance reliability and troubleshooting.

• Redundancy Support: Can operate in redundant I/O configurations for maximum availability.

• Seamless DeltaV Integration: Automatically recognized by DeltaV system for simplified configuration.

• Rugged Build: Designed to withstand harsh process environments, ensuring long-term operation.

FAQ

1. What type of input signals can the KJ3212X1-BK1 process?

   It supports pulse, contact closure, and frequency input signals.

2. How many input channels are available on this module?

   The module provides 8 isolated input channels.

3. What is the maximum pulse frequency supported?

   The module supports pulse frequencies up to 10 kHz.

4. Does the module support redundant operation?

   Yes, it can be configured in redundant I/O setups for enhanced system reliability.

5. How does the card communicate with the DeltaV controller?

   Through the DeltaV backplane, where process variables are transferred digitally.

6. Can the card be hot-swapped during operation?

   Yes, it supports hot-swapping, allowing replacement without shutting down the system.

7. What type of isolation is provided between channels?

   It includes galvanic isolation between channels and from channels to the system bus.

8. How are diagnostic errors reported?

   Errors are reported through DeltaV system diagnostics and local status LEDs.

9. Does the module require external power supply?

   No, it receives its power from the DeltaV system backplane.

10. What are typical applications of this pulse count card?

    Flow monitoring, speed measurement, energy metering, and batch process control.
