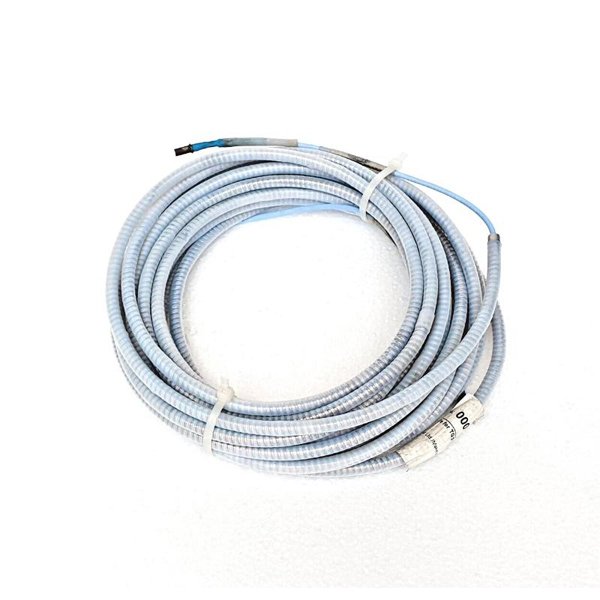

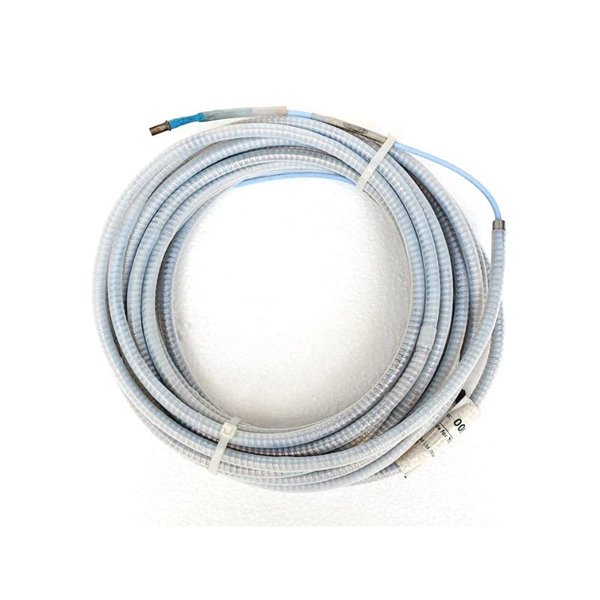

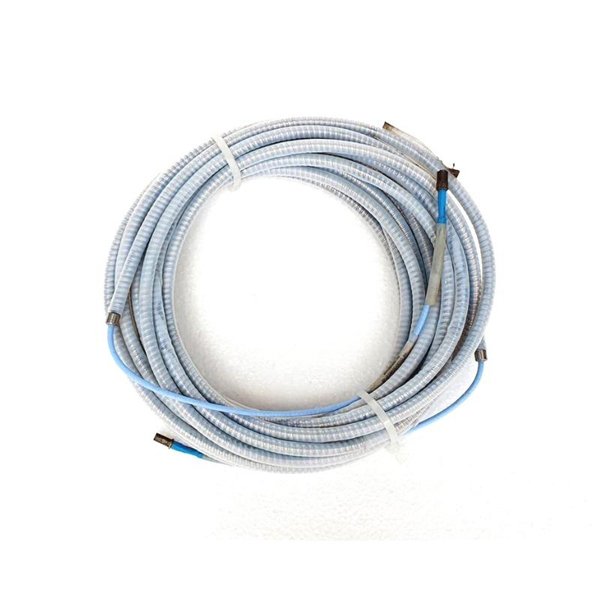

Bently Nevada 330130-075-01-05 3300 XL Standard Extension Cord

The Bently Nevada 330130-075-01-05 3300 XL Standard Extension Cord is a factory-manufactured extension cable designed to be used with the Bently Nevada 3300 XL series proximity transducer systems. This specific model features a length of 7.5 meters and is equipped with TNC to TNC connectors, ensuring compatibility with standard 3300 XL proximity probes and Proximitor sensors. Engineered for environments demanding high performance and long-term durability, this extension cord provides an essential link in delivering accurate, real-time vibration and shaft position monitoring across industrial assets.

Whether installed in steam turbines, compressors, or electric motors, this cable ensures signal clarity, robust EMI protection, and reliable mechanical integrity. The cable’s construction supports precise communication between sensor components, which is crucial for machinery protection and diagnostics in mission-critical operations.

Key Features

• Fixed 7.5-Meter Length: Factory-tested precision length ensures standardized installation and consistent signal performance.

• Industrial-Grade Shielding: Full-length shielding provides excellent resistance against EMI and RFI noise in demanding environments.

• Rugged Connectors: TNC-to-TNC design enhances mechanical connection integrity and resistance to vibration loosening.

• High-Temperature Tolerance: Suitable for installations exposed to elevated temperatures and harsh industrial conditions.

• Plug-and-Play Design: Enables rapid field installation without cutting, crimping, or terminating cables manually.

• System Compatibility: Seamless integration with 3300 XL proximity transducers and Proximitor sensors.

Technical Specifications

Industry Applications

The 330130-075-01-05 cable is used across a wide range of industrial applications that demand real-time monitoring and protection of rotating assets:

• Oil & Gas – For compressors, turbines, and motors in upstream and downstream systems.

• Power Generation – Installed on steam, hydro, and gas turbines for shaft position monitoring.

• Chemical & Petrochemical Plants – Ensures machinery integrity in continuous process industries.

• Marine & Offshore – Supports condition monitoring of shipboard propulsion and auxiliary systems.

• Mining – Enhances the reliability of crushers and conveyor systems in heavy-duty conditions.

• Pulp & Paper – Used for condition monitoring of rollers and rotary machinery.

Product Advantages

• Consistent Signal Performance: Maintains signal fidelity over extended distances without signal loss.

• EMI/RFI Shielding: Prevents interference in electrically noisy industrial environments.

• Temperature-Resistant Design: Functions reliably across extreme temperature ranges.

• Reliable Connector System: TNC ends resist vibration-induced loosening and maintain secure connectivity.

• Minimal Maintenance: Factory-assembled to eliminate field failures due to manual cable terminations.

• Standardized Cabling: Reduces inventory complexity and simplifies procurement and installation processes.

Frequently Asked Questions (FAQ)

1. What is the purpose of the 330130-075-01-05 extension cord?

   It connects the 3300 XL proximity probe to the Proximitor sensor, transmitting signals for vibration and displacement monitoring.

2. Is this cable compatible with all Bently Nevada proximity probes?

   It is specifically designed for 3300 XL proximity transducers; compatibility with other series should be verified.

3. What connectors does this model use?

   TNC to TNC factory-installed connectors are used to ensure secure and standardized connections.

4. Can this cable be used in high-temperature applications?

   Yes, it supports a wide operating temperature range of -51°C to +177°C.

5. Is the cable shielded?

   Yes, it features coaxial shielding to reduce electromagnetic and radio frequency interference.

6. What happens if the bend radius is exceeded?

   Exceeding the minimum bend radius (25.4 mm) can damage the cable and degrade signal performance.

7. Can the cable be repaired if damaged?

   It is not recommended to repair; damaged cables should be replaced to maintain signal integrity and system reliability.

8. How is this cable different from the 330130-070-00-00?

   The primary difference is in length and connector type. The 330130-070-00-00 has BNC connectors and a 7-meter length.

9. Is there a part number suffix that indicates connector types?

   Yes, the suffix “01-05” denotes TNC-to-TNC connectors in this cable configuration.

10. How can I identify this cable in the field?

    The cable is color-coded blue and includes product labeling indicating the model and length.
