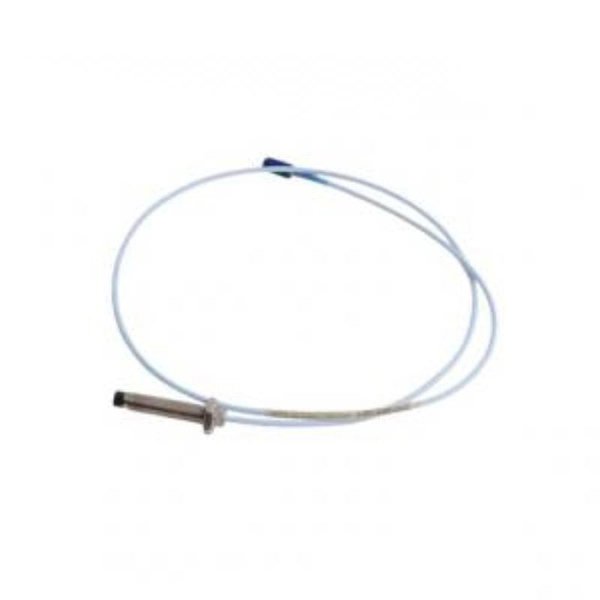

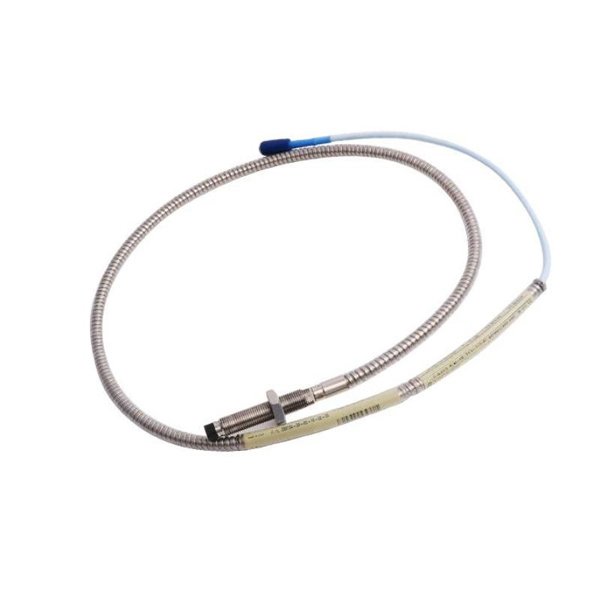

Bently Nevada 330102-00-33-05-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330102-00-33-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision proximity measurement device designed for machinery protection and condition monitoring. It is part of the globally recognized 3300 XL series, a trusted line of proximity probes widely deployed in power generation, oil & gas, petrochemical, and heavy industrial sectors.

This probe uses advanced eddy current technology to detect the relative position and vibration of rotating shafts and other critical machinery components. With robust construction, superior linearity, and enhanced environmental durability, it ensures accurate displacement measurements even in harsh operating conditions. Its compatibility with Bently Nevada 3300 XL Proximitor sensors and extension cables makes it a flexible solution for a wide range of monitoring systems.

Technical Specifications

Product Applications

The 330102-00-33-05-02-00 probe is widely used in industries where machine health monitoring is critical. Typical applications include:

• Monitoring radial and axial shaft displacement in turbines, compressors, and motors.

• Detecting shaft vibration to prevent catastrophic equipment failures.

• Measuring rotor dynamic behavior in steam turbines and gas turbines.

• Integration with Bently Nevada protection systems for trip signals and alarms.

• Condition-based monitoring programs in refineries, petrochemical plants, and power plants.

• Early fault detection in bearings, gearboxes, and rotating shafts.

Product Advantages

• High Accuracy and Linearity: Provides consistent linear response across the entire measurement range, ensuring reliable readings.

• Rugged Industrial Design: Built to withstand extreme environments, including high temperature, vibration, and corrosive atmospheres.

• Extended Cable Length Options: Available with different cable lengths to accommodate installation flexibility without signal degradation.

• Wide Compatibility: Fully compatible with Bently Nevada 3300 XL Proximitor sensors and monitoring systems.

• High Reliability: Proven track record in mission-critical machinery protection applications worldwide.

• Hazardous Area Certification: Safe for use in explosive or hazardous plant environments, meeting ATEX and CE standards.

FAQ

Q1: What is the operating principle of the 3300 XL 8 mm probe?

A1: It operates on eddy current technology, detecting changes in magnetic fields to measure the distance between the probe tip and the shaft surface.

Q2: What type of surfaces can the probe measure accurately?

A2: It is optimized for conductive metallic surfaces, typically steel shafts, but may require calibration for other materials.

Q3: Can the probe be used with non-Bently Nevada proximitor modules?

A3: For best performance, it should be paired with Bently Nevada 3300 XL Proximitor sensors. Using non-matching components may cause accuracy issues.

Q4: What is the probe’s frequency response capability?

A4: It supports measurement frequencies up to 10 kHz, suitable for most rotating machinery applications.

Q5: How does the probe maintain calibration over long distances?

A5: It uses matched cable assemblies and Proximitor sensors to ensure system calibration integrity, even at extended lengths.

Q6: Does temperature affect measurement accuracy?

A6: While extreme temperatures may affect material properties, the probe is designed to maintain accuracy across -35 °C to +177 °C.

Q7: Is the probe resistant to electrical noise in industrial environments?

A7: Yes, the coaxial cable design and robust shielding minimize interference from electromagnetic noise.

Q8: How is shaft vibration amplitude calculated from probe signals?

A8: The proximitor converts probe signals into a voltage proportional to shaft displacement, which is then analyzed by the monitoring system.

Q9: Can multiple probes be installed on a single machine?

A9: Yes, typically two probes are installed orthogonally to measure both X and Y axis vibrations, and additional probes may monitor axial displacement.

Q10: How does this probe compare to the 5 mm series?

A10: The 8 mm series provides a wider linear range and is better suited for larger shaft diameters, while the 5 mm series is used in confined installation spaces.
