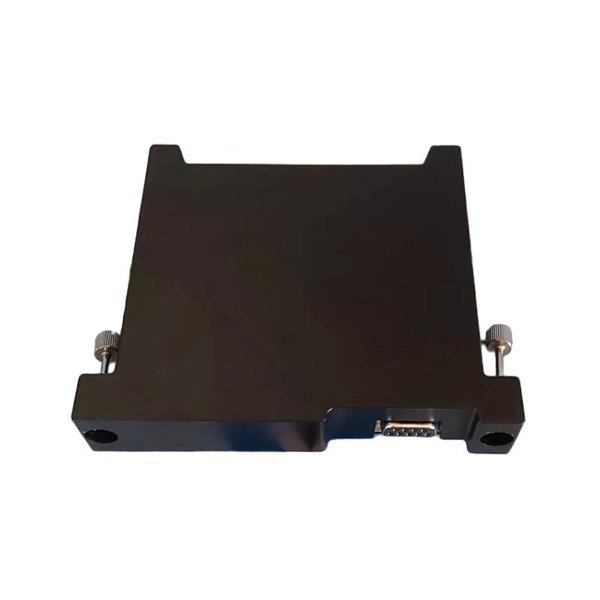

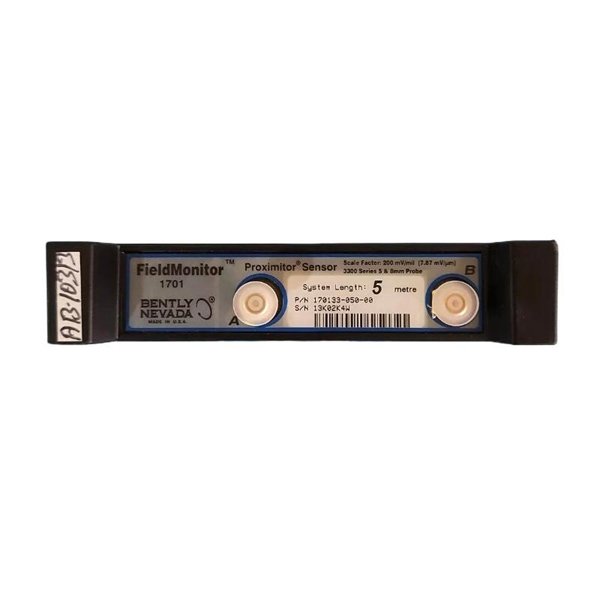

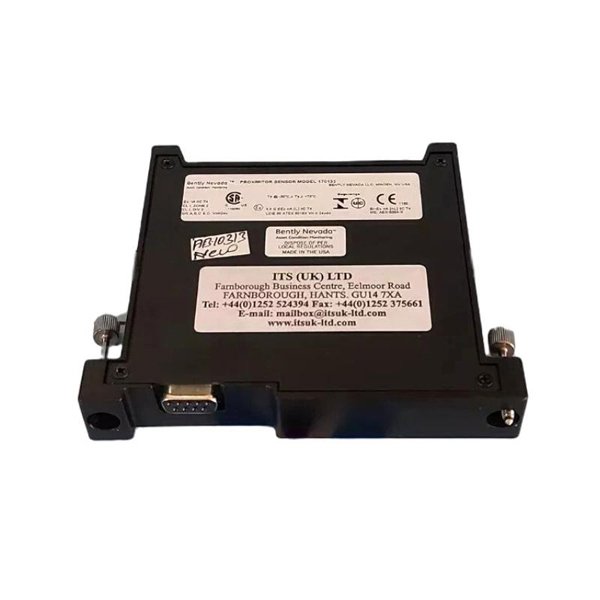

Bently Nevada 170133-050-00 3300 Internal Dual Proximitor Module

The Bently Nevada 170133-050-00 3300 Internal Dual Proximitor Module is a critical component in Bently Nevada’s renowned 3300 monitoring system, designed to provide precise non-contact measurement of shaft vibration and position. This module integrates two Proximitor channels within a single module, offering compactness, efficiency, and high accuracy.

The dual Proximitor configuration allows simultaneous monitoring of two independent proximity probe signals, making it highly effective for applications where both radial vibration and axial position must be monitored in real time. Engineered to meet API 670 standards, the 170133-050-00 ensures reliability and consistency in demanding industrial environments such as turbines, compressors, and rotating machinery across oil, gas, and power generation industries.

Product Parameters

Product Applications

• Shaft Vibration Monitoring – Provides high-precision radial vibration measurements for rotating machinery.

• Shaft Position Monitoring – Tracks shaft axial position for thrust-bearing health assessment.

• Turbomachinery Protection – Ideal for turbines, compressors, and expanders requiring continuous monitoring.

• API 670 Compliance – Meets industry requirements for machinery protection systems.

• Condition-Based Maintenance – Enables predictive analysis to reduce downtime and maintenance costs.

• Critical Plant Assets – Used in oil refineries, petrochemical plants, and power generation stations where reliability is vital.

Product Advantages

1. Dual Channel Integration – Combines two Proximitor channels in one module for space and cost efficiency.

2. High Accuracy – Provides precise vibration and position measurements within ±5% error margin.

3. Wide Compatibility – Works seamlessly with 3300 XL Proximity Probe Systems.

4. Broad Frequency Response – Covers DC to 10 kHz, suitable for a wide range of machinery monitoring.

5. API 670 Compliance – Meets global standards for machinery protection systems.

6. Rugged Design – Operates reliably under harsh industrial environments.

7. Isolation Protection – Ensures safe and interference-free signal processing.

8. Scalable Monitoring – Easily integrated into multi-channel 3300 systems.

9. Reduced Rack Space – Dual channel module minimizes hardware footprint.

10. Proven Reliability – Built on decades of Bently Nevada monitoring expertise.

FAQ

1. What probe systems are compatible with the 170133-050-00?

   It is designed for use with the Bently Nevada 3300 XL Proximity Probe System.

2. How many channels does the module support?

   It provides two independent proximitor channels in one module.

3. What is the frequency response of the 170133-050-00?

   It supports DC to 10 kHz for accurate vibration measurement.

4. What is the linear measurement range?

   Depending on probe type, it covers 2 mm to 3.75 mm.

5. Does the module comply with API 670 standards?

   Yes, it is fully API 670 compliant.

6. How is the output signal scaled?

   Nominal sensitivity is ±200 mV/mil (7.87 mV/µm).

7. Can this module be integrated with other 3300 series modules?

   Yes, it integrates seamlessly into the Bently Nevada 3300 system.

8. What type of isolation does the module provide?

   It includes channel-to-channel and system isolation to reduce interference.

9. Is it suitable for axial position monitoring?

   Yes, it can be used for both radial vibration and axial position monitoring.

10. What industries typically use the 170133-050-00?

    It is primarily used in oil & gas, petrochemical, and power generation industries for turbomachinery monitoring.
