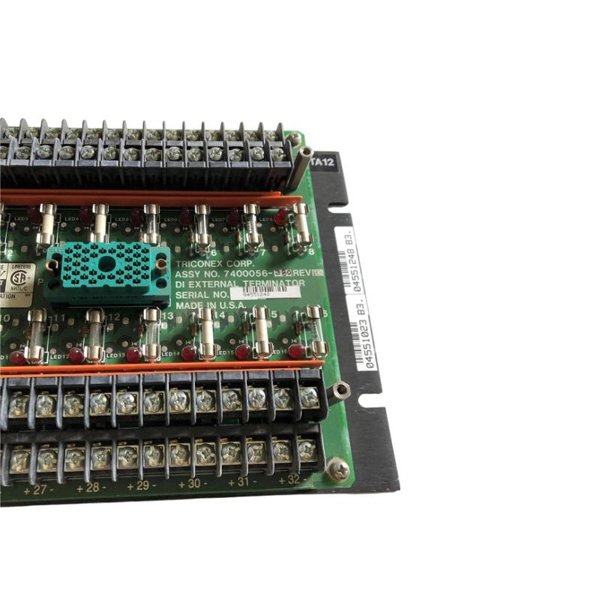

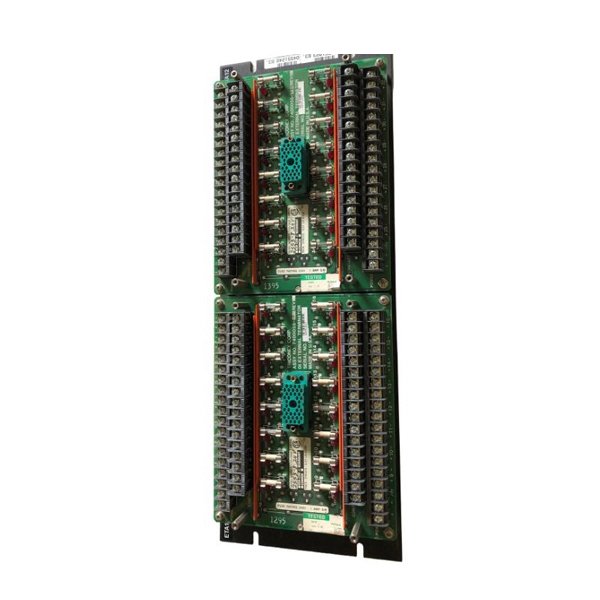

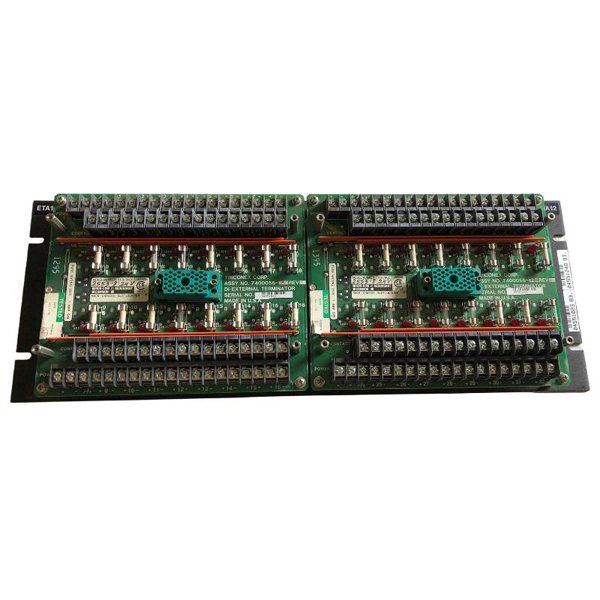

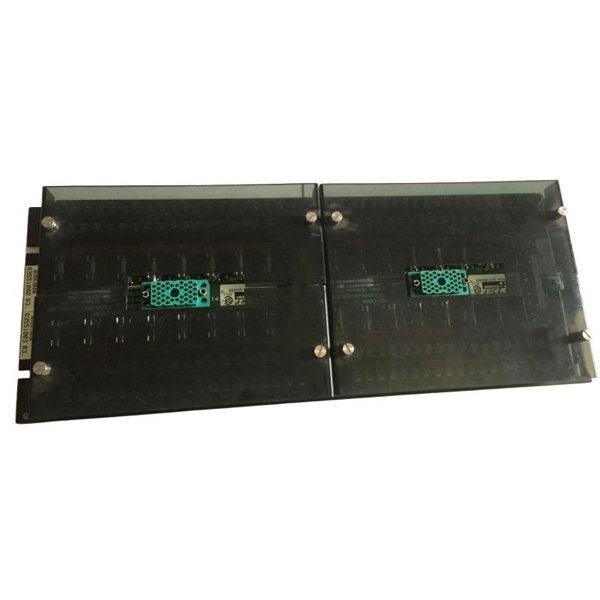

Triconex 3000110-380 Terminal Interface Module

The Triconex 3000110-380 Terminal Interface Module (TIM) is a specialized component within the Triconex safety and control ecosystem, designed to provide a dependable interface between field wiring and Triconex I/O modules. This module is integral to ensuring the accurate and safe transmission of signals from field devices—such as sensors, actuators, and transmitters—to the control logic housed in the Tricon system.

Engineered for high-reliability applications, the 3000110-380 features structured terminal layouts, secure signal isolation, and noise suppression capabilities. It allows for fast, clean, and error-free wiring while offering simplified diagnostics and maintenance. The TIM is typically mounted in control cabinets and used in systems requiring high-integrity, fault-tolerant operation.

Product Specifications

Product Applications

• Safety Instrumented Systems (SIS): Ensures reliable signal transmission for shutdown, alarm, and interlock operations.

• Emergency Shutdown (ESD) Panels: Interfaces with digital input and output devices used for emergency scenarios.

• Turbine and Compressor Safety Controls: Links sensors and actuators involved in turbomachinery protection.

• Distributed Control Systems (DCS): Used in conjunction with Triconex controllers for process control and monitoring.

• Critical Alarm and Event Recording Systems: Provides a stable interface for high-speed data acquisition and fault diagnostics.

• Refineries, Power Plants, Chemical Plants: Commonly deployed in environments requiring SIL3-compliant safety layers.

Product Advantages

• Robust Signal Integrity: Galvanic isolation and superior signal routing prevent cross-talk and interference in sensitive control systems.

• High System Compatibility: Seamlessly integrates with Triconex I/O modules, simplifying system design and deployment.

• Organized Cabling: Structured terminal arrangements promote neat wiring layouts, aiding faster maintenance and reduced human error.

• Fast Field Wiring Connection: Terminal blocks are easily accessible, making field installation and servicing efficient.

• Safety-Certified Design: Developed for use in safety-critical environments requiring IEC 61508 SIL3 compliance.

• Modular Integration: Designed to work flexibly with a wide range of Triconex modules for different signal types.

• Environmental Resilience: Built to perform reliably under industrial conditions involving vibration, dust, and temperature fluctuations.

Frequently Asked Questions (FAQ)

1. Can the 3000110-380 handle both analog and digital I/O signals?

   Yes, it supports both analog and digital signals depending on the connected I/O module.

2. Is this terminal module isolated per channel?

   Yes, the TIM provides galvanic isolation between each channel to reduce interference and maintain signal clarity.

3. Is the module compatible with SIL3-rated systems?

   Absolutely. It is fully suitable for use in SIL3-rated safety instrumented systems as per IEC 61508.

4. What kind of wiring can be connected to the terminal blocks?

   The module supports shielded and unshielded twisted pair wiring, typically used in industrial environments.

5. Are diagnostics supported directly on the TIM?

   Certain configurations support onboard diagnostic LEDs and test points for troubleshooting.

6. Can the terminal module be replaced without affecting the main controller?

   Yes, it is designed for modular replacement, provided standard operating procedures are followed.

7. What is the benefit of galvanic isolation in this module?

   It protects the control system from electrical noise and fault currents, enhancing overall safety and reliability.

8. How does this TIM integrate with digital output modules?

   It routes output signals from the controller to the field devices, ensuring proper voltage and current delivery.

9. Can the module be used in hazardous area installations?

   Yes, if mounted within appropriately certified enclosures compliant with zone or class requirements.

10. Does the module support loop-checking or signal simulation?

    Yes, it can be used in systems that allow signal testing and loop validation during commissioning or maintenance.
