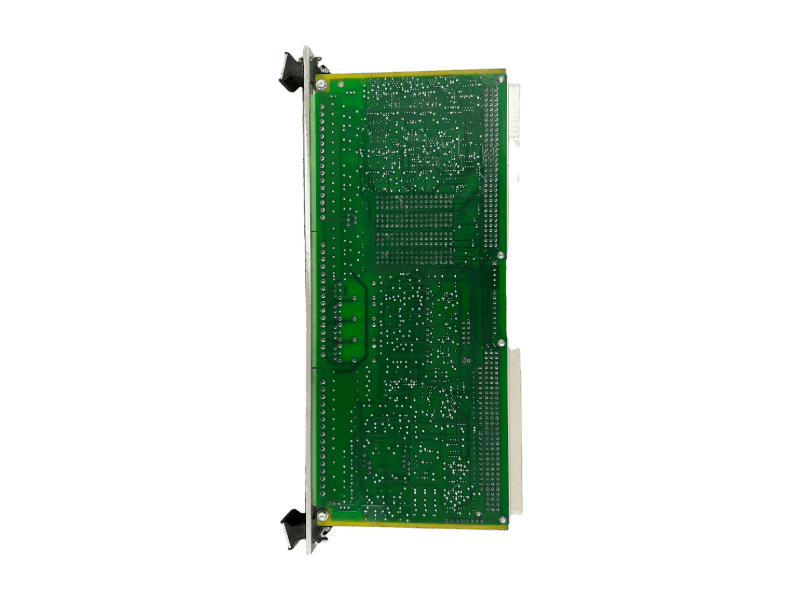

Vibro-Meter IOC4T 200-560-000-111 Input/Output Card
Item Number: IOC4T 200-560-000-111
Brand:Vibro-Meter
Lead Time: In stock
Description:Input/Output card
Payment: T/T
Product Description
The IOC4T 200-560-000-111 Input/Output Card is a signal interface card for the MPC4 mechanical protection card. It connects the MPC4 card to external sensors and control systems, responsible for signal input, distribution, and output.
Role: It is a dedicated slave device for the MPC4 mechanical protection card and must be used in pairs.
Mounting Method: It is installed on the rear of the ABE04x or ABE056, directly behind its corresponding MPC4 card, and connects to the rack backplane via two connectors.
Function & Features
- Signal Interfaces: The card's four dynamic signal inputs are designed for connecting dynamic sensors such as vibration (accelerometers, velocity sensors) and displacement. Its two tachometer (speed) inputs are designed for connecting a key phaser or speed sensor to provide a speed reference signal.
- Four buffered raw sensor signal outputs: The IOC4T 200-560-000-111 provides raw dynamic signals, unprocessed by the MPC4, for external analysis.
- 32 programmable open-collector outputs: Digital signals representing alarm states are transmitted to the rack backplane. The IOC4T 200-560-000-111 can be assigned, via jumpers, to an optional RLC16 relay card or IRC4 relay card installed in the same rack.
Specifications
|
Category |
Details |
|
Part Number |
IOC4T 200-560-000-111 |
|
Relay names |
RL1 to RL4 |
|
Type |
PE014005 |
|
Contact arrangement |
1 x NC or 1 x NO contact per relay (user configurable). The selected contacts are available on J2. |
|
Operate / release / bounce time |
Typically 8 / 8 / 6 ms |
|
MPC4 to IOC4T bus |
Similar to industry pack (IP) |
|
Height |
10.3 in |
|
Width |
0.8 in |
|
Depth |
4.9 in |
|
Weight |
0.25 kg |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
