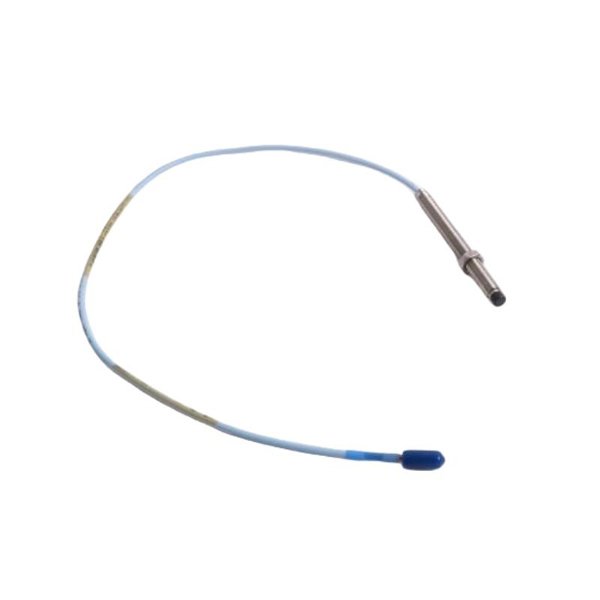

Bently Nevada 330102-60-90-10-02-00 3300 XL 8mm Proximity Probes

The Bently Nevada 330102-60-90-10-02-00 3300 XL 8mm Proximity Probe is a high-precision sensor designed for vibration and displacement monitoring in rotating machinery. Built under the globally recognized 3300 XL series, this probe ensures reliable and accurate measurements, even in the most demanding industrial environments. It uses proximity sensing technology to detect relative motion and shaft vibration, enabling predictive maintenance and helping operators prevent catastrophic failures.

The 3300 XL series is trusted worldwide for its consistency and compatibility across a broad range of turbomachinery and heavy-duty rotating assets. This specific model, with a 1-meter total length and a weight of 0.323 kg, is engineered for extended installation requirements while maintaining excellent signal integrity and low noise.

Product Parameters

Product Applications

The 330102-60-90-10-02-00 probe is widely used in critical rotating machinery across various industries:

• Power Generation: Monitoring turbines, generators, and compressors for shaft vibration and displacement.

• Oil & Gas: Ensuring reliability of pumps, compressors, and turboexpanders in upstream and downstream operations.

• Petrochemical Plants: Continuous monitoring of process machinery for safety and efficiency.

• Steel and Pulp & Paper Mills: Heavy-duty equipment vibration detection for operational stability.

• Marine and Aerospace: Monitoring propulsion and rotating components under harsh conditions.

Product Advantages

• High Accuracy: Provides precise vibration and displacement measurements, reducing false alarms.

• Extended Cable Length: 1-meter total length ensures flexibility in installation without performance degradation.

• Durability: Stainless steel body and rugged design make it resistant to harsh environments.

• Seamless Integration: Fully compatible with Bently Nevada’s 3300 XL Proximitor® sensors and monitoring systems.

• Reliability: Maintains stable performance across wide temperature ranges and challenging operating conditions.

• Low Noise and Interference Resistance: Designed for high signal integrity, even in electrically noisy environments.

• Proven Technology: Part of the globally trusted 3300 XL series, widely adopted in industrial reliability programs.

FAQ

1. How does the 3300 XL 8mm probe achieve stable vibration measurement in noisy environments?

   It uses coaxial shielding, high-quality insulation, and a balanced signal design to minimize external electrical interference.

2. What is the typical linear range of this proximity probe?

   The probe provides a linear measurement range of up to 2 mm, ensuring accuracy across typical shaft vibration levels.

3. How does the probe connect with the Proximitor® sensor module?

   It connects through a matched coaxial cable assembly, maintaining signal integrity and calibrated system accuracy.

4. Can this probe be used with non-Bently Nevada monitoring systems?

   While optimized for Bently Nevada systems, it may be integrated with other systems that support proximity probe inputs, provided calibration adjustments are made.

5. What is the impact of probe cable length on measurement accuracy?

   The probe, extension cable, and Proximitor® must be matched as a system; incorrect combinations can cause calibration errors.

6. How does temperature variation affect probe accuracy?

   The 3300 XL probe compensates for thermal expansion and maintains accuracy within the specified operating range.

7. What is the primary sensing principle behind the probe?

   It operates on an eddy current principle, detecting changes in the electromagnetic field caused by shaft movement.

8. How does the probe handle high-frequency vibration signals?

   With a frequency response up to 10 kHz, it can accurately capture high-frequency vibration components.

9. What type of materials can this probe effectively measure?

   It is calibrated for metallic targets, especially steel shafts commonly used in turbomachinery.

10. Is the probe backward compatible with earlier 3300 series systems?

    Yes, the 3300 XL design ensures backward compatibility with many legacy Bently Nevada systems.
