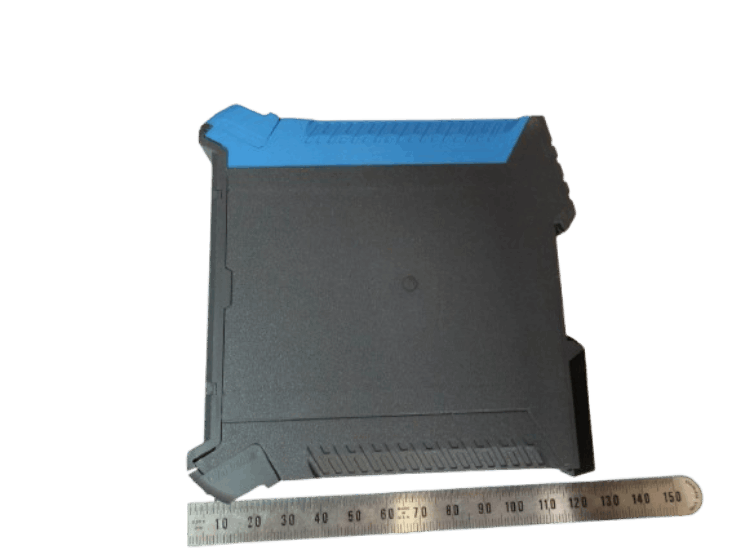

GSI127 244-127-000-017 Galvanic Separation Unit
Item Number: GSI127 244-127-000-017
Brand: Vibro-Meter
Lead Time: In stock
Description:Galvanic Separation Unit
Payment: T/T
Product Description
GSI127 244-127-000-017 Galvanic Separation Unit is a galvanic separation unit designed to work with signal conditioners, charge amplifiers, etc. in the measurement chain and sensors. It has a high electrical isolation of 4 kVRMS between the sensor and the monitor, and 50 VRMS of power supply and output signal isolation. It has explosion-proof certification and can be used in potentially explosive environments. No additional Zener diode safety barrier is required for intrinsically safe applications.
Function&Features
- Long-distance current signal transmission: GSI127 244-127-000-017 has the function of converting µA to mV, which is suitable for long-distance (two-wire) current signal transmission.
- Short-distance voltage signal transmission: GSI127 244-127-000-017 has the function of converting V to V, which is suitable for short-distance (three-wire) voltage signal transmission.
- Connecting multiple sensors: GSI127 244-127-000-017 can be used with a variety of sensors and measurement chains, such as vibration sensors (CA, CE, PV, VE series), dynamic pressure sensors (CP series), proximity sensors (TQ series), etc.
Specifications
|
Parameter |
Details |
Value |
|
Power supply (to GSI127) |
Input voltage range |
18 to 30 V<sub>DC</sub> |
|
Current consumption (no load on sensor side, with nominal 24 V<sub>DC</sub> supply) |
≤80 mA |
|
|
Current consumption (20 mA load on sensor side, with nominal 24 V<sub>DC</sub> supply) |
≤120 mA |
|
|
Input signal (sensor side) |
Supply (Ordering options B0x) |
20 V<sub>DC</sub> ±1 V<sub>DC</sub> |
|
Supply (Ordering options B21) |
8 mA ± 0.5 mA |
|
|
Impedance (Ordering options B0x) |
≤30 Ω |
|
|
Impedance (Ordering options B21) |
≥50 kΩ |
|
|
Dynamic range (Ordering options B0x) |
0 to 20 mA |
|
|
Dynamic range (Ordering options B21) |
0 to 20 V<sub>DC</sub> |
|
|
Overload protection (Ordering options B0x) |
26 mA |
|
|
Overload protection (Ordering options B21) |
22 V<sub>DC</sub> |
FAQs
Q: What is the brand?
A: Others
Q: What is the type?
A: Galvanic Separation Unit
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
