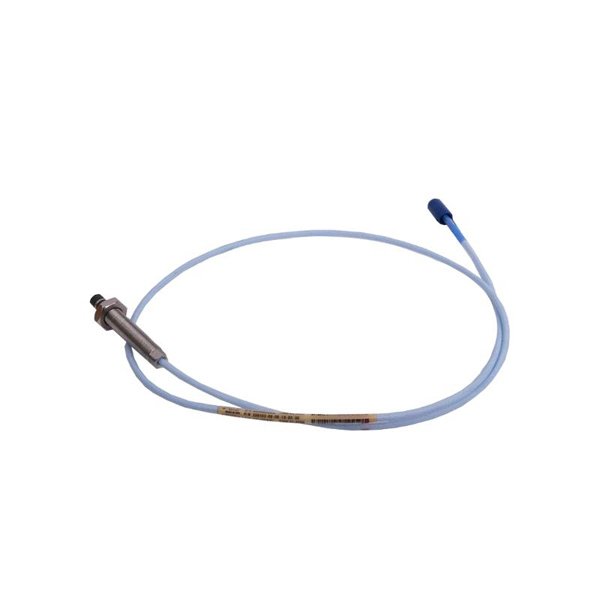

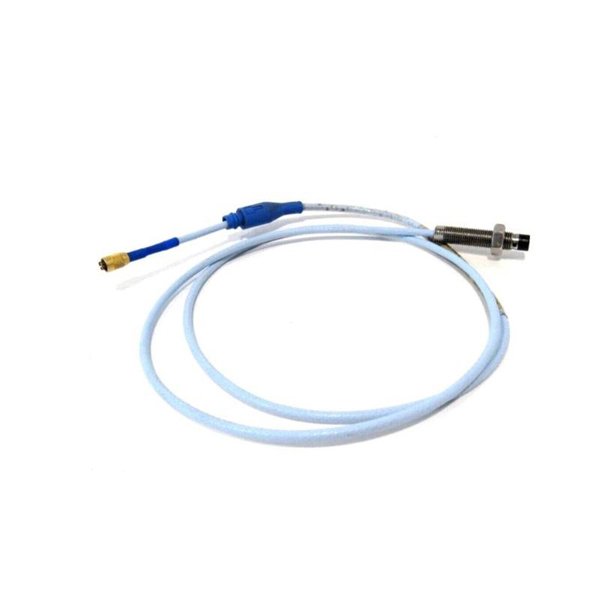

Bently Nevada 330101-30-63-10-02-00 3300 XL 8mm Proximity Probes

The Bently Nevada 330101-30-63-10-02-00 is a premium component within the 3300 XL 8mm Proximity Transducer System, manufactured by Bently Nevada, a globally recognized leader in machinery condition monitoring and protection. Designed for reliability and precision, this probe delivers consistent performance in harsh industrial environments, including turbines, compressors, pumps, and gearboxes.

As part of the proximity transducer system, it works together with a matching extension cable and Proximitor sensor to provide accurate non-contact measurements of shaft position and vibration. The model adheres to API 670 compliance and is known for its robust mechanical design and electrical stability.

Product Specifications

Product Applications

The 330101-30-63-10-02-00 proximity probe is widely used in a variety of industrial monitoring and protection systems, particularly in:

• Rotating Machinery Monitoring

  Monitors vibration, displacement, and shaft position in motors, turbines, compressors, and generators.

• Critical Machinery Protection Systems

  Serves as a key input to vibration and position monitoring systems to protect high-value machinery.

• Condition Monitoring

  Enables predictive maintenance by identifying wear, imbalance, and misalignment.

• API 670-Compliant Systems

  Frequently integrated into systems where API 670 compliance is mandatory.

Product Advantages

• High Reliability in Harsh Environments

  Designed for extended operation in high-temperature, high-vibration, and contaminated environments.

• Accurate, Repeatable Measurements

  Ensures consistent data output with minimal drift over time.

• API 670 Compliance

  Meets the strict standards required for critical process industries.

• Ease of Installation and Maintenance

  Modular components with standard thread options and connection schemes.

• Superior Mechanical Protection

  Armored cabling provides resistance to mechanical damage and chemical exposure.

• Electromagnetic Interference Shielding

  Excellent EMI immunity for consistent signal quality.

Frequently Asked Questions (FAQ)

1. What is the sensing range of the 330101-30-63-10-02-00 probe?

   The probe typically provides a linear sensing range of 2 mm, optimized for standard 4140 steel targets.

2. Is this model suitable for use in hazardous environments?

   Yes, the probe is built with robust insulation and shielding, suitable for harsh industrial conditions, though specific hazardous area certifications depend on the complete system.

3. Does it comply with API 670 standards?

   Yes, this proximity probe system meets API 670 specifications for machinery protection.

4. What material is the probe casing made from?

   The outer casing is made from corrosion-resistant stainless steel for durability.

5. Can the probe be used with extension cables of varying lengths?

   Yes, it is designed to work with matched Bently Nevada extension cables and Proximitor sensors as a complete system.

6. How should the probe be installed for optimal accuracy?

   It should be installed perpendicular to the shaft surface, with proper mechanical mounting to maintain gap integrity.

7. What is the connector type used in this model?

   This model features a 90° molded mini-coaxial male connector.

8. What is the purpose of the armor option in the cable?

   The armor offers added mechanical protection against abrasion and damage in industrial settings.

9. What is the typical service life of this probe?

   With proper installation and use, the probe can last several years under continuous industrial operation.

10. Can it be used in high-temperature applications?

    Yes, it is rated up to 177°C, making it suitable for many high-temperature industrial processes.
