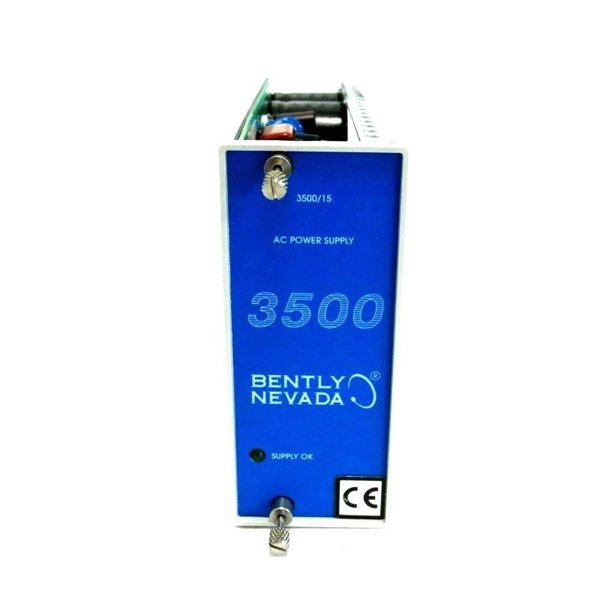

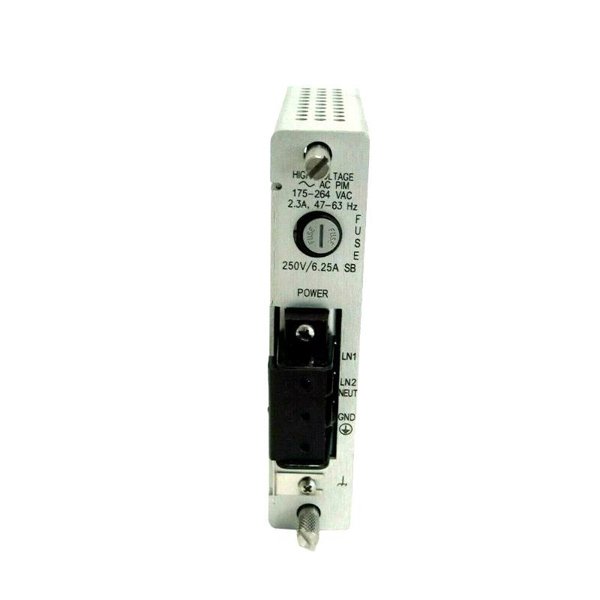

Bently Nevada 3500/15 106M1079-01+106M1081-01 Universal AC Power Supply Module

The Bently Nevada 3500/15 Universal AC Power Supply Module (model numbers 106M1079-01 and 106M1081-01) is a critical component within the 3500 Series Machinery Protection System. Designed to provide reliable and stable AC power to the system’s monitoring modules, this power supply module ensures continuous operation and optimal performance of the machinery protection system. The universal AC input capability allows the module to operate efficiently across a wide range of voltage inputs, enhancing its versatility in diverse industrial environments. With built-in protection features and rugged construction, this power supply module supports critical rotating machinery monitoring and protection in demanding industrial applications such as power generation, oil and gas, and heavy manufacturing.

Product Specifications

Applications

The Bently Nevada 3500/15 Universal AC Power Supply Module is primarily used to supply power to critical machinery protection modules within the 3500 system. Its applications include:

• Powering vibration monitoring modules for turbines, compressors, and pumps

• Providing reliable AC power to proximity probe modules in rotating machinery systems

• Supporting generator and motor protection systems in power plants

• Ensuring stable operation of condition monitoring modules in petrochemical facilities

• Facilitating machinery health diagnostics in heavy industrial manufacturing

• Integration within safety instrumented systems requiring consistent power delivery

Advantages

• Universal Input Voltage: Supports a wide AC voltage range (85 VAC to 264 VAC), allowing global use without needing separate models for different voltages.

• High Efficiency: Designed to deliver power efficiently, reducing energy consumption and heat generation.

• Reliable Power Output: Provides a stable +5 VDC regulated output to ensure consistent operation of connected modules.

• Robust Design: Engineered for harsh industrial environments with wide operating temperature tolerance.

• Compact Size: Fits neatly into 3500 Series rack module slots without occupying excessive space.

• Enhanced Safety Features: Built-in protections against over-voltage, short circuits, and thermal overload help maintain system integrity.

• Compatibility: Fully compatible with the 3500 Series machinery protection modules, facilitating seamless system integration.

• Proven Track Record: Widely adopted in industries worldwide for dependable machinery protection power supply.

Frequently Asked Questions (FAQ)

1. What is the input voltage range for the 3500/15 Universal AC Power Supply Module?

   It supports an input voltage range of 85 VAC to 264 VAC.

2. What output voltage and current does the module provide?

   The module delivers a regulated +5 VDC output at up to 5 Amps.

3. Can the module operate with both 50 Hz and 60 Hz power systems?

   Yes, it supports input frequencies from 47 Hz to 63 Hz.

4. Is the power supply module compatible with all 3500 Series racks?

   Yes, it is designed to fit standard 3500 Series rack slots.

5. What protection features are included in the module?

   It includes over-voltage protection, short circuit protection, and thermal overload protection.

6. How efficient is the power supply module?

   The efficiency is rated above 85%, ensuring minimal energy loss.

7. Can this power supply module be used in extreme temperature environments?

   Yes, it operates reliably between -40°C and 70°C.

8. Does the module provide power redundancy?

   The module itself does not provide redundancy, but it can be used alongside redundant power supplies in a system.

9. What happens if the input power fluctuates?

   The module has built-in voltage regulation to maintain stable output despite input fluctuations.

10. Is the power supply hot-swappable?

    Yes, the module is designed to be replaced or installed without shutting down the entire system, following proper procedures.
