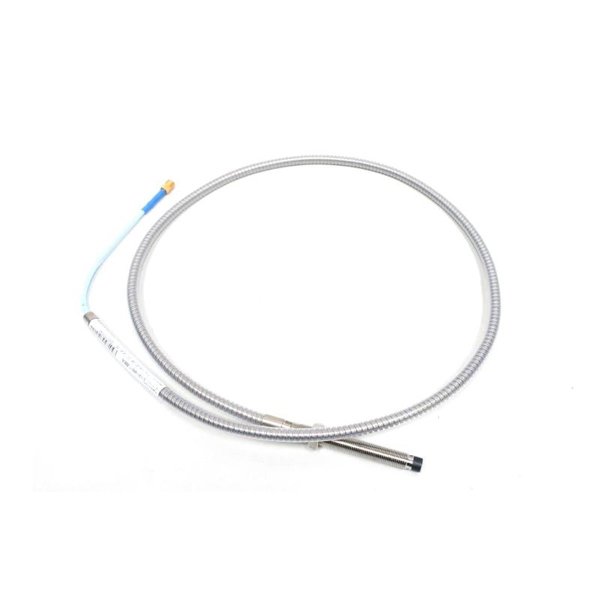

Bently Nevada 330102-00-20-10-01-00 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330102-00-20-10-01-00
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:53
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330102-00-20-10-01-00 is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurements on fluid-film bearing machinery. It features a rugged armored design, enhanced RFI/EMI immunity, and ClickLoc connectors for secure and tool-free installation. The probe system outputs a voltage proportional to the gap between the probe tip and the target surface, supporting both static and dynamic monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8 mm |
| Thread | 3/8-24 UNF |
| Total Length | 2.0 m |
| Weight | 0.646 kg |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0–10 kHz, +0, -3 dB |
| Operating Temp. (Probe) | -52°C to +177°C |
| Operating Temp. (Sensor) | -52°C to +100°C |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Shaft Diameter | ≥50.8 mm (recommended ≥76.2 mm) |
| Output Sensitivity | 7.87 V/mm ±5% (5m system) |
| Armor | Stainless steel with FEP outer jacket |
Applications
-
Vibration monitoring on turbines, compressors, and pumps
-
Shaft position and displacement measurement
-
Keyphasor signal generation for rotational speed
-
Overspeed protection systems (with appropriate application note)
Advantages
-
Fully compliant with API 670 standard
-
Backward and forward compatible with non-XL systems
-
ClickLoc connectors prevent loosening without tools
-
Enhanced RFI/EMI immunity for reliable operation in harsh environments
-
Rugged armored cable for mechanical protection
-
No need for component matching or recalibration
FAQ
Q1: What is the primary use of this probe?
A1: It is used for measuring vibration and position on rotating machinery such as turbines and compressors.
Q2: Is this probe compatible with older Bently Nevada systems?
A2: Yes, it is backward and forward compatible with non-XL 3300 8 mm and 5 mm systems.
Q3: Does it meet API 670 requirements?
A3: Yes, the 3300 XL 8 mm system complies fully with API 670 standards.
Q4: What is the recommended minimum shaft diameter for accurate measurement?
A4: At least 50.8 mm, with 76.2 mm recommended for best performance.
Q5: How is the connector secured?
A5: Using ClickLoc connectors which lock with a click and require no tools.
Q6: Can it operate in high-temperature environments?
A6: The standard probe is rated up to 177°C, with ETR variants rated higher.
Q7: What is the linear measurement range?
A7: 2 mm (80 mils), beginning approximately 0.25 mm from the target.
Q8: Does it require calibration to specific target material?
A8: Yes, it is factory-calibrated to AISI 4140 steel; other materials are available upon request.
Q9: How is the probe protected against liquid ingress?
A9: The armored version provides mechanical and environmental protection.
Q10: What is the total length of this model?
A10: This specific model has a total length of 2.0 meters.
