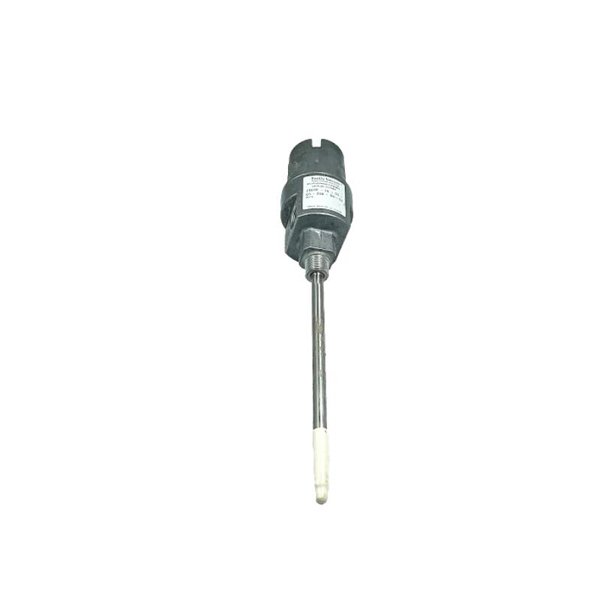

Bently Nevada 21000-16-10-00-077-03-02 Proximity Probe Housing Assemblies

The Bently Nevada 21000-16-10-00-077-03-02 Proximity Probe Housing Assembly is engineered to provide a secure and reliable housing solution for proximity probes used in vibration and displacement monitoring of rotating machinery. This assembly ensures that the probe is positioned accurately and protected from mechanical damage, contamination, and harsh environmental conditions.

Made from high-grade stainless steel, this housing assembly offers excellent durability, corrosion resistance, and robustness necessary for long-term operation in demanding industrial environments. Its design maintains the precise sensor alignment required for accurate measurements, crucial for machinery health diagnostics.

Ideal for use with Bently Nevada proximity probes, this housing assembly supports condition monitoring programs that help reduce unplanned downtime and extend the lifespan of industrial equipment.

Product Specifications

Product Applications

• Rotating Equipment Monitoring: Used to measure shaft vibration and displacement on turbines, compressors, pumps, and motors.

• Power Generation Plants: Critical for early detection of machinery faults, enabling preventive maintenance in power stations.

• Oil and Gas Industry: Suitable for upstream and downstream rotating equipment monitoring to avoid catastrophic failures.

• Chemical and Petrochemical Plants: Helps maintain continuous operation by monitoring critical rotating machinery.

• Manufacturing Facilities: Supports predictive maintenance programs by providing accurate data on equipment health.

• Heavy Industry: Suitable for harsh environments such as mining, steel production, and cement plants, where robust monitoring is essential.

Product Advantages

• Robust Construction: Manufactured from corrosion-resistant stainless steel to withstand harsh industrial environments.

• High Environmental Protection: Rated IP67 for excellent protection against dust and water immersion.

• Wide Operating Temperature Range: Reliable operation from -40°C up to +135°C suitable for extreme conditions.

• Accurate Probe Positioning: Precision design guarantees stable and accurate placement of proximity probes.

• Flexible Mounting Options: Threaded or flange mounting options provide installation versatility.

• Enhanced Vibration Durability: Can tolerate up to 15 g vibration without impacting sensor performance.

• Standardized Connector: Uses MIL-C-5015 circular connectors for secure and reliable electrical connections.

• Reduced Maintenance Costs: Protects probes from damage and environmental stress, extending probe life.

• Industry-Proven: Backed by Bently Nevada’s reputation for high-quality machinery protection products.

Frequently Asked Questions (FAQ)

1. What is the primary function of this housing assembly?

   It protects the proximity probe and ensures precise alignment for accurate vibration and displacement measurements.

2. Which probe models are compatible with this housing?

   Compatible with Bently Nevada Series 3300 and 7000 proximity probes.

3. Can this housing be used outdoors?

   Yes, with an IP67 rating, it is dust-tight and resistant to temporary water immersion, making it suitable for outdoor use.

4. What are the mounting options available?

   The housing supports threaded mounting and can be fitted with an optional flange.

5. What material is used for the housing?

   Made of high-quality 316-grade stainless steel for corrosion resistance and durability.

6. What temperature range can it operate in?

   It can operate reliably between -40°C and +135°C.

7. How much vibration can the housing withstand?

   The assembly tolerates up to 15 g of vibration within the frequency range of 10 to 2000 Hz.

8. What type of electrical connector does the housing use?

   It uses a MIL-C-5015 military-grade circular connector.

9. Is regular maintenance required?

   Minimal maintenance is needed; routine inspections for damage or wear are advised.

10. Will the housing affect the accuracy of the probe measurements?

    No, it is designed to maintain precise probe positioning to ensure measurement accuracy.
