Vibro-Meter ABE040 204-040-100-015 System Rack
Item Number: ABE040 204-040-100-015
Brand:Vibro-Meter
Lead Time: In stock
Description: System Rack
Payment: T/T
Product Description

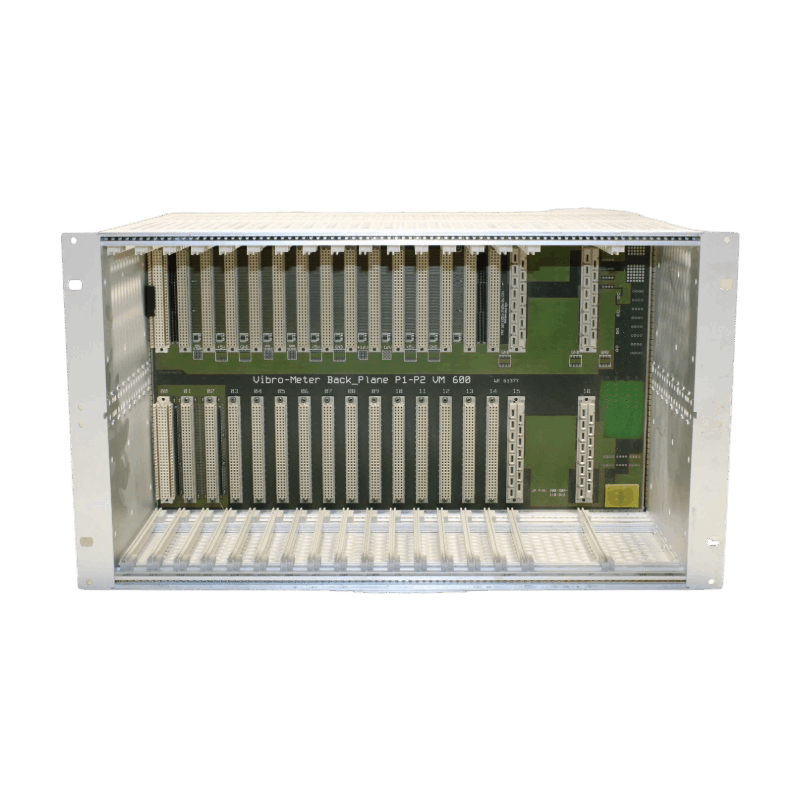

The ABE040 204-040-100-015 is a 6U high, 19-inch wide system chassis (rack). It provides installation space and power for all hardware modules of the machinery protection and condition monitoring system. As the electrical backbone, it combines modules such as power supply, CPU controller, signal processing card, input/output card and relay card into a single chassis to form a complete monitoring station.

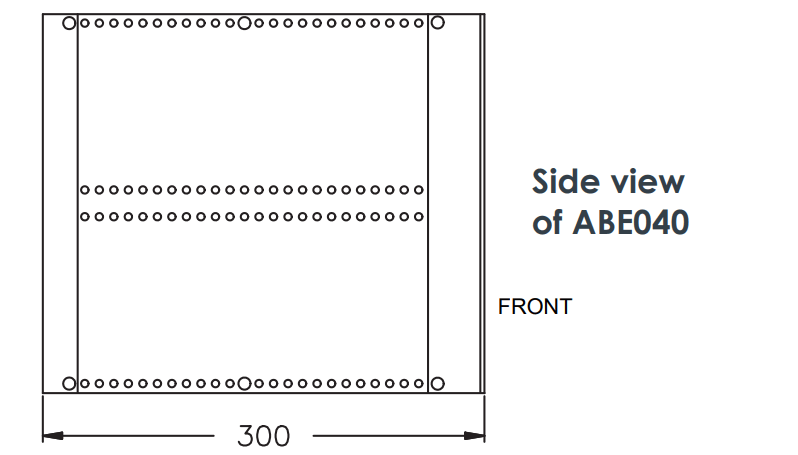

Note: The ABE040 rack has a front-to-back mounting structure, with signal processing modules (such as monitor cards and relay cards) installed in the front and corresponding input/output modules installed in the rear
Function & Features
- Dedicated Buses: The ABE040 204-040-100-015 supports the system's Tacho bus, Raw signal bus, and Open Circuit (OC) bus.
- Power Supply Status Monitoring: The power supply detection relay, located at the rear of the ABE040 204-040-100-015 chassis, monitors the operating status of the RPS6U power supply and provides status feedback via relay signals.
- Factory Preconfiguration: The power supply detection relay chassis comes pre-configured and ready for immediate use upon delivery.
Specifications
|
Category |
Specification |
Details / Notes |
|
Model |
ABE040 |
204-040-100-015 |
|
Slot Number Coding |
Range |
3 to 14 |
|
Defaults (Hard-Wired) |
Slot 03 = 3 (0011 binary) Slot 04 = 4 (0100 binary) ... Slot 13 = 13 (1101 binary) Slot 14 = 14 (1110 binary) |
|
|
Power Supply Check Relay |
Max. Switching Voltage |
30 VRMS/42.4 VAC |
|
Max. Switching Current |
1.4 AAC, 0.3 ADC |
|
|
Weight (Approx.) |
6.5 kg (14.3 lb) |
|
|
Note |
Weight is for the empty rack without RPS6U power supplies or modules (cards). |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
