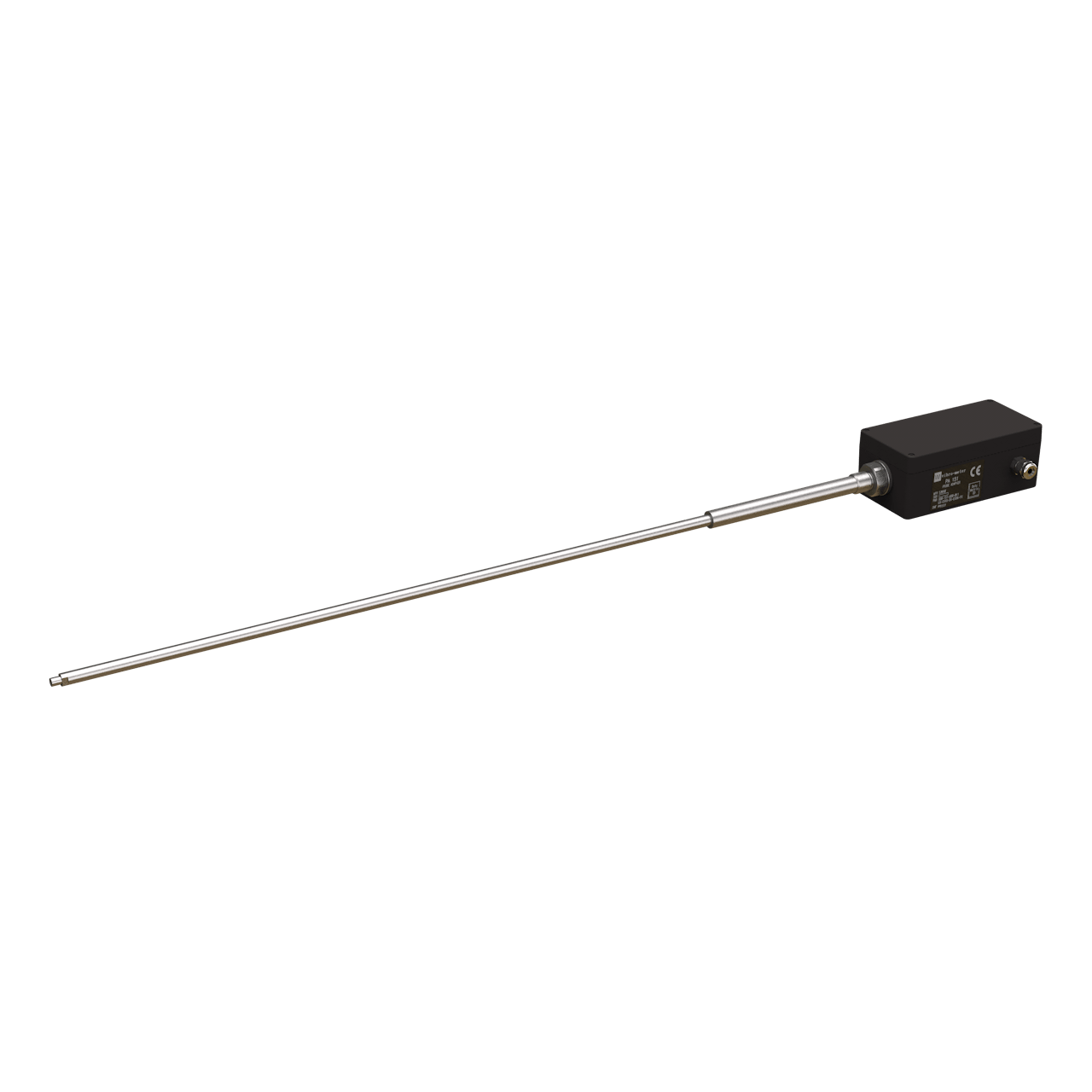

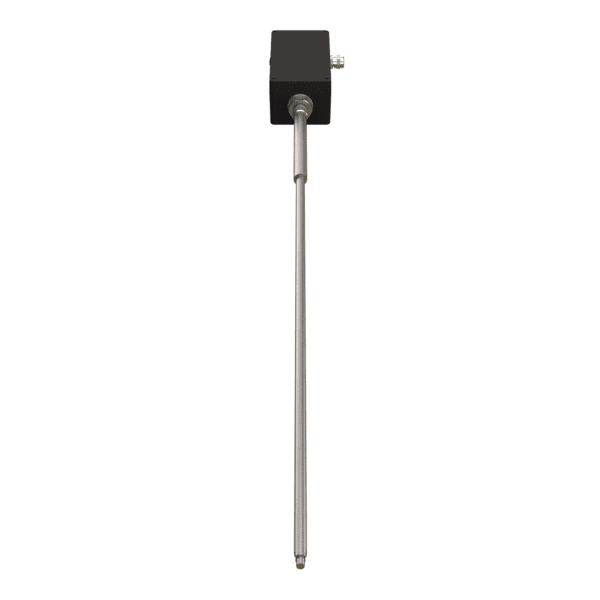

Vibro-Meter PA151 800-151-000-111 Probe Mounting Adapter
Item Number: PA151 800-151-000-111
Brand:Vibro-Meter
Lead Time: In stock
Description: Probe Mounting Adapter
Payment: T/T
Product Description
The PA151 800-151-000-111 probe mounting adapter is an accessory designed for the TQxxx series proximity measurement chain/system. It supports external mounting of reverse mounted proximity sensors such as the TQ912 without disassembling the device.
Function & Features
- Removable housing: The PA151 800-151-000-111 features a U-shaped bracket design that allows for probe gap adjustment or sensor replacement while the machine is running.
- Housing: Sealed die-cast polyester (corrosion and impact resistant).
- Adjustment rod: Stainless steel, length options 50–800 mm, adjustable mounting position (±10 mm).
- Thread and length options: A variety of adapter thread specifications and rod length options are available.
- Cable accessories: The PA151 800-151-000-111 is available with optional cable stuffing glands and flexible stainless steel hoses (additional protection).
Specifications
|
Parameter |
Details |
| Model | PA151 800-151-000-111 |
|
Type of Probe Mounting Adaptor |
Removable probe housing and probe adaptor rod |
|
Mounting Position Adjustment |
±0.39 in / ±10 mm |
|
Probe Housing Material |
Glass-fibre reinforced polyester |
|
Probe Housing Gasket Material |
Neoprene |
|
Probe Adaptor Rod Material |
Stainless steel 1.4301 |
|
Probe Adaptor Assembly Material |
Stainless steel 1.4305 |
|
Probe Temperature Range |
–40 to 212 °F / –40 to 100 °C |
FAQ
Q: What is the brand?
A: Spare
Q: What is the type?
A:Probe Mounting Adapter
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
