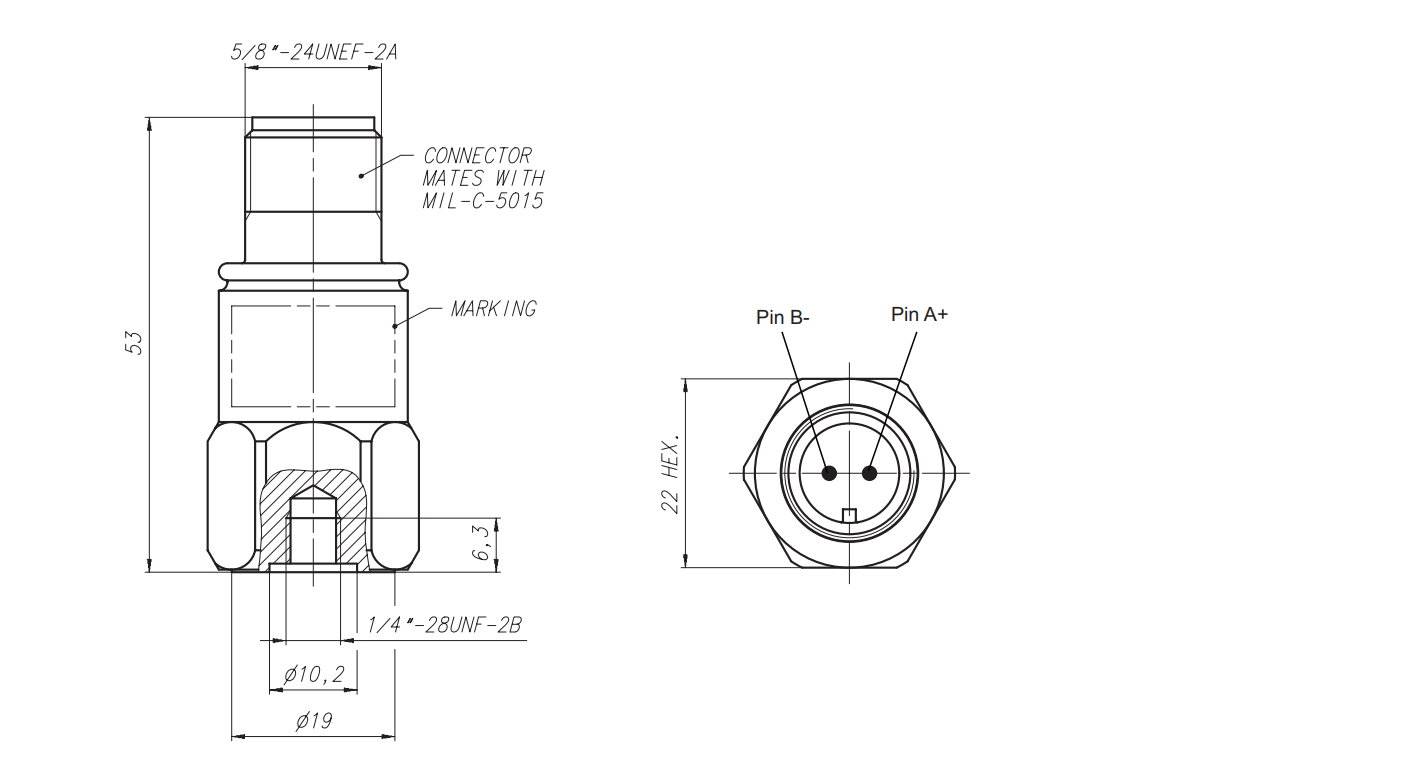

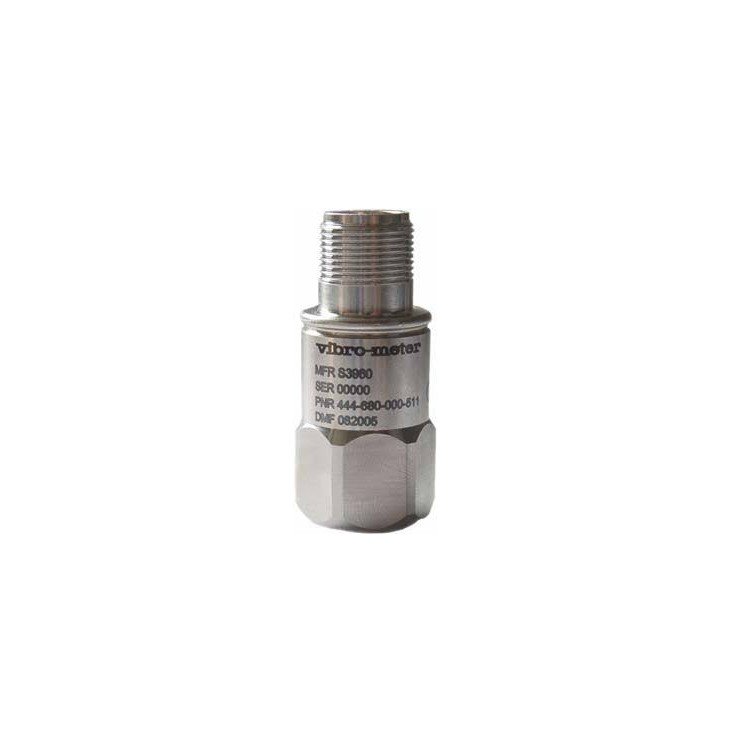

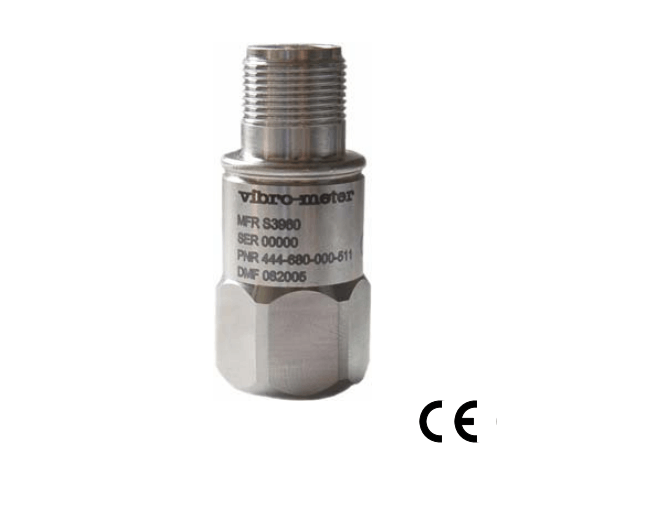

Vibro-Meter CE680 M511 444-680-000-511 Piezoelectric Accelerometer
Item Number:CE680 M511 444-680-000-511
Brand: Vibro-Meter
Lead Time: In stock
Description:Piezoelectric Accelerometer
Payment: T/T
Product Description
The CE 680 M511 444-680-000-511 is a general purpose vibration sensor designed for harsh industrial machinery environments. It uses industry standard two-wire voltage transmission technology and is equipped with a constant current source. The output signal sensitivity is 100 mV/g.
Due to the isolated grounding and internal shielding of the accelerometer, there are no ground loops or frame voltages interfering with the measurement. The CE 680 M511 has very low noise levels and excellent bias voltage performance at high temperatures.
Fuctions & Features
- solation ground and internal shield: Eliminate ground loop interference and rack voltage effects.
- Shear Mode: Avoid output drift caused by thermal transients.
- ESD protection: Equipped with electrostatic discharge (ESD) protection.
- Frequency response: ±10% accuracy range: 1 Hz to 9 kHz; -3 dB bandwidth: 0.5 Hz to 14 kHz
- Insulation and shielding: Shell insulation, internal shielding.
Specification
|
Parameter |
Value |
|
Sensitivity (at +25°C) |
100 mV/g ±5% |
|
Dynamic range |
80 g |
|
Transverse sensitivity (maximum) |
5% of axial |
|
Linearity |
1% up to full scale |
|
Frequency response (nominal) |
|
|
• 3 Hz - 5 kHz |
±5% |
|
• 1 Hz - 9 kHz |
±10% |
|
• 0.5 Hz - 14 kHz |
-3 dB |
|
Resonant frequency |
30 kHz |
|
Temperature response - Typical deviations |
|
|
-55°C to +120°C |
±5% |
|
-55°C |
-5% |
|
120°C |
+3% |
FAQs
Q: What is the brand?
A:CE680 M511
Q: What is the type?
A:Piezoelectric Accelerometer
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
