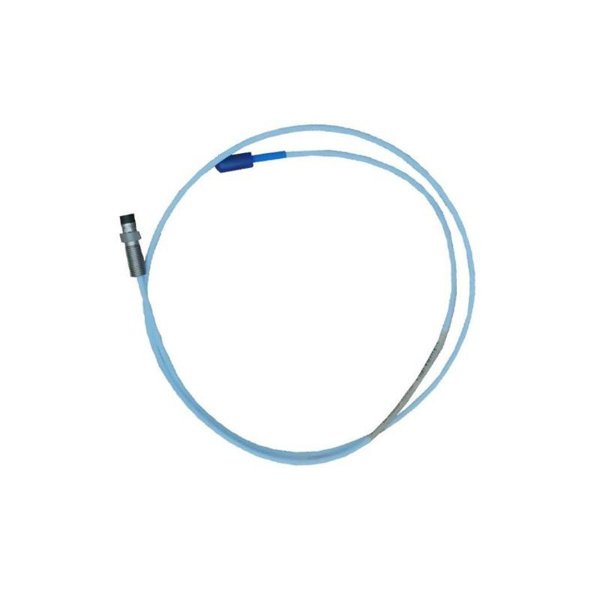

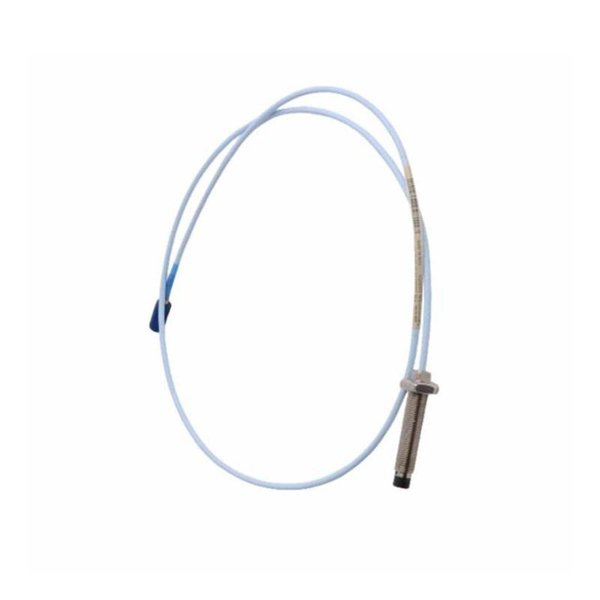

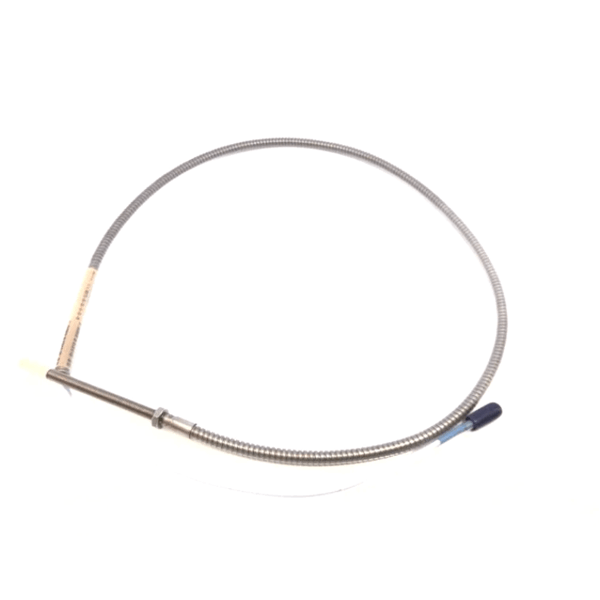

Bently Nevada 330102-00-20-05-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330102-00-20-05-02-00 3300 XL 8 mm Proximity Probe is part of the world-renowned 3300 XL proximity transducer system, designed for precise non-contact vibration and displacement measurements in critical rotating machinery. This probe is engineered to deliver high reliability, exceptional accuracy, and long-term stability under demanding industrial environments.

The 3300 XL series is widely used in turbines, compressors, pumps, and other rotating assets where continuous condition monitoring is essential for predictive maintenance and avoiding unplanned downtime. The probe works seamlessly with extension cables and proximitor sensors to form a complete transducer system, ensuring accurate shaft vibration and position monitoring.

Technical Specifications

Product Applications

The 3300 XL 8 mm Proximity Probe is used in a wide range of industrial applications where machinery protection and monitoring are crucial.

• Turbomachinery: Steam turbines, gas turbines, and hydro turbines for shaft vibration monitoring.

• Compressors: Used in centrifugal and reciprocating compressors to track displacement and axial thrust.

• Pumps and Motors: Monitoring shaft behavior to detect misalignment, imbalance, or bearing wear.

• Generators: Ensuring stability and preventing catastrophic failures by detecting early mechanical faults.

• Industrial Fans and Gearboxes: For condition monitoring and predictive maintenance.

• Critical Asset Protection Systems: Integrated with Bently Nevada monitoring systems such as 3500 Series and Orbit 60.

Product Advantages

1. High Reliability: Designed for continuous operation in harsh industrial conditions.

2. Accuracy and Stability: Provides precise vibration and displacement readings with minimal drift.

3. Wide Compatibility: Works seamlessly with proximitor sensors and monitoring systems.

4. Durable Construction: Stainless steel housing and hermetic sealing extend service life.

5. Temperature Tolerance: Can withstand extreme environments up to 177 °C.

6. Ease of Installation: Flexible probe lengths and connector options for quick deployment.

7. Trusted Industry Standard: Backed by Bently Nevada’s reputation in condition monitoring.

FAQ

Q1: What is the main purpose of the 330102-00-20-05-02-00 probe?

A1: It measures shaft vibration and position in rotating machinery to support condition monitoring and protection.

Q2: Can this probe operate in high-temperature environments?

A2: Yes, it is rated for continuous operation up to 177 °C.

Q3: What is the sensitivity of this probe?

A3: It provides a sensitivity of 200 mV/mil (7.87 V/mm).

Q4: Is it compatible with older Bently Nevada monitoring systems?

A4: Yes, it is backward-compatible with most 3300 and 3500 monitoring systems.

Q5: What industries typically use this probe?

A5: Power generation, oil & gas, petrochemicals, and heavy manufacturing industries.

Q6: What is the typical linear measurement range?

A6: The probe provides a linear range of approximately 2.0 mm.

Q7: Does the probe require calibration?

A7: Each probe is factory-calibrated, but system calibration with extension cables and proximitor is recommended.

Q8: How durable is the probe cable?

A8: The cable is designed with robust insulation to resist mechanical stress and chemical exposure.

Q9: What certifications are available?

A9: CE marking, ATEX, and IECEx certifications are available for hazardous environments.

Q10: How is the probe installed?

A10: It is threaded into a mounting bracket or probe holder, aligned with the shaft surface, and connected to the proximitor via coaxial cable.
