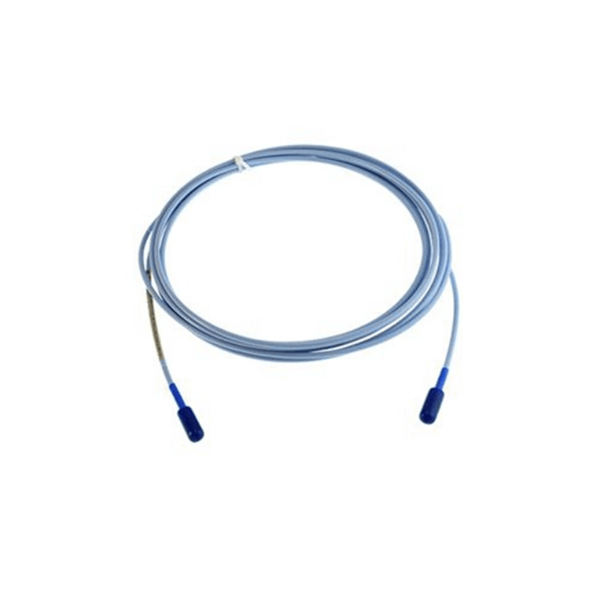

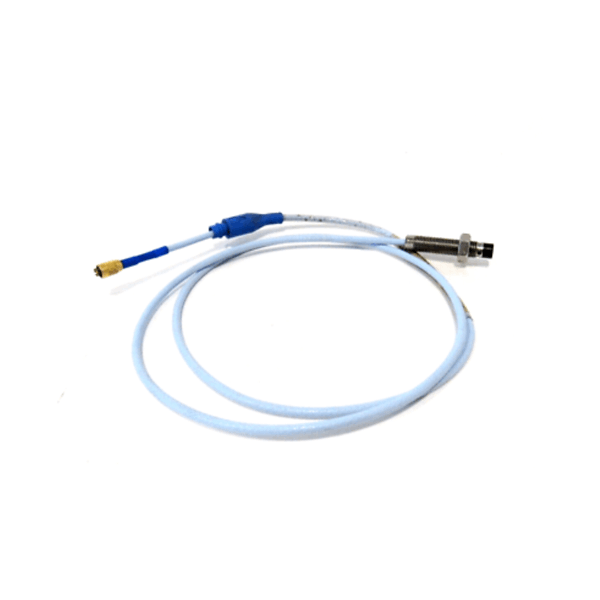

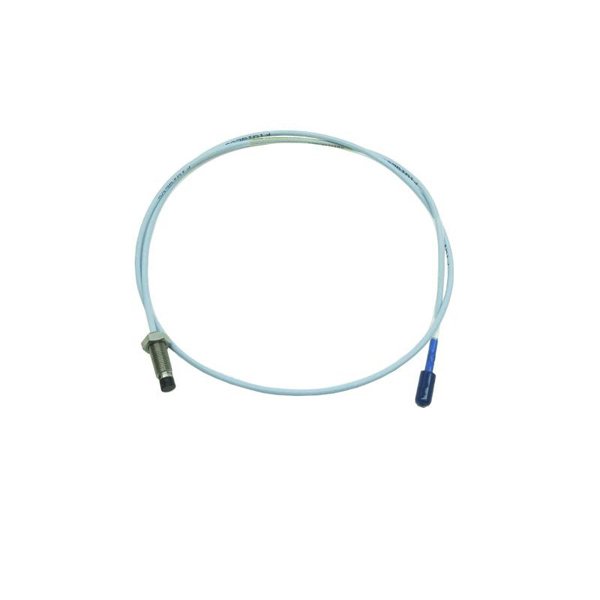

Bently Nevada 330103-00-09-10-02 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-09-10-02 3300 XL 8 mm Proximity Probe (Metric) is a precision measurement device designed to monitor the condition of rotating machinery by measuring the displacement and vibration of critical components. This proximity probe is part of the renowned 3300 XL series by Bently Nevada, which is known for its high-performance condition monitoring solutions for industrial applications.

Specifically designed to measure shaft displacement and vibration in metric units, the 3300 XL 8 mm Proximity Probe is ideal for use in a variety of machinery, such as turbines, compressors, motors, and pumps. The probe operates based on the inductive principle, providing high-accuracy measurements of small displacements with remarkable sensitivity. By providing real-time data on machinery health, the 3300 XL Proximity Probe helps industries implement predictive maintenance, avoiding unexpected downtime and reducing the costs associated with machine failure.

With a total length of 1.0 meter and a weight of 0.323 kg, this probe offers flexibility in installation, ensuring it fits a wide range of monitoring systems. It is built to withstand harsh industrial environments and is widely used in industries like power generation, oil & gas, mining, and manufacturing.

Product Specifications

Applications

The 3300 XL 8 mm Proximity Probe is a versatile and essential tool for monitoring machinery health in various industrial applications. It is used extensively in rotating equipment, providing precise and reliable measurements of displacement and vibration. Key applications include:

• Turbine Monitoring: In power generation plants, the probe is used to monitor turbines, measuring shaft displacement to detect misalignments or imbalance that could affect performance.

• Compressor Health Monitoring: The probe helps detect any abnormal vibration or displacement in compressors, which could signal potential issues such as misalignment, wear, or imbalance.

• Motor Monitoring: Used to monitor electric motors, the probe detects issues such as bearing failures, rotor problems, or excessive vibrations that could affect motor efficiency or lead to a breakdown.

• Pump Monitoring: In pump systems, the proximity probe is employed to measure shaft displacement, ensuring smooth operation and identifying potential faults before they cause system failures.

• Condition Monitoring Systems: The 3300 XL Proximity Probe integrates seamlessly into condition monitoring systems, providing real-time feedback on machine health and enabling operators to take timely corrective actions.

• High-Speed Machinery: With a frequency range of up to 100 kHz, the probe is highly effective for monitoring high-speed rotating machinery, ensuring that even minute displacements and vibrations are accurately measured.

The 3300 XL 8 mm Proximity Probe is commonly used in industries such as power generation, oil & gas, chemicals, and mining, where precision and reliability are critical for ensuring the continuous operation of machinery.

Advantages

• High Accuracy and Sensitivity: The 3300 XL 8 mm Proximity Probe provides highly accurate and sensitive measurements of shaft displacement and vibration, ensuring that even small deviations are detected and addressed.

• Durable and Robust: Built for industrial environments, the probe is designed to withstand harsh conditions such as high vibrations, dust, moisture, and extreme temperatures, ensuring reliable performance in demanding applications.

• Flexible Installation: With a total length of 1.0 meter and a weight of 0.323 kg, the probe is compact and easy to install in tight spaces or areas where other monitoring equipment may not fit.

• Wide Frequency Range: The probe covers a broad frequency range of 2 Hz to 100 kHz, making it suitable for both low- and high-frequency machinery monitoring.

• Real-Time Data: By providing real-time data on vibration and displacement, the probe enables predictive maintenance and minimizes the risk of unexpected downtime.

• Easy Integration with Monitoring Systems: The probe is designed to integrate easily into condition monitoring systems, including Bently Nevada’s 3500 series, ensuring seamless operation across a variety of industrial applications.

• Low Maintenance Requirements: The 3300 XL 8 mm Proximity Probe is designed for minimal maintenance, providing a reliable and long-lasting solution for monitoring rotating equipment.

• Global Compliance: The probe is certified for use in a wide range of international markets, meeting standards such as CE and UL for safety and performance.

• Cost-Effective Solution: By providing early detection of potential issues, the probe helps reduce maintenance costs and downtime, ultimately saving on repair and replacement expenses.

• Versatility in Application: The probe can be used in a wide variety of industrial machinery, from high-speed turbines to large pumps and motors, making it a versatile tool for industrial equipment monitoring.

FAQ (Frequently Asked Questions)

1. What is the total length of the Bently Nevada 3300 XL 8 mm Proximity Probe?

   • The total length of the probe is 1.0 meter.

2. How much does the 3300 XL 8 mm Proximity Probe weigh?

   • The probe weighs 0.323 kg.

3. What is the operating temperature range of the 3300 XL 8 mm Proximity Probe?

   • The probe can operate in temperatures ranging from -40°C to +85°C.

4. What is the output type of the 3300 XL 8 mm Proximity Probe?

   • The probe provides a linear voltage output, which is compatible with most condition monitoring systems.

5. What is the frequency range of the 3300 XL 8 mm Proximity Probe?

   • The probe covers a frequency range of 2 Hz to 100 kHz, making it suitable for both low- and high-frequency applications.

6. Can the 3300 XL 8 mm Proximity Probe be used for monitoring compressors?

   • Yes, it is ideal for monitoring compressors, where it helps detect misalignments, wear, or other potential issues before they lead to failure.

7. How does the 3300 XL Proximity Probe help with predictive maintenance?

   • By monitoring vibrations and displacements in real time, the probe helps identify early signs of potential failure, allowing operators to perform maintenance before problems escalate.

8. Is the 3300 XL 8 mm Proximity Probe easy to install?

   • Yes, the probe is designed for easy installation with standard mounting configurations, making it straightforward to integrate into existing machinery.

9. What industries benefit from using the 3300 XL 8 mm Proximity Probe?

   • The probe is beneficial in industries such as power generation, oil and gas, mining, and manufacturing, where high-precision machinery monitoring is essential.

10. Can the 3300 XL 8 mm Proximity Probe be used for high-speed machinery?

    • Yes, the probe is specifically designed for use with high-speed machinery, and its wide frequency range allows it to accurately measure even small displacements at high speeds.
