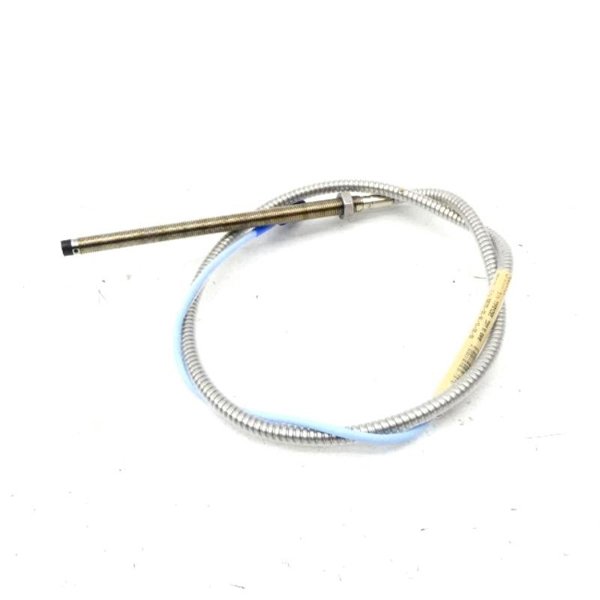

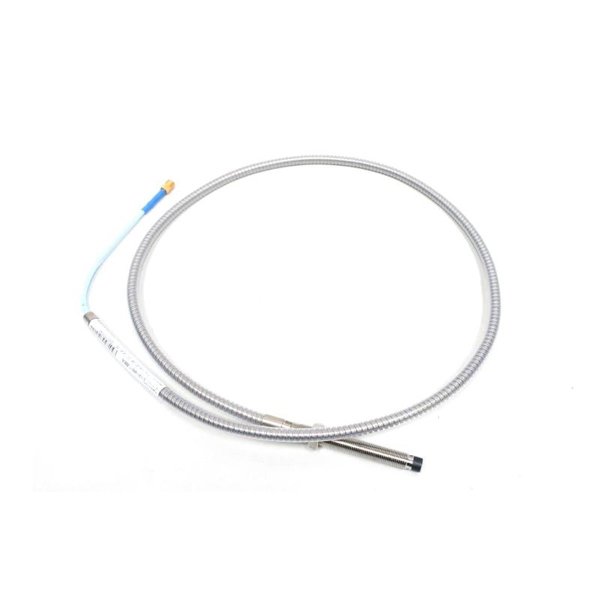

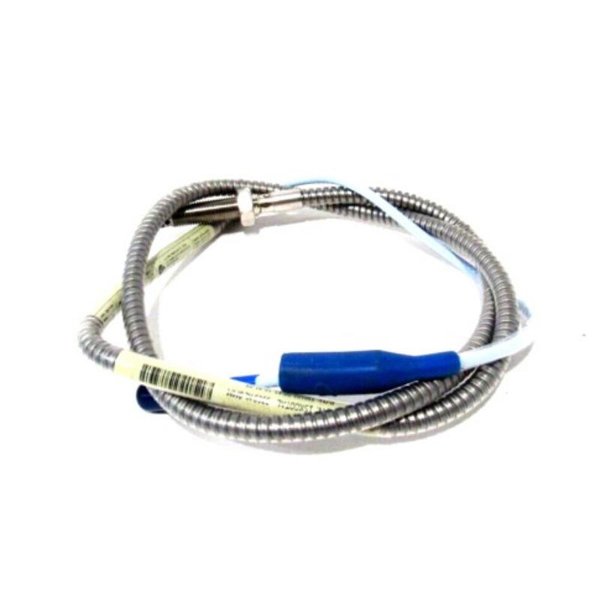

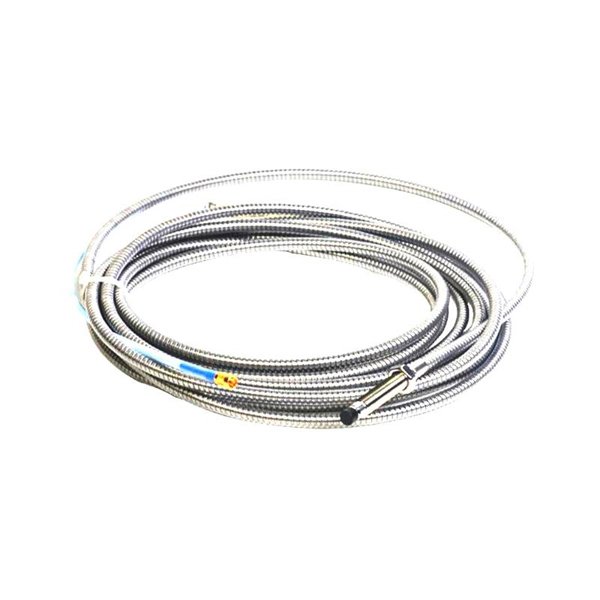

Bently Nevada 330102-24-48-05-01-RU 3300 XL 8 mm Proximity Probe

The Bently Nevada 330102-24-48-05-01-RU is a high-reliability 3300 XL 8 mm proximity probe designed for precise measurement of shaft position and vibration in rotating machinery. It provides robust performance in harsh industrial environments, ensuring accurate data for machinery health monitoring.

Technical Specifications

Applications

• Shaft vibration and position monitoring

• Turbomachinery condition monitoring

• Centrifugal compressor protection

• Steam and gas turbine monitoring

• Critical pump systems

Advantages

• High durability in industrial environments

• Excellent linearity and repeatability

• Compatible with 3300 XL systems

• Resistant to oil, dirt, and contaminants

• Easy installation and maintenance

FAQ

Q1: What is the measuring range of this proximity probe?

A1: The probe offers a linear measurement range of approximately 2 mm.

Q2: Can it operate in high-temperature environments?

A2: Yes, it can operate in temperatures up to +175°C.

Q3: What is the standard tip diameter?

A3: The tip diameter is 8 mm.

Q4: Is it compatible with other Bently Nevada monitoring systems?

A4: Yes, it is fully compatible with 3300 XL systems.

Q5: What is the total cable length supplied with this model?

A5: The total length of this probe assembly is 0.5 meter.

Q6: Does it resist oil and other contaminants?

A6: Yes, it is designed to perform reliably in harsh conditions including oil contamination.

Q7: What is the thread size for mounting?

A7: The probe uses a 1/4-28 UNF mounting thread.

Q8: What is the typical weight of the probe?

A8: The probe weighs approximately 0.162 kg.

Q9: Can it be used for both vibration and position monitoring?

A9: Yes, it is suitable for both applications.

Q10: Is it easy to replace in the field?

A10: Yes, the design allows for straightforward installation and replacement.
