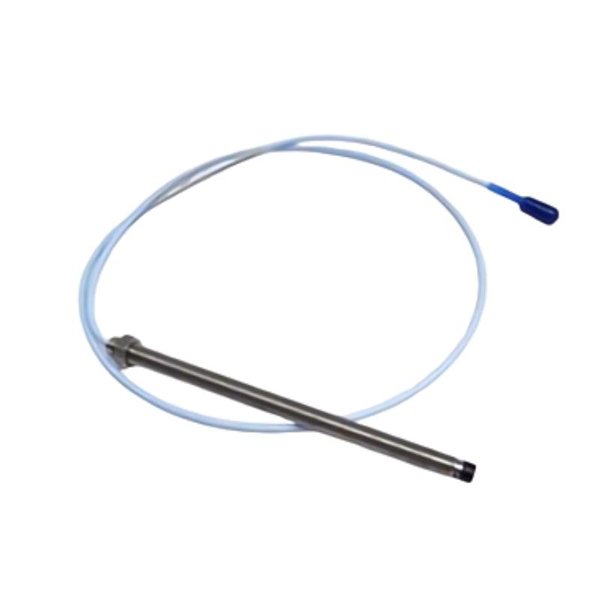

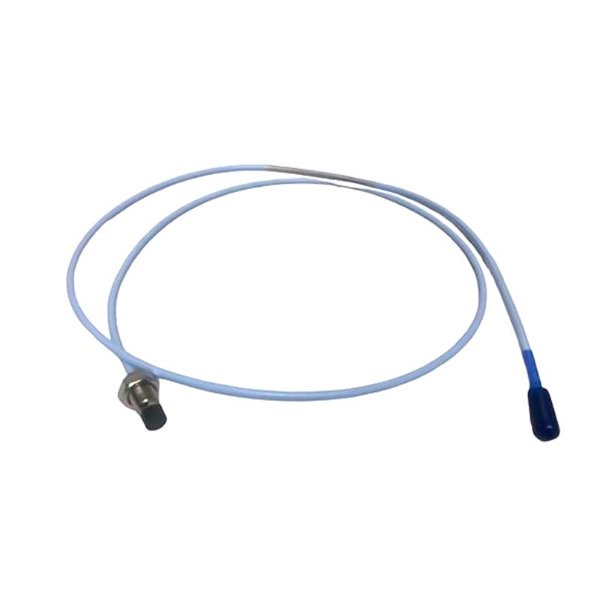

Bently Nevada 330101-30-60-05-01-05 3300 XL 8mm Proximity Probes

The Bently Nevada 330101-30-60-05-01-05 is an 8mm proximity probe from the 3300 XL Proximity Transducer System, engineered for precise measurement of shaft vibration and displacement in critical rotating machinery. Designed for high reliability and compliance with API 670 standards, this probe enables early detection of mechanical faults such as rotor misalignment, imbalance, and vibration anomalies.

It is widely applied in power generation, petrochemical, oil & gas, and heavy industrial operations, providing operators with accurate real-time data for condition monitoring and machinery protection. Its robust design ensures stable performance even in high-temperature, high-vibration, and industrial environments.

Product Specifications

Product Applications

The 330101-30-60-05-01-05 probe is designed for monitoring critical rotating machinery and protecting assets in industrial environments. Applications include:

• Steam Turbines: Measuring axial displacement and shaft vibration to maintain operational stability.

• Gas Compressors: Detecting rotor misalignment, imbalance, and dynamic instabilities.

• Pumps: Monitoring shaft position and vibration to prevent mechanical failures.

• Generators: Ensuring stable operation and protecting against rotor faults.

• Industrial Fans and Blowers: Measuring runout and vibration to maintain process efficiency.

• Oil & Gas and Petrochemical Equipment: Continuous monitoring under high-temperature and hazardous conditions.

Product Advantages

• API 670 Compliance: Meets global standards for machinery protection systems.

• Durable Construction: Stainless steel housing resists corrosion and wear.

• Wide Operating Temperature: Works effectively from -35°C to +177°C.

• Accurate Signal Measurement: Minimizes noise and provides reliable data for condition monitoring.

• Seamless Integration: Compatible with 3300 XL Proximitor sensors and monitoring systems.

• Proven Reliability: Trusted in critical industries for predictive maintenance.

• Compact Design: Short 0.5 m length allows installation in tight spaces while maintaining accuracy.

FAQ

1. What is the output sensitivity of this probe?

   The output sensitivity is 7.87 V/mm (200 mV/mil), providing high-precision measurement of shaft vibration and displacement for machinery protection systems.

2. What is the nominal gap for this probe?

   The nominal gap is 2.0 mm (80 mils), which is the optimal distance for linear and accurate signal output.

3. What is the linear measurement range?

   The linear range is 2.0 mm to 4.0 mm, ensuring accurate detection of shaft movements within the recommended operating window.

4. What is the frequency response of the probe?

   The probe operates from 0 to 10 kHz, allowing it to capture high-speed rotor dynamics and transient vibration signals accurately.

5. Can this probe operate in hazardous environments?

   Yes, it is API 670 compliant and suitable for critical industrial environments, including petrochemical and oil & gas facilities.

6. What type of connector does the probe use?

   This probe uses a Microdot connector for secure electrical connections and low-noise signal transmission.

7. Is this probe compatible with 3300 XL Proximitor sensors?

   Yes, it integrates fully with 3300 XL Proximitor sensors without requiring adapters or modifications.

8. What is the insulation resistance of the probe?

   The insulation resistance is greater than 100 MΩ at 500 VDC, ensuring reliable operation under varying environmental conditions.

9. What is the maximum operating temperature for this probe?

   The probe can operate in temperatures up to +177°C, making it suitable for high-temperature industrial machinery.

10. Does this probe comply with API 670 standards?

    Yes, the 330101-30-60-05-01-05 is fully API 670 compliant, guaranteeing reliable machinery protection and condition monitoring.
