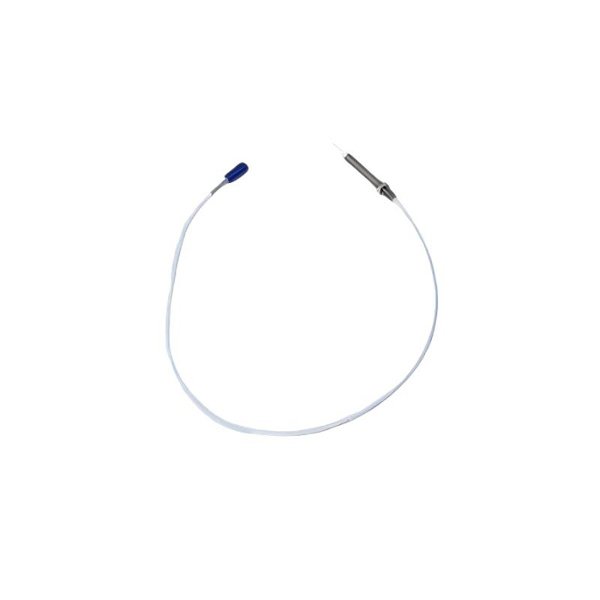

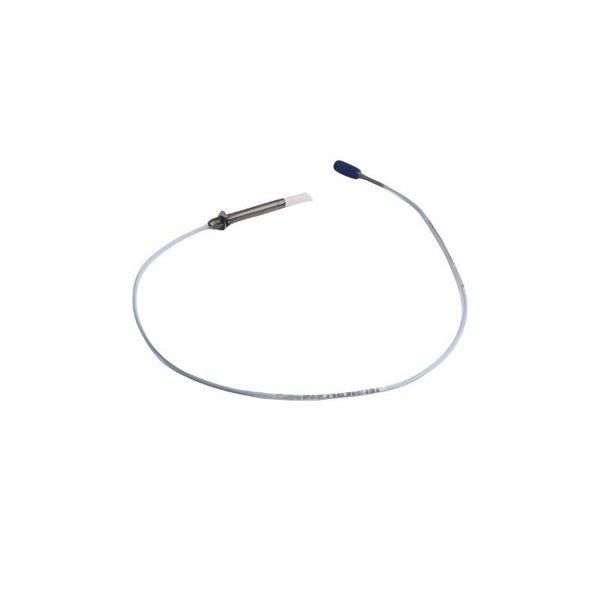

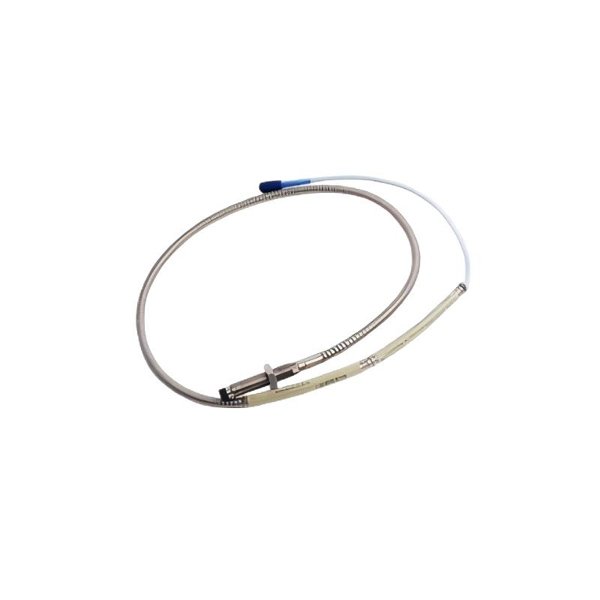

Bently Nevada 330104-00-08-50-01-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-08-50-01-05 is a metric 8 mm proximity probe from the 3300 XL series. This probe is specifically designed for high-accuracy vibration and position measurements in rotating machinery, ensuring optimal performance even in challenging environments. The probe offers superior precision and reliability, making it a vital tool for machinery protection and condition monitoring across a wide range of industrial sectors.

With its 5.0-meter cable length and rugged stainless steel construction, this probe is built to withstand harsh conditions and deliver accurate data over extended periods of operation. The 330104-00-08-50-01-05 proximity probe works seamlessly with Bently Nevada’s Proximitor® sensors and extension cables, offering a complete solution for machinery health monitoring.

Technical Specifications

Applications

The 330104-00-08-50-01-05 proximity probe is widely used for the precise monitoring of critical machinery in a variety of applications:

• Turbines and Generators: Used to monitor shaft vibration, position, and runout for both steam and gas turbines, ensuring operational stability.

• Compressors and Pumps: Provides accurate displacement measurements in compressors, centrifugal pumps, and high-speed machinery for early detection of imbalance and wear.

• Motors and Rotating Machinery: Used for vibration analysis and shaft position measurement in electric motors, gearboxes, and large industrial machinery.

• Oil & Gas Industry: Measures shaft vibrations and radial positions in drilling equipment and other critical machinery in the oil and gas sector.

• Power Generation: Helps monitor the health of key components like turbines, motors, and generators in power plants to prevent unexpected downtime.

• Industrial Manufacturing: Utilized in high-speed spindles, CNC machines, and other rotating industrial equipment to maintain operational efficiency.

With its long cable length and robust design, this probe is ideal for machinery installations with greater space requirements or those located in hard-to-reach areas.

Product Advantages

• Long Cable Length: The 5.0-meter cable provides flexibility for installations where the sensor and probe need to be placed further apart or in tight spaces.

• Rugged Construction: Made of stainless steel with an IP68 environmental rating, the probe is resistant to water, dust, and oil, ensuring long-term performance in harsh environments.

• Accurate Vibration Measurement: It provides high-precision displacement and vibration measurements, helping identify even minor changes in machinery health that could indicate potential failures.

• Reliable in High-Temperature Environments: The probe can withstand a broad temperature range from -35°C to +177°C, making it suitable for use in extreme conditions.

• Simple Integration with 3300 XL Systems: Designed to work seamlessly with Bently Nevada’s Proximitor® sensors, extension cables, and other system components for efficient setup and operation.

• High-Performance Eddy Current Sensing: The probe uses eddy current sensing technology, ensuring precise readings with minimal interference and drift over time.

• Compatible with Global Standards: The 330104-00-08-50-01-05 probe adheres to industry standards, including ISO and API 670, for rotating equipment protection and machinery condition monitoring.

Frequently Asked Questions (FAQ)

Q1: What makes this probe different from other proximity probes?

A1: This probe has a longer 5.0-meter cable, providing greater flexibility in installations that require extended reach or tight placement conditions.

Q2: Can the 330104-00-08-50-01-05 probe be used in high-humidity environments?

A2: Yes, it has an IP68 rating, making it resistant to water and dust, which makes it suitable for humid and corrosive environments.

Q3: How do I install this proximity probe?

A3: The probe should be mounted in alignment with the shaft, ensuring the gap between the probe and the target shaft is within specified limits. Proper alignment tools, such as dial indicators, should be used.

Q4: What is the maximum temperature this probe can operate in?

A4: The probe can operate in environments with temperatures between -35°C and +177°C, which allows it to be used in a wide variety of industrial applications.

Q5: Is this probe compatible with other brands of proximitor sensors?

A5: It is designed to work specifically with Bently Nevada’s 3300 XL Proximitor® sensors for optimal performance. Using third-party sensors may result in inaccurate readings.

Q6: How long is the warranty for this product?

A6: Bently Nevada typically offers a one-year warranty on its products, covering manufacturing defects under normal operating conditions.

Q7: What type of maintenance does this probe require?

A7: The probe is maintenance-free, but it is recommended to inspect the probe regularly and ensure the tip is free from debris or damage.

Q8: How is the data from the probe transmitted?

A8: The data is transmitted through the Proximitor® sensor, which processes the signal and sends it to the monitoring system for analysis.

Q9: Can this probe be used in hazardous environments?

A9: Yes, the probe’s IP68 rating ensures it is protected from hazardous conditions, including exposure to dust and water, but specific installation guidelines must be followed for hazardous area use.

Q10: What happens if the probe becomes misaligned?

A10: If the probe becomes misaligned, it can result in inaccurate measurements. Regular checks using alignment tools are recommended to ensure the probe remains properly aligned with the shaft.
