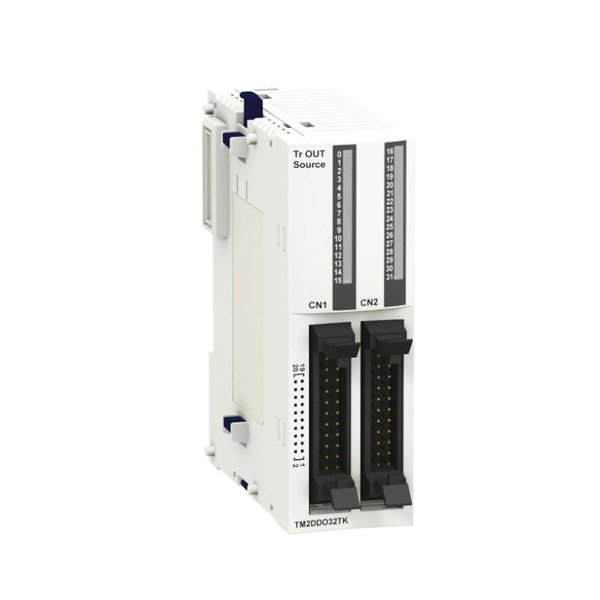

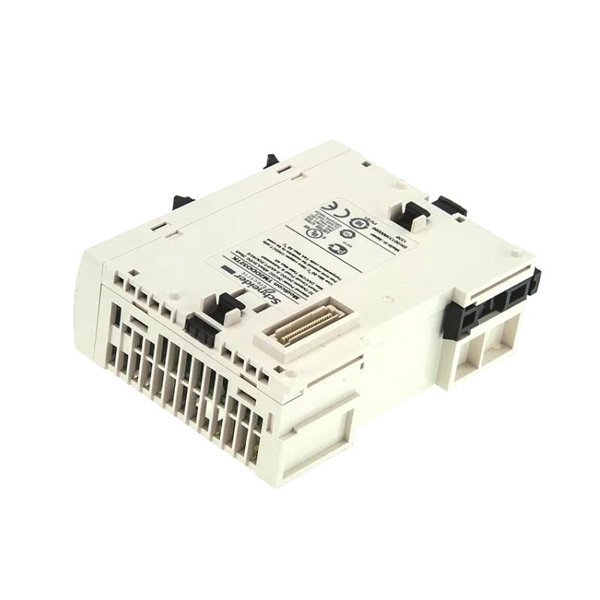

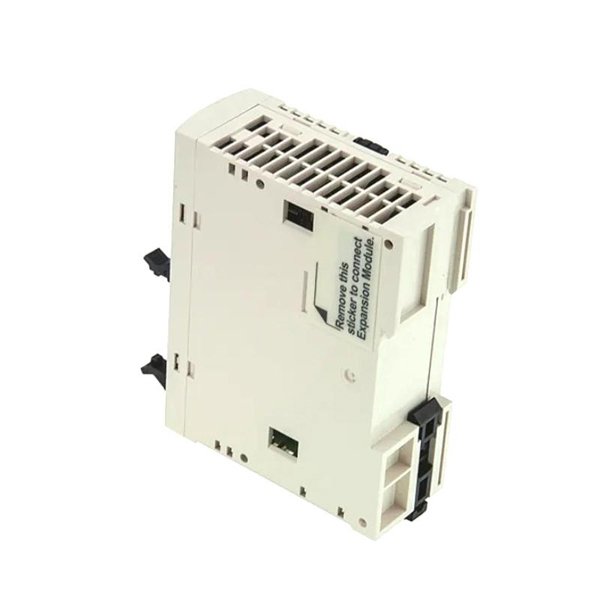

Schneider TM2DDO32TK Discrete Output Module
Manufacturer:Schneider
Product Number:TM2DDO32TK
Product Type:Discrete Output Module
Origin:France
Dimensions:81.3 x 90 x 33.5 mm
Weight:0.105 kg
Views:43
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider Electric TM2DDO32TK is a high-density transistor output module designed to provide 32 discrete outputs for fast-switching digital control in automation systems. Part of the Modicon TM2 expansion module series, it is built to work seamlessly with Modicon M221, M241, and M251 logic controllers, making it a perfect choice for expanding output capacity in machine automation and distributed control architectures.
This module supports sourcing (positive logic) transistor outputs, ensuring fast, reliable switching for a variety of actuators including relays, contactors, and indicator lamps. The TM2DDO32TK is particularly suitable for applications requiring high-speed output operation and compact space usage, thanks to its 32-point output configuration in a small-form DIN rail mountable unit.
With enhanced protection features, compact dimensions, and ease of integration, the TM2DDO32TK enables cost-effective and scalable digital control in industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | TM2DDO32TK |
| Manufacturer | Schneider Electric |
| Product Type | Discrete Output Module |
| Series | Modicon TM2 |
| Number of Outputs | 32 |
| Output Type | Transistor (sourcing, PNP logic) |
| Output Voltage Range | 24 VDC (nominal), 20.4–28.8 VDC (functional range) |
| Max Output Current/Channel | 0.1 A |
| Max Output Current Total | 3.2 A |
| Response Time | <0.5 ms |
| Isolation Voltage | 500 V (output to internal bus) |
| Output Protection | Short-circuit, overcurrent, and overload protection |
| Status Indicators | LED per channel |
| Connection Type | Removable 40-pin HE10 connector |
| Mounting Type | DIN rail (35 mm) |
| Power Supply | Supplied via the controller backplane |
| Power Consumption | 4 W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, RoHS, IEC 61131-2 compliant |
| Dimensions (W × H × D) | 81.3 x 90 x 33.5 mm |
| Weight | 0.105 kg |
Product Applications
The TM2DDO32TK module is designed for industries and processes that demand a high number of fast digital outputs in a compact format. Common application areas include:
-
Material Handling Systems
Controls motors, conveyors, diverters, and actuators in automated warehousing and logistics systems.
-
Packaging Machinery
Drives relays and actuators for high-speed carton forming, labeling, and sorting machines.
-
Automated Assembly Lines
Controls solenoids and indicators for real-time assembly feedback and operational control.
-
Food & Beverage Processing
Activates valves, dispensers, and alarms in controlled, hygienic automation environments.
-
Textile and Printing Equipment
Manages precise output timing for motors, printheads, and rollers.
-
Building Automation Systems
Manages digital output signals for lighting control, fans, and HVAC actuators.
Product Advantages
-
High-Density Output
Provides 32 transistor outputs in one compact module, reducing control panel footprint.
-
Fast Switching
<0.5 ms response time ensures real-time control and responsiveness for high-speed operations.
-
Reliable Output Protection
Built-in protection against short circuits and overloads prevents damage to outputs and connected devices.
-
Plug-and-Play Integration
Easily connects with Modicon M221, M241, and M251 PLCs, expanding output capabilities without additional complexity.
-
LED Status Indicators
Channel-level diagnostics make troubleshooting and maintenance easier.
-
DIN Rail Mounting
Tool-less mounting on standard 35 mm DIN rail enables quick installation.
-
Simplifies wiring by drawing power from the controller’s backplane.
-
Industrial Compliance
Meets CE, UL, and RoHS standards, ensuring safety and reliability in demanding environments.
Frequently Asked Questions (FAQ)
1. What type of outputs does the TM2DDO32TK module support?
It provides 32 PNP (sourcing) transistor outputs suitable for controlling 24VDC digital loads.
2. Can I use this module with the Modicon M241 controller?
Yes, it is fully compatible with Modicon M221, M241, and M251 PLCs.
3. What is the maximum output current per channel?
Each channel supports up to 0.1 A, with a total module limit of 3.2 A.
4. Does the module support short-circuit protection?
Yes, each output has integrated protection against short-circuits and overloads.
5. How is the TM2DDO32TK connected electrically?
It uses a 40-pin HE10 removable connector for easy wiring and replacement.
6. Is it necessary to provide an external power supply for the module?
No, the module is powered through the controller backplane, simplifying installation.
7. What happens if one output is overloaded?
The affected channel is automatically protected, preventing damage and indicating fault via LEDs.
8. What is the response time for output switching?
Output response time is less than 0.5 milliseconds, ideal for high-speed control.
9. Can the module be mounted horizontally or vertically?
It is designed for standard DIN rail mounting and can be mounted as needed within specified thermal limits.
10. Are status indicators provided for each channel?
Yes, each output channel has a dedicated LED for easy monitoring and diagnostics.
