Bently Nevada 3500/93 135799-02 Display Interface Module

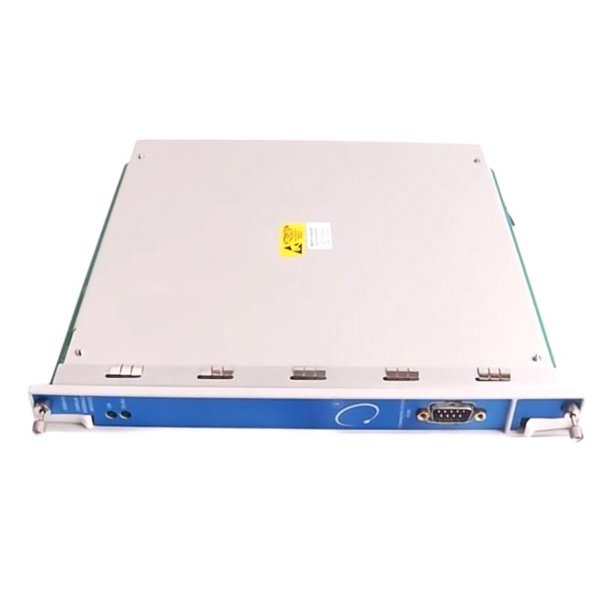

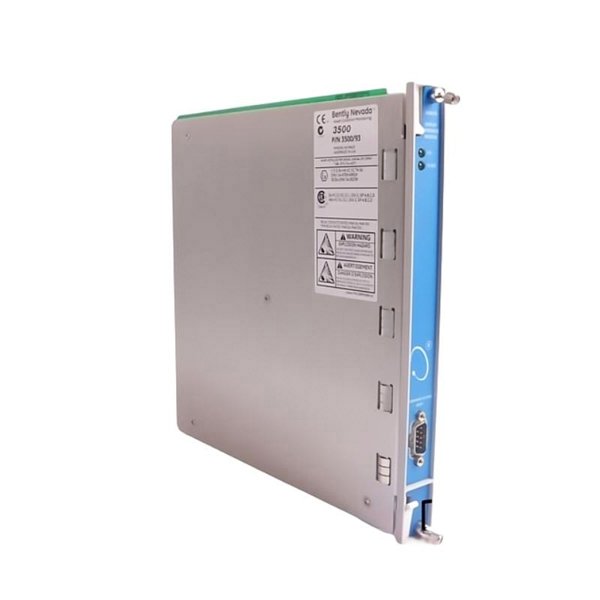

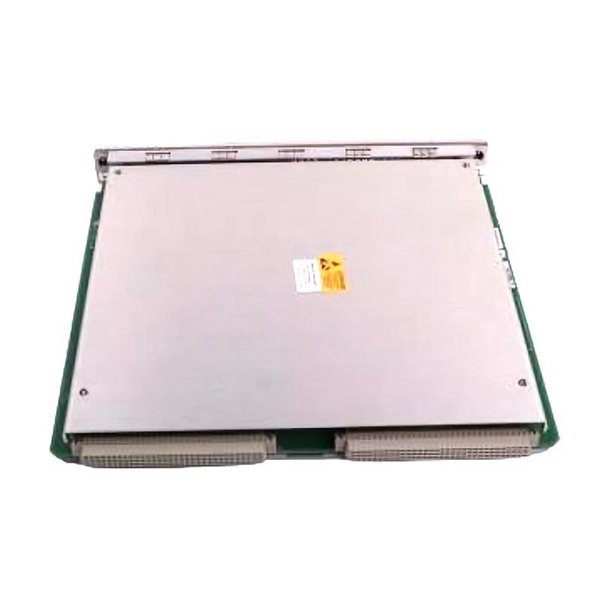

The Bently Nevada 3500/93 135799-02 Display Interface Module is an integral component of the Bently Nevada 3500 Series Machinery Protection System. Designed to bridge the gap between machine condition data and operator visibility, the 3500/93 module acts as the communication interface between the system’s machinery monitoring hardware and the external display unit. This module enables operators and engineers to view real-time and historical data directly from the 3500 rack without needing to access the system via a PC or control room HMI.

Tailored for demanding industrial environments, the 3500/93 is engineered to ensure fast data refresh, clear presentation of alarm statuses, and robust signal communication between the rack and the 3500/94 VGA Display. It is especially valuable in mission-critical rotating equipment applications where real-time access to machine health information is essential for safety, uptime, and maintenance optimization.

Product Specifications

Product Applications

The 3500/93 135799-02 Display Interface Module is used in a wide range of critical industrial sectors, where real-time display of condition monitoring data is vital. Below are key application areas:

• Gas and Steam Turbine Systems

  Provides operators with direct visual feedback of vibration, speed, and alarm conditions for turbine systems.

• Compressor Monitoring Systems

  Used to display vital parameters such as surge, rotor vibration, and temperature for high-value compressors.

• Oil & Gas Production Facilities

  Enables on-site personnel to monitor rotating assets including pumps, motors, and generators in remote areas.

• Refineries and Petrochemical Plants

  Integrated within control rooms and equipment rooms for visual access to real-time machinery health metrics.

• Power Generation Stations

  Used in conjunction with other 3500 modules to display critical machine protection parameters on local displays.

• Industrial Manufacturing Equipment

  Supports predictive maintenance and process optimization through local display access.

Product Advantages

• Real-Time Visual Interface

  Enables quick access to machinery data and alarms without needing a networked computer or DCS interface.

• Dual Communication Ports for Redundancy

  Supports redundant communication paths to ensure uninterrupted data availability in safety-critical applications.

• High Compatibility with 3500/94 Display Module

  Works seamlessly with the 3500/94 VGA Display, providing flexible data presentation formats.

• Backplane Powered

  Requires no external power supply, reducing wiring complexity and increasing installation reliability.

• Durable Industrial Design

  Built to operate in harsh industrial environments, including high temperature and vibration conditions.

• Field Proven Reliability

  Widely deployed in thousands of installations globally with a strong track record of stability and uptime.

Frequently Asked Questions (FAQ)

1. What is the main function of the 3500/93 module?

   It serves as an interface between the 3500 rack and the 3500/94 VGA Display, allowing visualization of system data.

2. Can the 3500/93 module support redundant data communication?

   Yes, it includes dual serial ports to allow for redundant communication setups with display systems.

3. Does the 3500/93 store data or is it a pass-through device?

   It does not store data. It acts as a live pass-through interface delivering real-time data to the display.

4. Which serial protocols are supported by the 3500/93 module?

   It supports RS-232 and RS-422/485 for flexible connection types depending on the display and rack setup.

5. Can the 3500/93 module be hot-swapped in the rack?

   No, power should be removed before installing or removing the module to prevent rack communication errors.

6. What is the refresh rate for data transmission to the display?

   Data is typically refreshed at a rate of 1 second or faster, depending on system load and configuration.

7. Is the 3500/93 module configurable through software?

   The module requires configuration through the 3500 System Configuration Software to assign display channels.

8. How does the 3500/93 handle display alarm data?

   It transmits all active alarms and status messages directly to the 3500/94 display for operator acknowledgment.

9. Can the module be used in environments with high EMI?

   Yes, it is certified to comply with industrial EMC standards, ensuring reliable operation in high-EMI areas.

10. What happens if the communication between the 3500/93 and display fails?

    The display will show communication fault status, and diagnostics can be reviewed through the system software.
