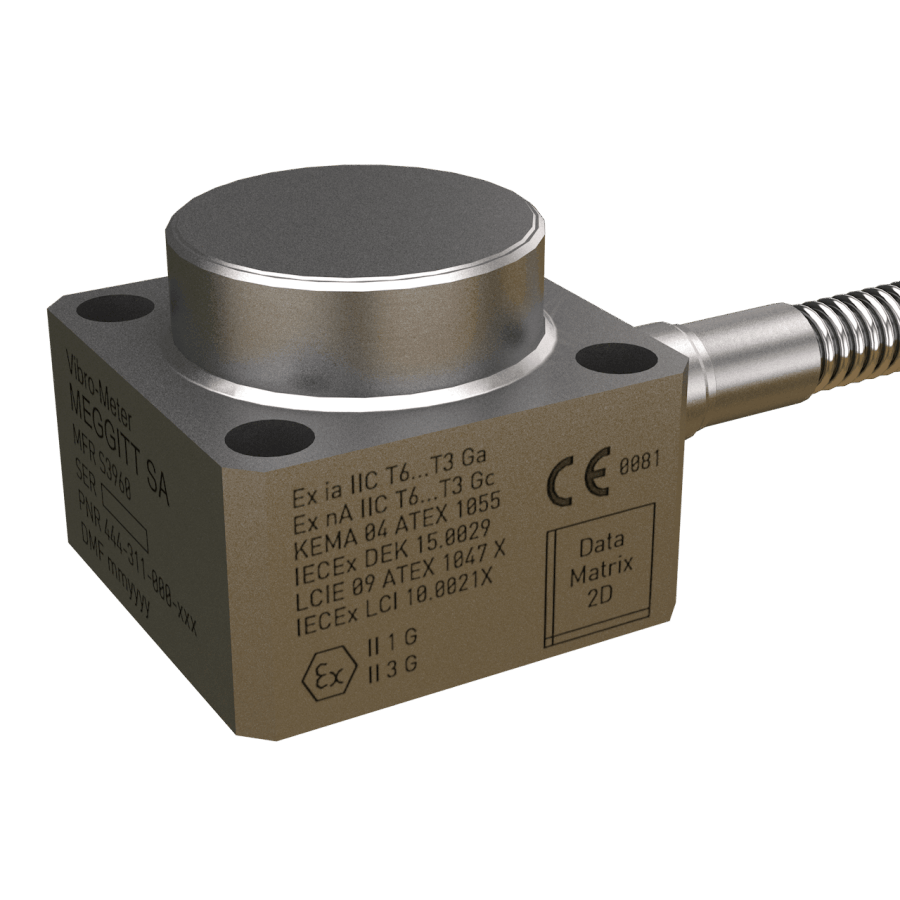

Vibro-Meter CE311 444-311-000-013 Piezoelectric Accelerometer
Item Number: CE311 444-311-000-013
Brand:Vibro-Meter
Lead Time: In stock
Description: Piezoelectric Accelerometer
Payment: T/T
Product Description
The CE311 444-311-000-013 piezoelectric accelerometer is a vibration sensor that implements signal processing without the need for an external signal conditioner (charge amplifier), while performing charge-to-current conversion and outputting a current modulated signal suitable for long distance transmission. The sensor is available in different versions for normal and hazardous areas, with a variety of cable lengths.
Function & Features
- CE311 444-311-000-013 uses a polycrystalline material sensing element with a symmetrical shear mode.
- CE311 444-311-000-013 has a built-in signal processing circuit, which does not require an external charge amplifier and directly outputs a current modulation signal (sensitivity 50 µA/g).
- CE311 444-311-000-013 sensor and stainless steel protective hose are hermetically welded to form a completely sealed system.
- CE311 444-311-000-013 is available in standard version (non-hazardous area) and explosion-proof version (Ex certification, suitable for hazardous areas) versions.
Specifications
|
Parameter |
Details |
|
Model |
CE311 444-311-000-013 |
|
Sensitivity |
50 µA/g |
|
Frequency response |
2 to 8000 Hz |
|
Temperature range |
-40 to 125°C |
|
DYNAMIC MEASUREMENT RANGE |
0.004 to 40 g | 0.03924 to 392.4 m/s² |
|
LINEARITY |
≤1% |
|
TRANSVERSE SENSITIVITY |
≤3% |
|
RESONANT FREQUENCY |
20 kHz |
|
BASE STRAIN SENSITIVITY |
0.0015 g/µε |
FAQ
Q: What is the brand?
A:Spare
Q: What is the type?
A:Piezoelectric Accelerometer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
