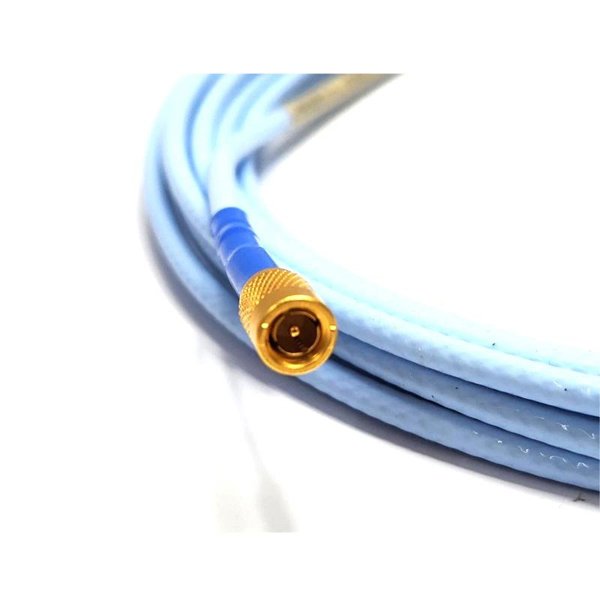

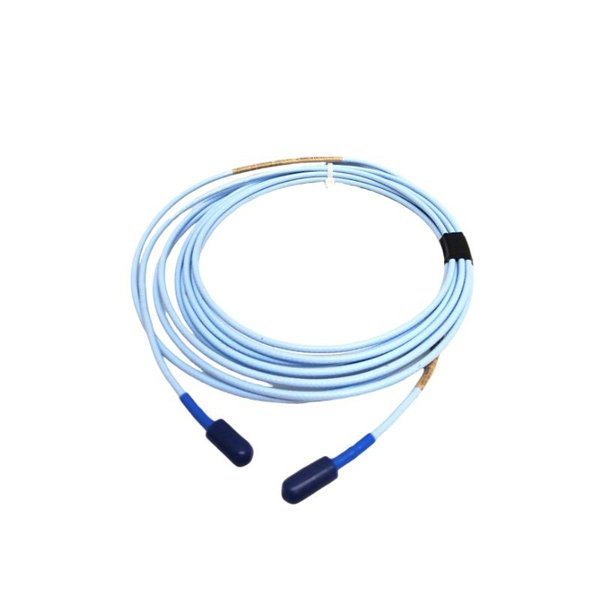

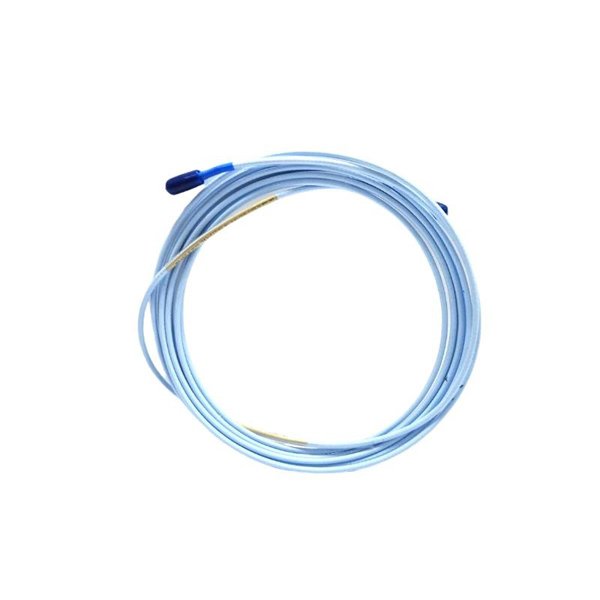

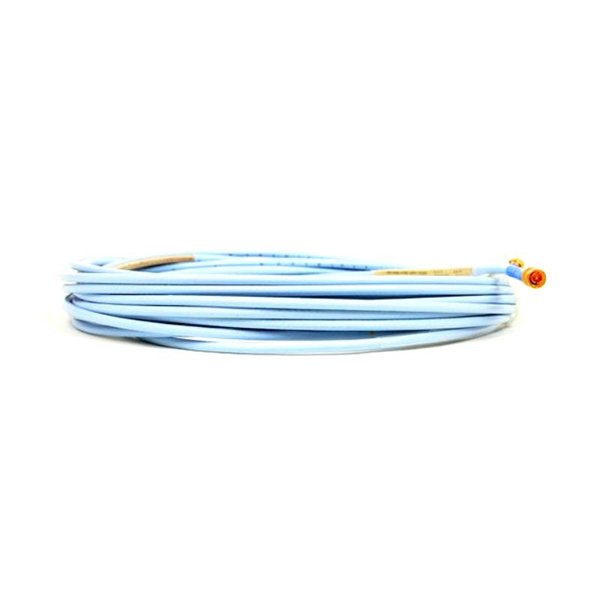

Bently Nevada 330130-130-02-05 3300 XL Standard Extension Cable

The Bently Nevada 330130-130-02-05 is a 13.5-meter 3300 XL Standard Extension Cable used in the 3300 XL 8 mm Proximity Transducer System. It provides the connection between the proximity probe and the Proximitor Sensor, transmitting signals accurately for vibration and position measurements. This cable features ClickLoc gold-plated connectors, offering secure and tool-free installation.

Applications

• Fluid-film bearing vibration monitoring

• Axial or radial shaft position measurement

• Keyphasor reference signal transmission

• Industrial rotating machinery monitoring (turbines, compressors, motors)

• Harsh environments requiring EMI/RFI immunity

Product Advantages

• ClickLoc Connectors: Tool-less, secure connection with click feedback

• High Pull Strength: Withstands up to 330 N (75 lbf)

• Environmental Protection: Available with connector protectors and FluidLoc options

• Interchangeable: Compatible with XL and non-XL 3300 series systems

• Extended Temperature Option: Supports applications up to +260°C

• No Calibration Needed: Designed for full interchangeability

Technical Specifications

FAQ (Frequently Asked Questions)

Q1: What is the function of the 330130-130-02-05 cable?

A1: It connects the proximity probe to the Proximitor sensor, transmitting measurement signals.

Q2: Can this cable be used in high-temperature environments?

A2: Yes, the standard version supports up to 177°C, and the ETR version supports up to 260°C.

Q3: Is it compatible with older 3300 series components?

A3: Yes, it’s backward-compatible with non-XL 3300 5 mm and 8 mm systems.

Q4: Does it need any special tools for installation?

A4: No, the ClickLoc connectors are tool-free and lock with a simple twist.

Q5: Can this extension cable prevent oil leakage?

A5: Yes, when ordered with the FluidLoc option, it prevents fluid migration.

Q6: How secure is the connector?

A6: The ClickLoc design ensures a tight fit that resists loosening under vibration.

Q7: Is the cable armored?

A7: The -02 variant is standard; armored options are available with other codes.

Q8: Can it be used in hazardous areas?

A8: Yes, it is certified for use in various hazardous zones when properly installed.

Q9: What’s the recommended usage in terms of temperature?

A9: Standard usage up to 177°C, extended range up to 260°C with ETR version.

Q10: Is recalibration needed after replacement?

A10: No, components are interchangeable and pre-calibrated to avoid field calibration.
