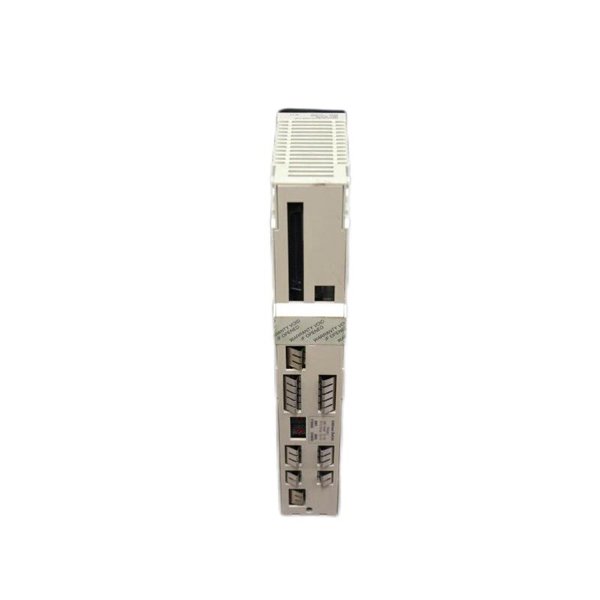

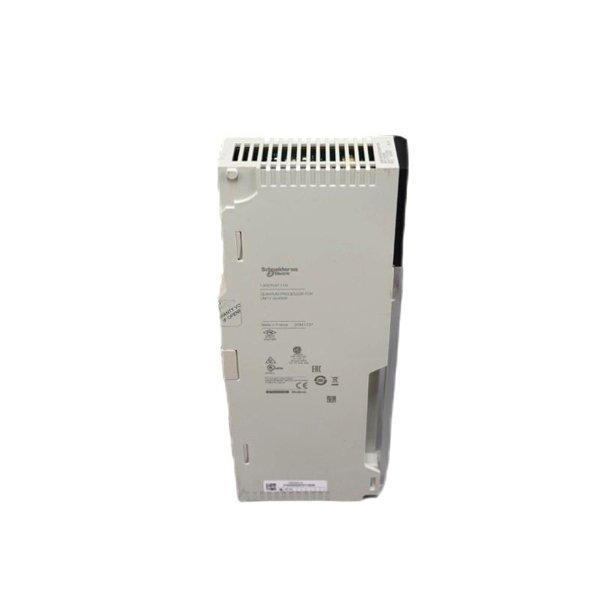

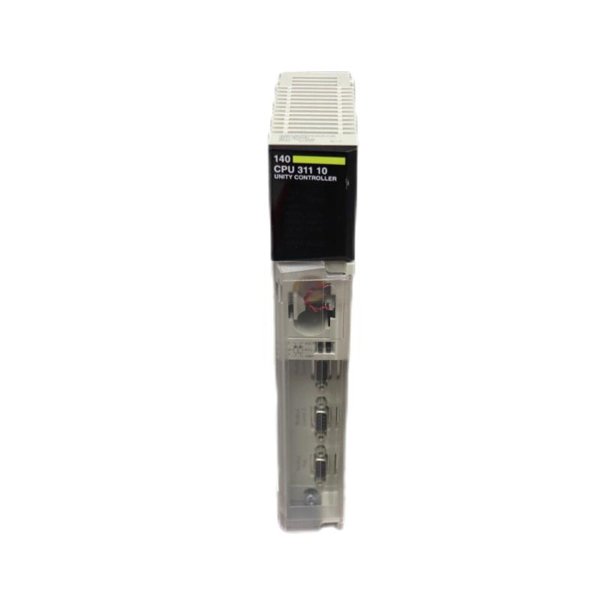

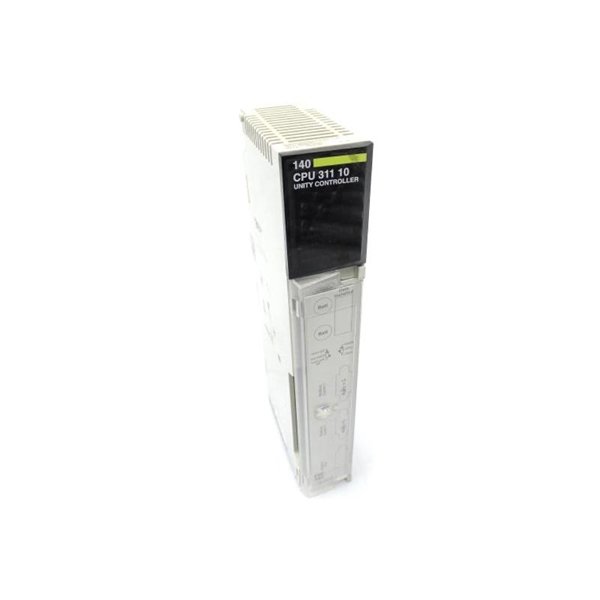

Schneider 140CPU31110 Unity Processor

The Schneider 140CPU31110 Unity Processor is a robust and high-performance programmable logic controller (PLC) from Schneider Electric’s Unity series. Designed for demanding automation and control tasks, this processor provides a powerful solution for managing complex operations across various industries.

The 140CPU31110 features a 32-bit microprocessor that supports high-speed processing and large-scale automation, making it ideal for applications requiring advanced control and precise monitoring. It is part of Schneider Electric’s Unity Pro software environment, allowing users to leverage the latest features in programming, diagnostic tools, and system configuration.

Equipped with extensive communication and I/O options, this processor can be easily integrated into complex control systems. Its high memory capacity, modular design, and compatibility with Schneider’s range of I/O modules make it an excellent choice for a variety of industrial control applications.

Product Specifications

Applications

The Schneider 140CPU31110 Unity Processor is widely used in industrial automation systems for applications requiring high-speed data processing, complex control tasks, and reliable performance. It is ideal for industries that demand flexibility and scalability, such as:

Key Applications

1. Manufacturing Automation: Used to control automated production lines, assembly machines, and robotics systems.
2. Process Control: Applied in industries like chemicals, pharmaceuticals, and food & beverage for process monitoring and control.
3. Energy Management: Helps optimize the use of electrical power in energy-intensive applications.
4. Water Treatment: Manages water and wastewater treatment processes by controlling pumps, valves, and filtration systems.
5. Building Automation: Controls HVAC, lighting, and security systems in commercial and industrial buildings.
6. Material Handling: Used to automate conveyor systems, elevators, and automated storage/retrieval systems (AS/RS).
7. Packaging: Controls the operation of packaging machines, ensuring efficient and precise operations in production lines.
8. HVAC: Regulates the operation of heating, ventilation, and air conditioning systems in large facilities.
9. Transportation Systems: Used to automate traffic control systems, gates, and barriers.
10. Robotics: Used for controlling robotic arms and robotic systems in manufacturing environments.

Advantages

1. High Processing Speed: The 32-bit microprocessor ensures quick processing of control tasks, making it suitable for high-speed operations and real-time control.
2. Expandable and Modular: The processor can be easily expanded with additional I/O modules to accommodate growing or changing application requirements.
3. Flexible Communication Options: It supports various communication protocols including RS-232, RS-485, and Ethernet, allowing seamless integration into existing systems.
4. Large Memory Capacity: With 1 MB of program memory, the 140CPU31110 can handle large-scale applications, ensuring stability and reliability in complex processes.
5. Scalability: Suitable for applications of all sizes, from small control systems to large distributed systems.
6. Advanced Diagnostics: Provides advanced diagnostic tools that help in troubleshooting, ensuring quick resolution of any operational issues.
7. Robust Design: Built to withstand harsh industrial environments, it operates reliably in temperatures ranging from -20°C to +60°C.
8. Easy Programming: Supports multiple programming languages, including Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST), making it versatile for various control system designs.
9. Energy-Efficient: With a low power consumption of just 6 W, the 140CPU31110 is energy-efficient, helping reduce operational costs in the long term.
10. Compliance with Industry Standards: The processor meets CE, UL, and RoHS certifications, ensuring it complies with global safety and environmental standards.
