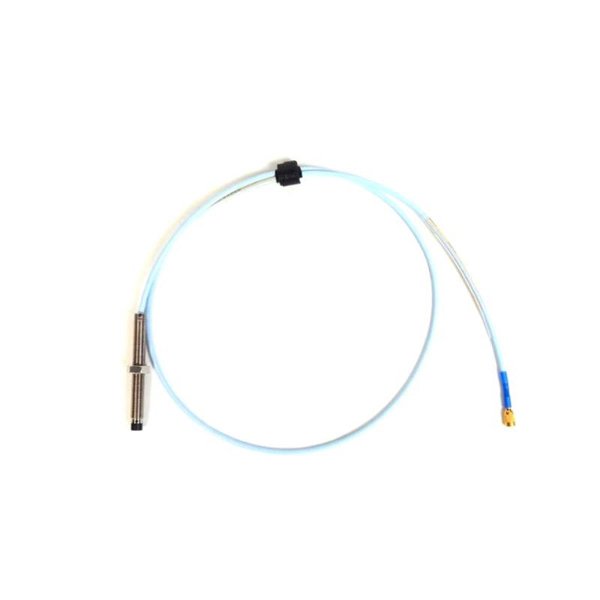

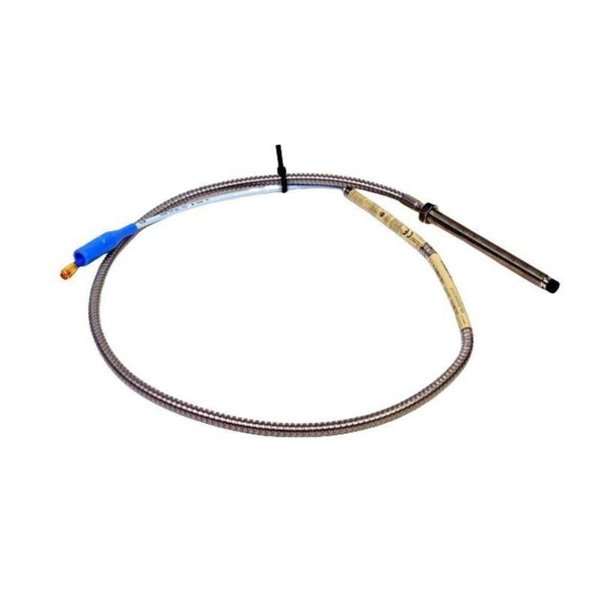

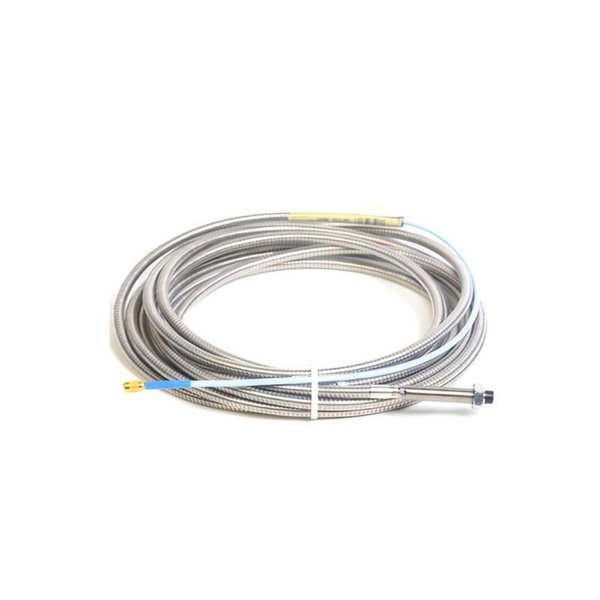

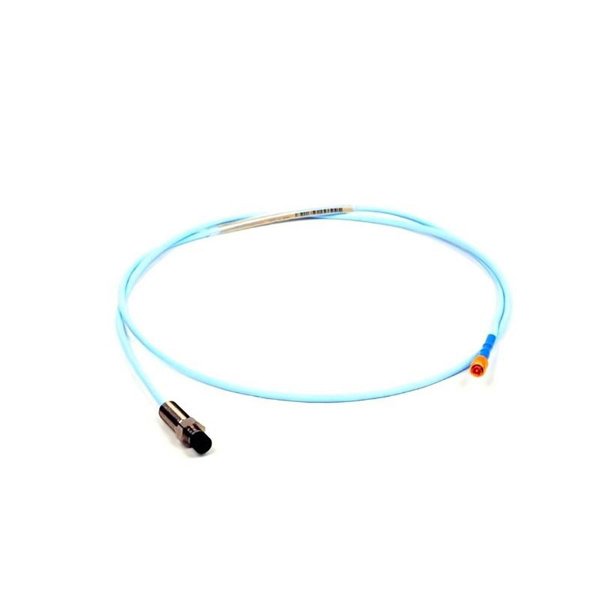

Bently Nevada 330102-00-12-10-02-05 3300 XL 8mm Proximity Probes

The Bently Nevada 330102-00-12-10-02-05 is a high-precision component from the 3300 XL 8mm Proximity Transducer System series, developed by Bently Nevada, a GE-owned brand recognized for its world-class vibration monitoring solutions. This particular model is part of a proximity probe system designed for continuous, non-contact measurement of shaft position and vibration in critical rotating machinery.

The 3300 XL 8mm system is renowned for its rugged design, superior EMI/RFI resistance, and compatibility with API 670 standards. The probe works seamlessly with matching extension cables and proximitor sensors to form a complete monitoring loop for proximity and vibration analysis, making it a foundational part of condition monitoring systems across industries.

Product Specifications

Product Applications

The 330102-00-12-10-02-05 proximity probe is utilized extensively in:

• Steam and Gas Turbines

  Monitoring shaft vibration and axial position to prevent catastrophic failures.

• Compressors and Expanders

  Ensures stable operation through precise monitoring of rotating components.

• Pumps and Motors

  Provides early fault detection by measuring dynamic shaft movement.

• Gearboxes and Generators

  Critical for predictive maintenance strategies in mechanical drive systems.

• Refinery and Petrochemical Plants

  Forms part of safety shutdown systems governed by API 670.

• Power Plants and Industrial Manufacturing

  Used for high-value asset protection and process reliability assurance.

Product Advantages

• Exceptional Accuracy and Sensitivity

  Delivers precise measurements even in challenging industrial environments.

• API 670 Compliance

  Fully adheres to industry standards for machinery protection.

• Enhanced RFI/EMI Resistance

  Stable signal integrity even in electrically noisy environments.

• High-Temperature Tolerance

  Reliable performance up to 177°C, suitable for turbine environments.

• Field-Proven Durability

  Stainless steel housing and rugged construction for long service life.

• Modular and Interchangeable

  Compatible with other 3300 XL components, simplifying inventory and maintenance.

• Wide Application Versatility

  Suitable for virtually any rotating machinery setup requiring non-contact vibration sensing.

Frequently Asked Questions (FAQ)

1. Q: What does the model number 330102-00-12-10-02-05 specify?

   A: It identifies specific parameters such as total length (1.0 meter), connector type, and thread type.

2. Q: Can this probe be used with other Bently Nevada proximitor sensors?

   A: Yes, it is designed to work specifically with 3300 XL series proximitor sensors.

3. Q: Is this probe compatible with API 670 specifications?

   A: Yes, the 3300 XL 8mm system is designed to meet and exceed API 670 requirements.

4. Q: What is the maximum operating temperature?

   A: Up to +177°C, allowing installation in high-heat environments like turbines.

5. Q: Can it measure both static and dynamic shaft motion?

   A: Yes, it measures static position and dynamic vibration (radial and axial).

6. Q: What target material is required for accurate readings?

   A: Standard calibration is done using AISI 4140 steel; other materials require re-calibration.

7. Q: How is the probe mounted?

   A: It can be mounted using a threaded port or bracket based on the machinery design.

8. Q: What is the typical output sensitivity?

   A: 200 mV/mil (7.87 mV/μm), with a linear range of 2 mm.

9. Q: Can the cable be replaced in the field?

   A: Yes, the probe and extension cable are separate components and can be individually replaced.

10. Q: Is this probe suitable for hazardous environments?

    A: Yes, when installed with certified proximitor and cable, it supports hazardous area applications.
