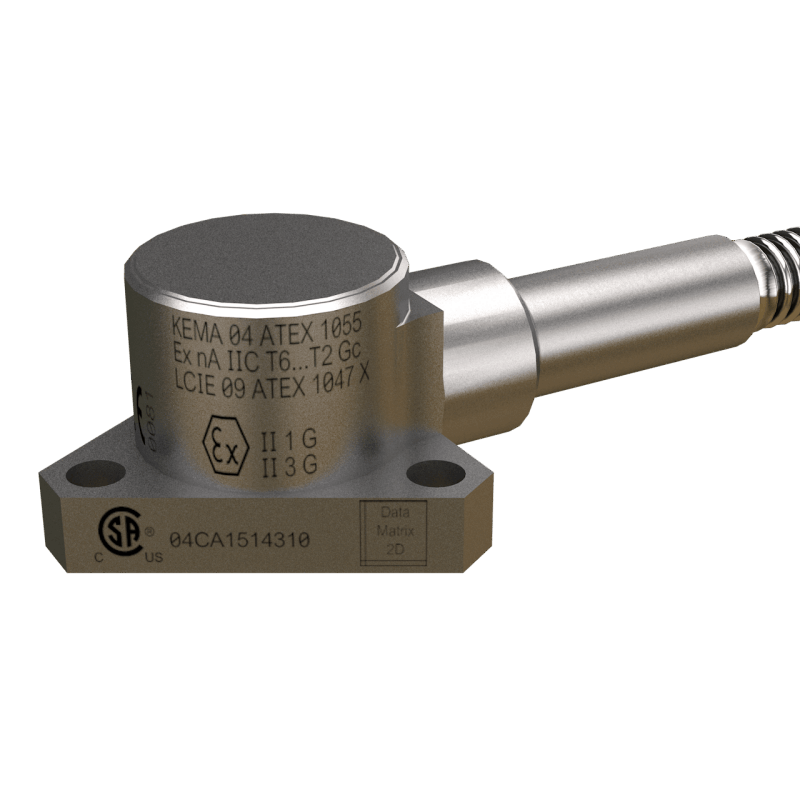

Vibro-Meter CA280 144-280-000-015 Piezoelectric Accelerometer
Item Number: CA280 144-280-000-015
Brand:Vibro-Meter
Lead Time: In stock
Description: Piezoelectric Accelerometer
Payment: T/T
Product Description

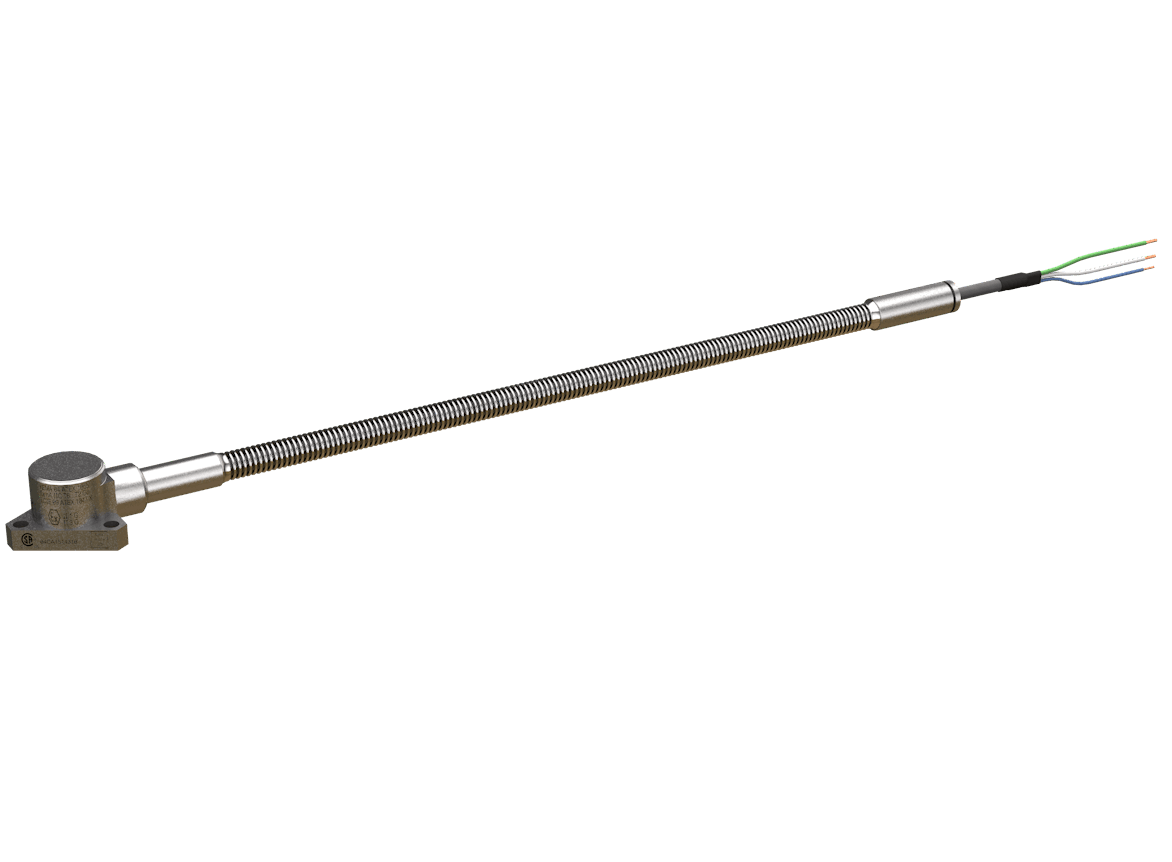

The CA280 144-280-000-015 piezoelectric accelerometer features a symmetrical shear mode measuring cell with internal housing insulation in AISI 316L stainless steel. The accelerometer is available in two versions: sensor only or with an integral low noise cable (the cable is sealed by a flexible stainless steel protective hose and terminated with flying leads). The sensor and protective hose are hermetically welded to form a leak-proof assembly with a choice of cable lengths; the sensor only version can be combined with different cable assemblies depending on the environmental/temperature requirements of the application.
Function & Features
- With a sensitivity of 100 pC/g, the CA280 144-280-000-015 can accurately capture weak vibration signals.
- The CA280 144-280-000-015 uses a symmetrical shear mode measuring element combined with internal housing insulation and differential output.
- The CA280 144-280-000-015 housing is made of AISI 316L stainless steel and is hermetically welded to adapt to harsh environments.
- The CA280 144-280-000-015 is available in a sensor-only version and a version with an integrated cable, with reasonable cable protection and terminal design (flexible stainless steel protective hose seal, flying lead terminal).
Specifications
|
Parameter |
Details |
|
Model |
CA280 144-280-000-015 |
|
Resonant frequency (mounted) |
20 kHz nominal |
|
Frequency response - 0.5 to 6000 Hz |
±5% (the lower cutoff frequency is determined by the conditioner used) |
|
Frequency response - Typical deviation at 10 kHz |
+10% |
|
Internal insulation resistance |
Min. 10⁹ Ω at 23°C (73°F) |
|
Capacitance (nominal) - Sensor - pole to pole |
7000 pF |
|
Capacitance (nominal) - Sensor - pole to casing |
15 pF |
|
Capacitance (nominal) - Cable - pole to pole |
105 pF |
|
Capacitance (nominal) - Cable - pole to casing |
210 pF |
FAQ
Q: What is the brand?
A:Spare
Q: What is the type?
A:Piezoelectric Accelerometer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
