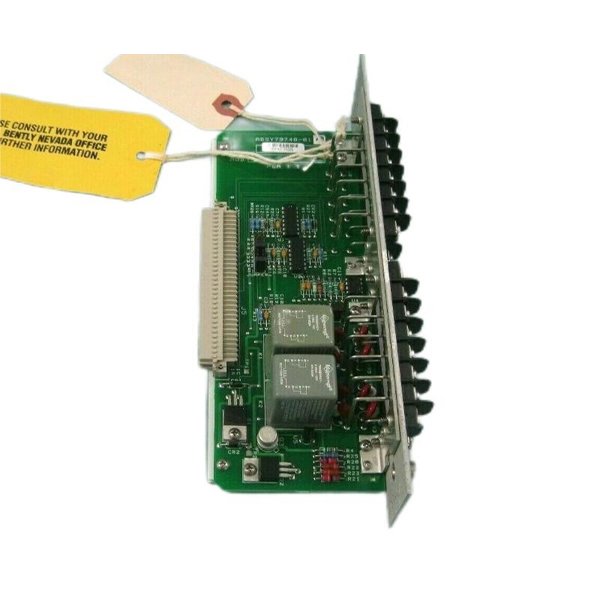

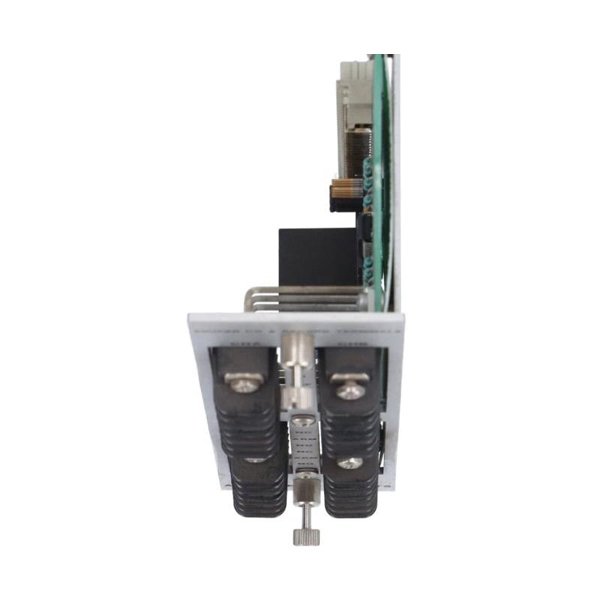

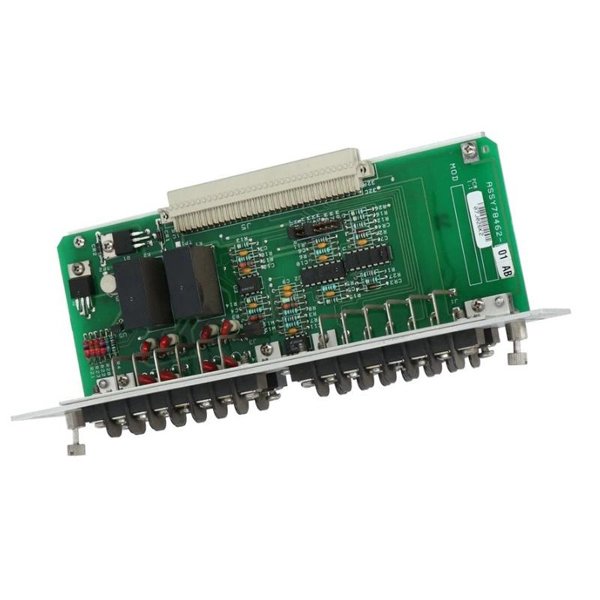

Bently Nevada 81546-01 XDUCR I/O and Recording Terminals

The Bently Nevada 81546-01 XDUCR I/O and Recording Terminals are passive interface modules designed for clean and organized transmission of dynamic signals from vibration transducers—such as proximity probes, velocity pickups, and accelerometers—to Bently Nevada monitoring or recording systems. This specific model does not include relay outputs, making it ideal for applications that prioritize condition monitoring and data acquisition without the need for alarm or trip actuation.

The 81546-01 provides reliable signal routing in systems where protection relays are either handled separately or not required. It is commonly used in centralized monitoring systems such as the Bently Nevada 3300 or 3500 series, offering straightforward installation, robust performance, and exceptional signal integrity.

Key Features

• Non-relay configuration: Designed for signal interfacing and recording only

• Compatible with multiple transducer types, including proximity, velocity, and acceleration sensors

• DIN rail mountable for easy integration into control and monitoring panels

• Terminal block connections simplify field wiring and maintenance

• Optimized for low-noise signal transmission and EMI/RFI protection

• Passive design: No power supply required, increasing reliability

• Industrial-grade construction for long-term durability

• Supports clean signal routing for real-time monitoring and analysis

• CE and RoHS compliant for global installations

Technical Specifications

Industry Applications

The 81546-01 module is best suited for installations that require accurate, low-noise vibration signal transmission without relay switching or alarm control. Applications include:

• Oil & Gas: Compressor, turbine, and pump signal routing in upstream and downstream facilities

• Power Generation: Signal distribution for generator and auxiliary equipment vibration sensors

• Chemicals & Petrochemicals: Condition monitoring in hazardous and non-critical applications

• Water & Wastewater: Pump and blower signal transmission to SCADA systems

• Steel & Mining: Monitoring of high-vibration rotating machinery like crushers and conveyors

• OEM Machinery Skids: Modular integration into packaged equipment for monitoring

Product Advantages

• Clean Signal Transmission: Ensures signal fidelity from transducer to monitoring system

• No Relays: Simplifies module function and reduces cost for non-trip applications

• Passive and Reliable: No active components to fail; long service life

• Industrial Compatibility: Works with Bently Nevada 3300, 3500, and other monitoring systems

• EMI-Resistant Design: Shielding reduces interference in high-noise industrial environments

• Flexible Integration: Ideal for distributed monitoring architectures

• Compact & Modular: Saves panel space and is easy to replace or upgrade

• Low Maintenance: No calibration or power considerations needed

Frequently Asked Questions (FAQ)

1. What is the function of the 81546-01 module?

It acts as an I/O and signal recording terminal, routing transducer signals to monitoring systems without any relay functionality.

2. What types of sensors are supported?

It supports Bently Nevada proximity probes, velocity pickups, and IEPE accelerometers.

3. Are relays included in this model?

No. The 81546-01 is specifically a non-relay version focused on signal interfacing only.

4. Does the module require a power supply?

No, it is a passive device and requires no external power.

5. Is this module compatible with Bently Nevada 3500 systems?

Yes, it is fully compatible and commonly used with the 3300 and 3500 series systems.

6. Can I mount this module on a DIN rail?

Yes, it is designed for DIN rail installation in standard control cabinets.

7. What is the difference between 81546-01 and 81544-01 or 81545-01?

While all are I/O modules without relays, the model numbers typically indicate mechanical design or compatibility with specific system layouts.

8. Can this module be used in safety-critical applications?

It can be used for monitoring in such applications, but not for direct trip or protection control.

9. Is this product rated for outdoor use?

No, it should be installed inside a protective electrical enclosure or panel.

10. Can I use this to connect directly to a PLC?

It depends on the signal type and PLC input requirements; typically, signals are routed through Bently Nevada monitors or conditioning modules first.
