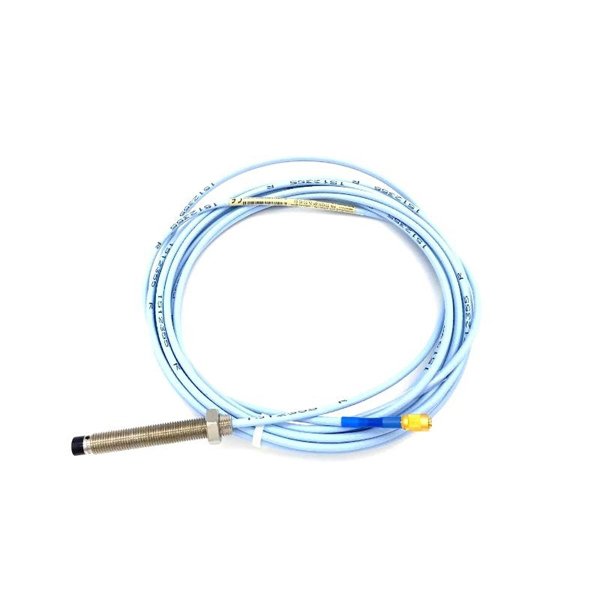

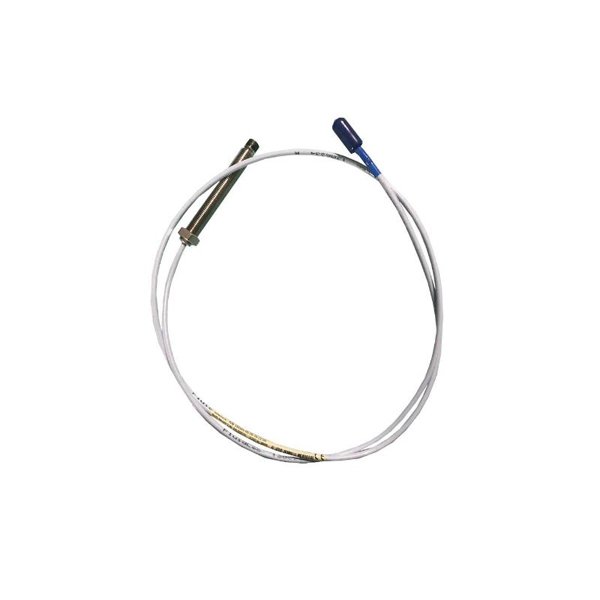

Bently Nevada 330103-00-05-90-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-05-90-02-00 is an 8 mm proximity probe from the 3300 XL series, designed to provide accurate vibration and displacement monitoring in industrial machinery. Specifically designed for rotating equipment such as turbines, motors, pumps, and compressors, this probe offers high precision in non-contact measurement, making it ideal for machine health monitoring.

With a total length of 9.0 meters and a weight of 2.907 kg, this probe is suitable for large machinery and high-performance applications, ensuring that operators can maintain control over critical systems. The probe’s eddy current technology delivers continuous, real-time data for vibration measurement, providing vital insights into machine condition.

The 3300 XL series from Bently Nevada is renowned for offering precise measurement capabilities, durability, and ease of integration with other monitoring systems, enhancing the reliability and performance of rotating machinery across industries like power generation, oil & gas, and manufacturing.

Product Specifications

Applications

The Bently Nevada 330103-00-05-90-02-00 proximity probe is widely used across multiple industries for its high precision and durability:

1. Power Generation: Vital for monitoring rotating machinery such as turbines, generators, and pumps in power plants.

2. Oil & Gas: Used in compressors, pumps, and motors within offshore platforms and refineries to ensure operational safety.

3. Mining: Used in machinery like crushers, mills, and shakers to track the displacement and vibration levels in heavy-duty mining operations.

4. Manufacturing: In automated production lines and robotic arms, it helps detect early signs of wear and malfunction, preventing expensive downtime.

5. Aerospace: For critical monitoring of aircraft turbines and engine components, ensuring smooth operation and safety in aerospace applications.

6. Automotive: Monitoring components like engine balancers and robotic assembly systems in the automotive industry to ensure precise machine operation.

7. HVAC Systems: Ensures proper operation of ventilators, blower fans, and compressor units in HVAC systems, reducing maintenance needs and increasing system longevity.

8. Pharmaceutical & Chemical: Applied in mixing and blending equipment to monitor critical machinery in sensitive environments.

Product Advantages

1. Non-Contact Measurement: The eddy current technology enables non-contact displacement measurement, which eliminates physical wear on the sensor and increases the probe’s operational lifespan.

2. High Precision: With an 8 mm diameter and precise displacement measurement of ±0.1 mm, it delivers accurate readings even under challenging conditions.

3. Large Measurement Range: Its 9.0 meter total length allows the probe to cover large-scale machinery setups, providing flexibility for a range of applications.

4. Durability in Harsh Environments: Constructed from high-durability stainless steel, it’s built to withstand harsh environments, including high vibration, extreme temperatures, and exposure to industrial contaminants.

5. Wide Temperature Range: The probe operates efficiently in temperatures ranging from -40°C to +85°C, making it suitable for diverse applications, including high-temperature systems.

6. IP65 Protection: With an IP65 rating, the probe is dust-tight and water-resistant, protecting it from industrial contaminants and ensuring reliable performance in challenging environments.

7. Minimal Maintenance: The non-contact nature of the probe means there’s minimal physical wear, reducing maintenance costs and ensuring long-term reliability.

8. Global Support Network: Bently Nevada offers a global support network, ensuring that users have access to technical assistance and service wherever they are located.

9. Preventative Maintenance: By continuously monitoring displacement and vibration levels, the probe helps identify issues early, enabling timely maintenance and reducing the risk of unplanned downtime.

10. Easy Integration: The 3300 XL series probes easily integrate with other Bently Nevada monitoring systems, providing a comprehensive and cohesive monitoring solution.

FAQs

1. What is the diameter of the Bently Nevada 330103-00-05-90-02-00 probe?

   The probe has an 8 mm diameter.

2. What is the total length of the Bently Nevada 330103-00-05-90-02-00 probe?

   The total length of the probe is 9.0 meters.

3. What is the weight of the Bently Nevada 330103-00-05-90-02-00 probe?

   The probe weighs 2.907 kg.

4. What is the operating temperature range of the Bently Nevada 330103-00-05-90-02-00 probe?

   The probe operates in temperatures ranging from -40°C to +85°C.

5. What does the IP65 rating indicate?

   The IP65 rating means the probe is dust-tight and protected against water jets, making it suitable for harsh industrial environments.

6. How does the eddy current measurement work?

   Eddy current technology allows for non-contact displacement measurement, using electromagnetic fields to detect changes in the position of machinery parts.

7. Can the Bently Nevada 330103-00-05-90-02-00 probe be used in explosive environments?

   This probe is designed for general industrial applications and may require additional certifications for use in explosive environments, depending on the specific regulations.

8. What types of machines can be monitored with this probe?

   The 3300 XL probe is ideal for monitoring rotating equipment such as turbines, compressors, motors, pumps, and more.

9. How do I integrate this probe with my existing monitoring system?

   The probe is easily integrated into existing Bently Nevada vibration monitoring systems, offering a seamless monitoring solution for machine health.

10. How often should the Bently Nevada 330103-00-05-90-02-00 probe be calibrated?

    Regular calibration is recommended to ensure accurate readings. Depending on your operational environment, the probe may need to be calibrated annually or semi-annually.
