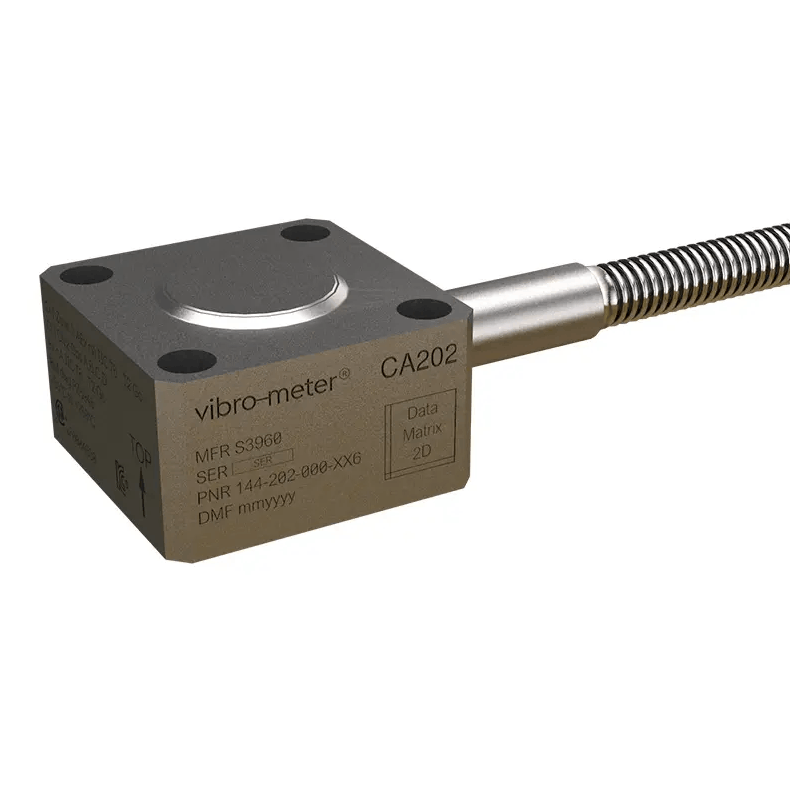

Vibro-Meter CA202 144-202-000-203 Piezoelectric Accelerometer
Item Number:CA202 144-202-000-203
Brand: Vibro-Meter
Lead Time: In stock
Description:Piezoelectric Accelerometer
Payment: T/T
Product Description

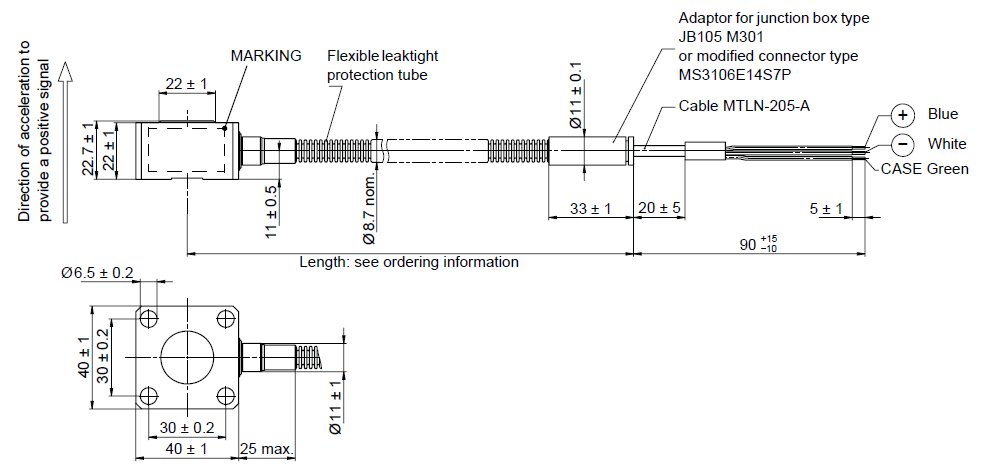

CA202 144-202-000-203 piezoelectric accelerometer is a vibration accelerometer using piezoelectric sensing technology. This product generates charge output signals through piezoelectric crystals and needs to be used with an external charge amplifier (such as IPC707 signal conditioner) to convert the charge signal into a standard voltage/current signal. Symmetrical shear measurement structure, the cable configuration is an integral soft cable + stainless steel bellows protection.
Function & Features
Extreme environment adaptability
- Wide temperature range working capability: -55°C to +260°C (-67°F to 500°F)
- Explosion-proof certified design: Certified for hazardous areas (ATEX/IECEx)
- Fully sealed structure: IP68 protection level, resistant to oil and dust
Precision vibration monitoring
- High-sensitivity charge output: 100 pC/g (±5% tolerance)
- Ultra-wide range coverage: 0.01g~400g (0.0981~3924 m/s²)
- Excellent linearity: ±1% (typical)/±2% (maximum)
Sensor technology
- Shear-type polycrystalline piezoelectric element:
- Symmetrical structure design to eliminate thermal transient effects
- Internal shell insulation, base strain sensitivity <0.1×10⁻³ g/µε
- Transverse sensitivity ≤3% to ensure axial measurement accuracy
Specifications
|
Parameter |
Specification |
|
Part Number |
CA202 144-202-000-203 |
|
Output Type |
Charge (2-wire) |
|
Sensitivity |
100 pC/g |
|
Operating Temperature |
-67 to 500°F (-55 to 260°C) |
|
Frequency Response |
Up to 6000 Hz |
|
Sensitivity Tolerance |
±5% |
|
Dynamic Measurement Range |
0.01 to 400 g (0.0981 to 3924 m/s²) |
|
Linearity |
±1% and ±2% |
|
Transverse Sensitivity |
≤3% |
|
Resonant Frequency |
20 kHz |
|
Base Strain Sensitivity |
<0.1×10⁻³ g/µε |
Notes
※ Must be used with a dedicated charge amplifier (IPC707 model recommended)
※ Ensure that the metal housing is well grounded during installation
※ Stainless steel bellows can be customized in length (standard configuration 2 meters)
This product is particularly suitable for vibration monitoring systems in high-temperature and high-risk scenarios such as power plants and refineries, with an MTBF index of more than 80,000 hours.
FAQ
Q: What is the brand?
A: Spares
Q: What is the type?
A:Piezoelectric Accelerometer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
