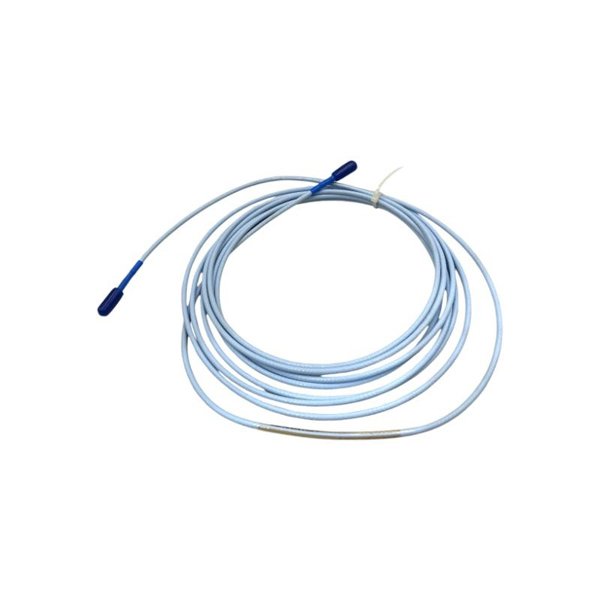

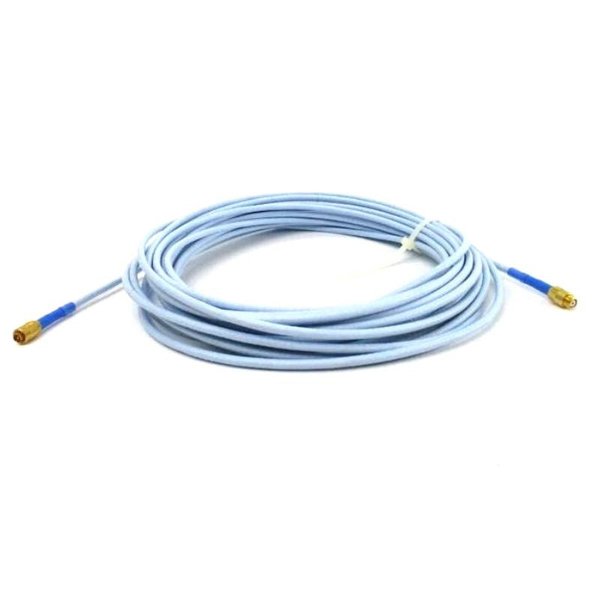

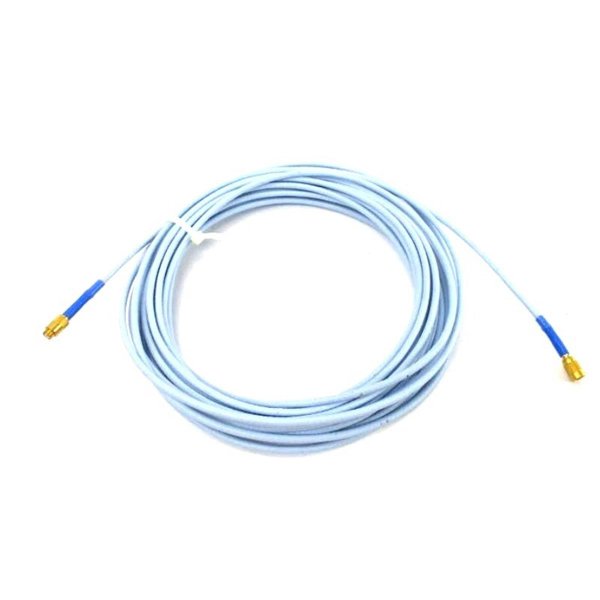

Bently Nevada 330130-085-00-AZ 3300 XL Standard Extension Cable
Manufacturer:Bently Nevada
Product Number:330130-085-00-AZ
Product Type:3300 XL Standard Extension Cable
Origin:USA
Cable Length:8.5 meters
Weight:0.289 kg
Views:110
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330130-085-00-AZ is an 8.5-meter standard extension cable used in the 3300 XL 8 mm Proximity Transducer System. This cable links the proximity probe to the Proximitor Sensor, enabling accurate static and dynamic measurements such as shaft position and vibration.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330130-085-00-AZ |
| Product Type | Standard Extension Cable |
| Length | 8.5 meters |
| Weight | 0.289 kg |
| Capacitance | 69.9 pF/m (typical) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Minimum Bend Radius | 25.4 mm (1 inch) |
| Connector Type | Gold-plated ClickLoc miniature coaxial connectors |
| Connector Torque | 0.565 N·m (5 in·lbf) |
| DC Resistance (Core) | 1.87 ± 0.28 Ω |
| DC Resistance (Jacket) | 0.56 ± 0.11 Ω |
| Operating Temperature Range | -52°C to +177°C (Standard) |
| Armor Option | Optional (not standard in this model) |
| Compliance | CSA, ATEX, IECEx certified options available |
Applications
-
Industrial rotating machinery monitoring
-
Shaft vibration and position detection
-
Keyphasor® speed and phase reference systems
-
Turbomachinery health diagnostics
-
API 670 compliant monitoring systems
Advantages
-
ClickLoc™ connectors ensure secure, finger-tight, tool-free installation
-
Standardized length (8.5 m) supports plug-and-play system compatibility
-
High durability with 330 N tensile strength between probe and cable
-
Backward compatibility with legacy 3300 5 mm and 8 mm systems
-
FluidLoc option (available variant) prevents fluid ingress
-
Excellent EMI/RFI immunity when used with 3300 XL Proximitor sensors
FAQ
Q1: What is the total length of the 330130-085-00-AZ extension cable?
A1: The cable is 8.5 meters long.
Q2: Can this cable be used with non-XL systems?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: Is the cable armored?
A3: No, this specific variant (00-AZ) is a standard cable without armor.
Q4: What is the operating temperature range of this cable?
A4: -52°C to +177°C for the standard version.
Q5: What is the weight of the cable?
A5: Approximately 0.289 kg.
Q6: Are connector protectors included?
A6: Not by default. They can be ordered separately or as part of another variant.
Q7: What is the typical cable capacitance?
A7: 69.9 pF per meter.
Q8: Does the cable require special tools for installation?
A8: No, the ClickLoc connectors are designed for tool-free finger-tight installation.
Q9: Can this extension cable be used in hazardous areas?
A9: Yes, certified versions are available with CSA, ATEX, and IECEx approvals.
Q10: What is the minimum bend radius for installation?
A10: 25.4 mm (1.0 inch).
