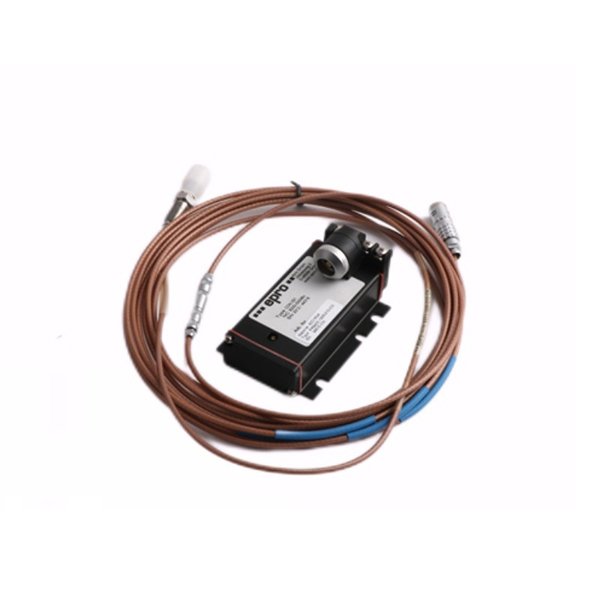

Epro PR6423/002-001-CN+CON021 8mm Eddy Current Sensor

The Epro PR6423/002-001-CN combined with the CON021 converter is a robust, industrial-grade eddy current sensor system developed for high-precision, non-contact displacement and vibration measurements. Specifically designed to monitor rotating machinery such as turbines, compressors, motors, and pumps, this 8mm probe provides real-time data crucial for predictive maintenance and machinery protection in demanding environments.

This particular model – PR6423/002-001-CN – offers an 8mm probe tip diameter and is optimized for metallic surface monitoring. It integrates seamlessly with the CON021 converter, which conditions and amplifies the sensor signal, delivering accurate voltage output proportional to the distance between the probe and the monitored surface. The probe is tailored for Chinese specifications (hence the “CN” suffix), ensuring compliance with local standards and industrial compatibility.

Technical Specifications

Applications

The Epro PR6423/002-001-CN + CON021 system is widely deployed in critical industrial sectors that demand real-time monitoring of dynamic and rotating machinery. Typical applications include:

• Steam and Gas Turbines – Shaft vibration monitoring for early fault detection.

• Centrifugal Compressors – Monitoring bearing movement and shaft displacement.

• Pumps and Motors – Ensuring balance and alignment during operation.

• Gearboxes – Vibration and wear monitoring of internal components.

• Machine Tool Spindles – High-resolution measurement for process stability.

• Petrochemical Equipment – Machinery diagnostics in hazardous environments.

Advantages

• High Precision Monitoring: Designed for accurate, non-contact measurement of vibration and displacement in harsh industrial conditions.

• Robust Construction: Stainless steel housing ensures corrosion resistance and mechanical durability.

• Modular Integration: Compatible with various monitoring systems, especially Epro MMS6000 and VM600 series.

• Wide Operating Range: Withstands extreme temperature and pressure, ideal for field deployment.

• Standard Compliance: Meets global and Chinese industrial standards for safety and compatibility.

• Long-Term Stability: Maintains calibration and accuracy over time with minimal drift.

• Versatile Mounting Options: Flexible thread and length variants available for different machinery layouts.

Frequently Asked Questions (FAQ)

1. What is the primary function of the PR6423/002-001-CN sensor?

   It provides non-contact displacement and vibration measurements for rotating machinery, enabling real-time condition monitoring.

2. Can this sensor be used in high-temperature environments?

   Yes. The probe operates up to 180°C, and the CON021 converter works up to 85°C.

3. Is the sensor intrinsically safe for hazardous areas?

   Intrinsically safe versions are available; check compatibility with hazardous area certifications like ATEX.

4. How long is the standard cable length?

   The standard is 5 meters, but other lengths (up to 10m or more) can be ordered.

5. What monitoring systems is it compatible with?

   It integrates with Epro MMS6000, VM600 systems, and many third-party vibration monitoring units.

6. How is calibration performed?

   The sensor is factory-calibrated; field calibration is rarely required but possible using a micrometer fixture.

7. What is the sensitivity of the PR6423/002-001-CN?

   It provides a sensitivity of approximately 7.87 mV/μm.

8. Can I replace only the probe or the converter if one fails?

   Yes, the modular design allows for individual replacement.

9. What type of mounting thread does it use?

   It uses an M10 x 1 thread for installation.

10. Does it support dynamic signal measurement?

    Yes, the sensor supports high-frequency response up to 10 kHz.
