CE281 444-281-000-111 Piezoelectric Accelerometer
Item Number:CE281 444-281-000-111
Brand: Vibro-Meter
Lead Time: In stock
Description:Piezoelectric accelerometer
Payment: T/T
Product Description

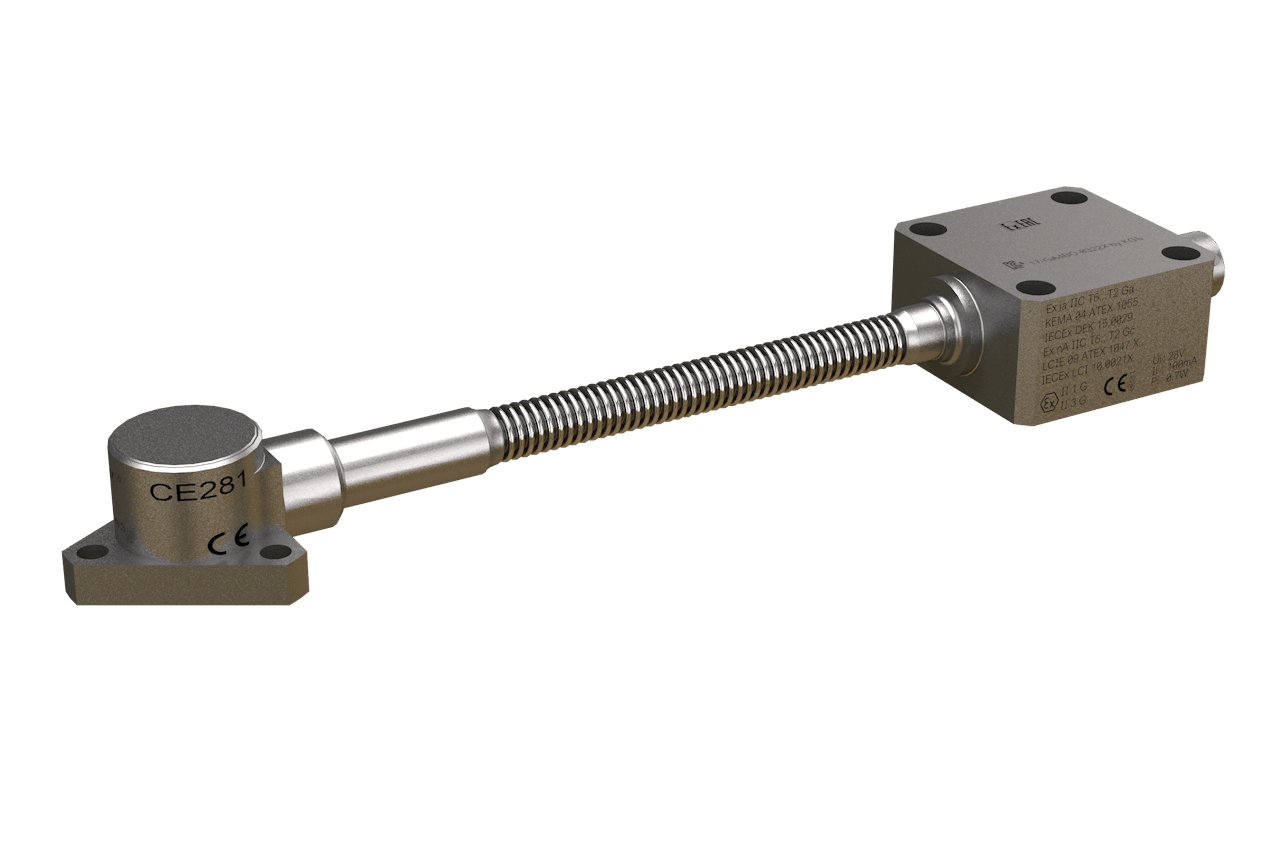

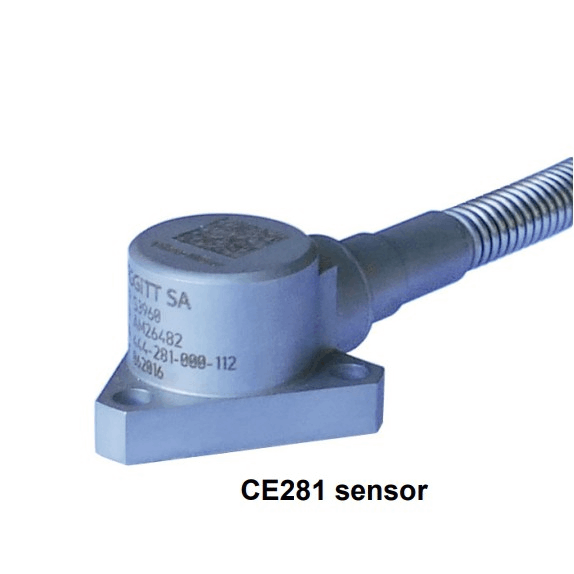

CE281 444-281-000-111 is a piezoelectric accelerometer based on shear-mode design. It uses polycrystalline material as the core sensing element. The sensor is sealed and connected to the electronic component housing through a low-noise shielded cable and protected by a stainless steel hose to form a fully sealed system that can resist contaminants such as coolant, lubricant, water, and steam. It is suitable for long-term monitoring of the vibration status of industrial equipment..
Function & Features
- Integrally Attached Electronics：CE281 444-281-000-111 has built-in signal processing circuit, no external charge amplifier is required and provides current modulated output signal.
- Hermetically Sealed: The sensor head, protection tube (stainless steel hose) and electronic housing of CE281 444-281-000-111 are laser-sealed to prevent the intrusion of contaminants such as coolant, lubricating oil, water vapor, etc.
- Shear-Mode Measuring Element: CE281 444-281-000-111 adopts centrosymmetric shear mode piezoelectric element, made of polycrystalline material.
Specifications
|
Parameter |
Specification |
| Model | CE281 444-281-000-111 |
|
Sensitivity |
10 μA/g ±5% |
|
Dynamic measurement range (sensor head only) |
0.0001 to 200 g PEAK |
|
Overload capacity (spikes) (sensor head only) |
Up to 2000 g PEAK |
|
Linearity |
±1% over dynamic measurement range |
|
Transverse sensitivity |
< 3% (measured at 15 Hz with 5 g) |
|
Resonant frequency (mounted) |
25 kHz typ. |
|
Frequency response |
≤±5% between 3 and 7000 Hz |
FAQ
Q: What is the brand?
A: Spare
Q: What is the type?
A:Piezoelectric accelerometer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
